Scala | V7 | Display Configuration

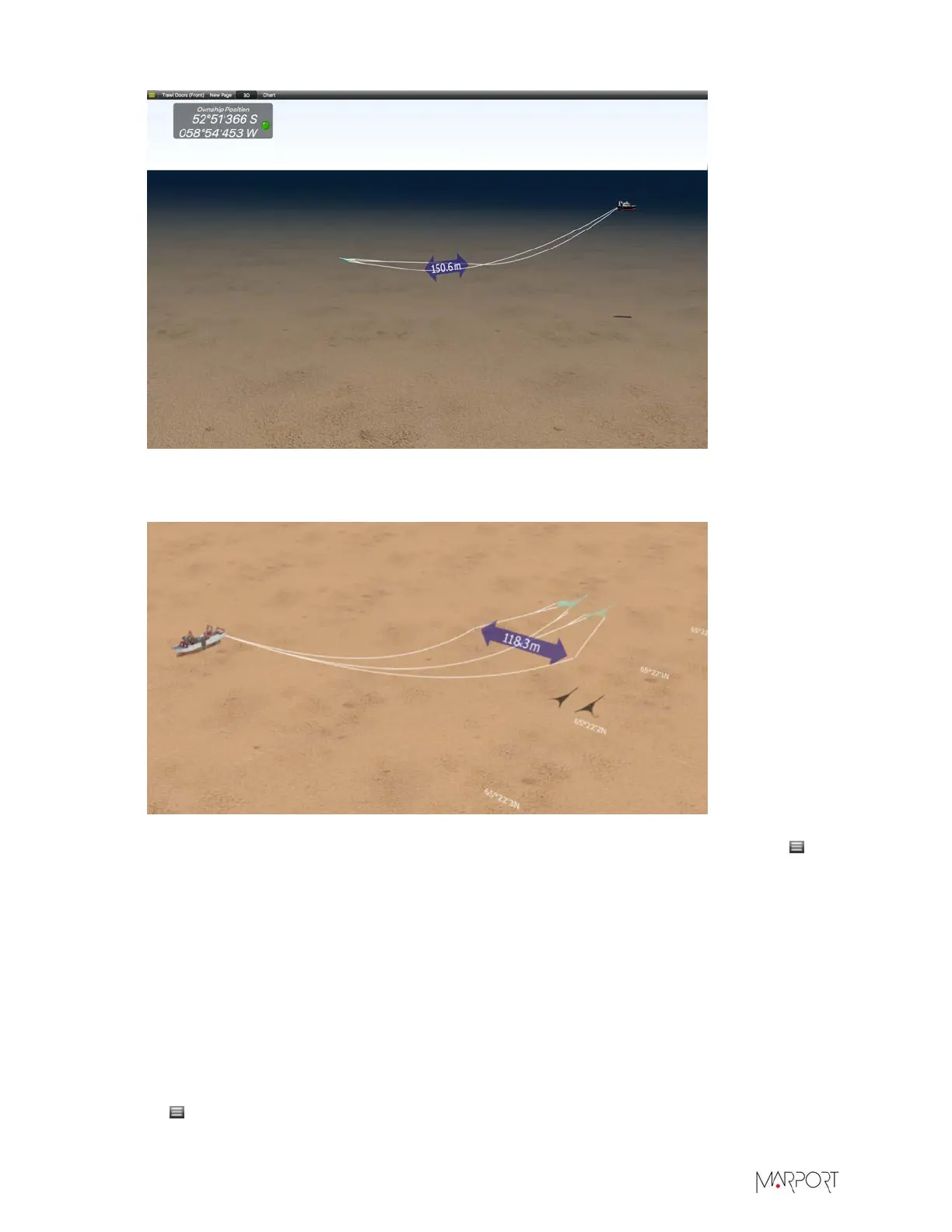

If you have twin trawls, you can see it on the 3D view as well. Make sure you have configured
twin trawls in the receiver settings.
4.
To change the vessel 3D model, from the upper left corner of the screen click Menu >
Settings and click the Ownship tab.
5.
To change the view, you can use the numeric keypad: press 5 to see the vessel from above, press
the digits around to make the vessel turn accordingly (2 being front view and 8 back view).
6.
Or, right-click the 3D view and choose:
•
Moves Camera with to select which part of the system the camera follows.
•
Reset Camera Position to come back to the default view.
•
Fix Camera on Ownship so that the camera moves with the vessel.
What to do next
When you have finished customizing pages, you need to deactivate the Customize mode: click
Menu > Customize again.
| 106
