• clump and starboard door.
You can know if the clump is centered when the yellow dashed line is above the red and green
lines.
Note: Right-click the diagram and click Single Trawl Spread Plot if you need to switch to
single trawl.
3.

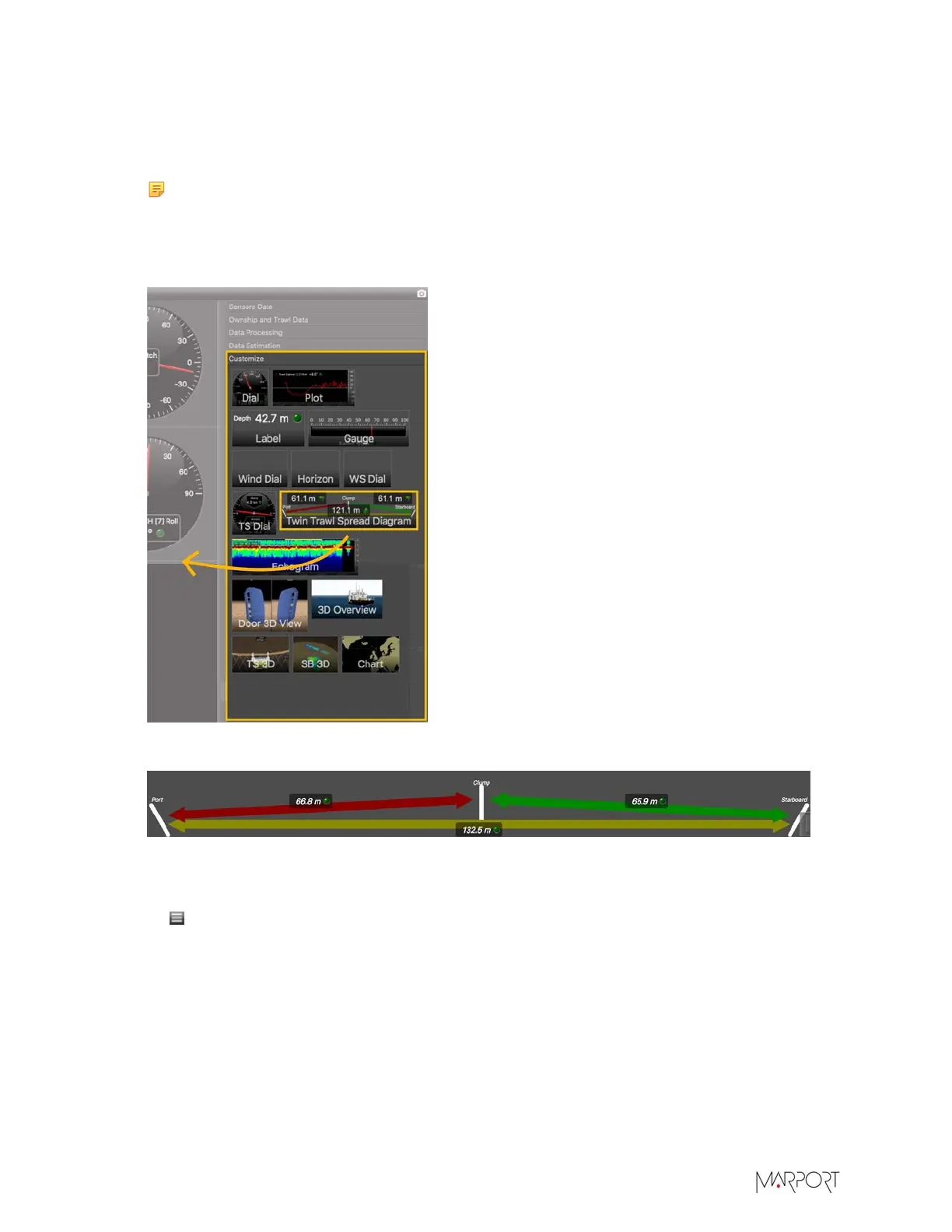

You can also find the diagram for triple distance in the control panels: click Customize, then
drag the Twin Trawl Spread Diagram to the page.
The diagram is displayed.
What to do next
When you have finished customizing pages, you need to deactivate the Customize mode: click
Menu > Customize again.
3D Views
You can display 3D views of different elements from the system, for example the trawl doors or
trawl speed sensors.
Displaying Trawl Door 3D View
You can display a 3D view of the trawl doors and clump. This way, you can see the positioning of
the doors and clump.
