Scala | V7 | Display Configuration
Displaying Vessel System 3D View
You can display a 3D overview of the vessel system if you have the Scala Full version. To know if
you have the 3D enabled, check in Menu > About Scala.
Before you begin
You must be in Customize mode to do this task.
You need to have incoming data from:
• GPS (position, heading)
• Sensors with positioning
• Warp lengths or Slant Range sensors giving distance to vessel
Procedure
1.
From the lower part of the control panels, click Customize.
The Customize panel appears.
2.
Open the customization panel and go to the Geographic tab.
3.

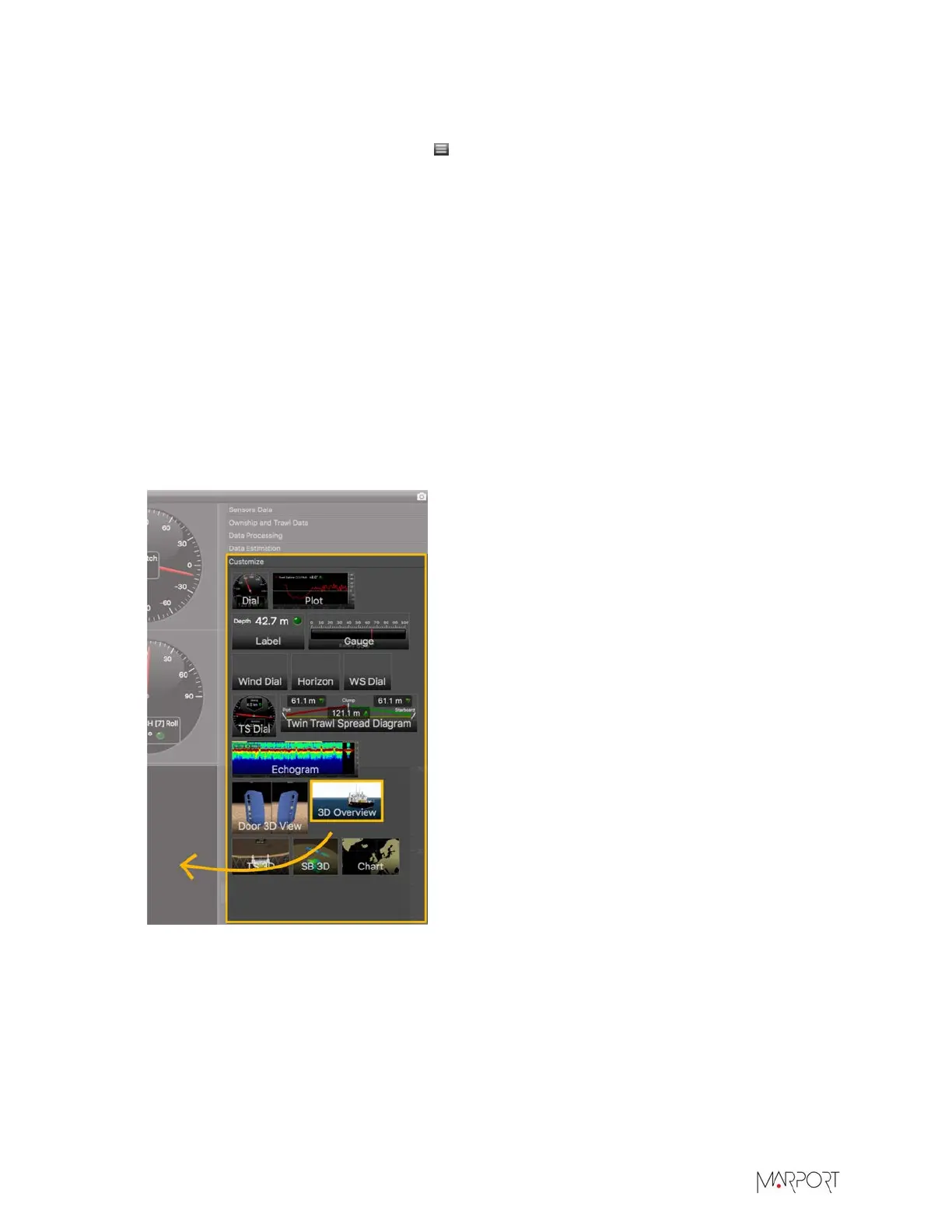

Click + drag the 3D Overview to the page.
A 3D view of the vessel and trawl is displayed.
