Scala | V7 | Display Configuration
Before you begin
You must be in Customize mode to do this task.
Procedure
1.
Open the drawer on the right side of the screen to display the control panels.
2.

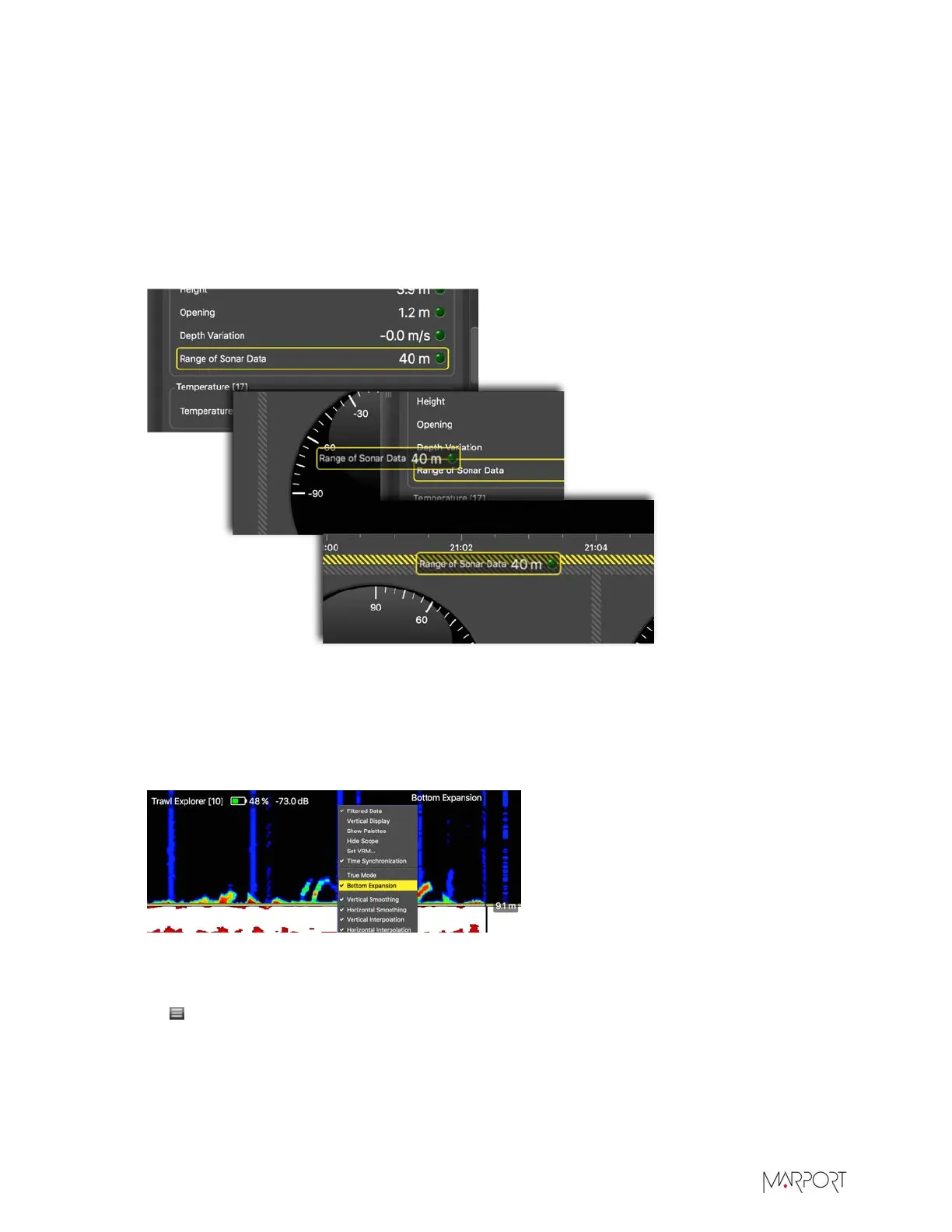

In the control panels, from Sensors Data, click Range of Sonar Data + hold for 3 seconds until a
rectangle with data appears.
3.
Hold + drag the rectangle to a page and drop it where a yellow area appears.
The echogram is displayed.
4.
You can use the Bottom Expansion view to display a more precise view of the bottom to better
see fish close to the bottom. This view is usually used with echosounders on the hull, but you
can use it with NBTE sensors on the trawl if the reception is good and the bottom is correctly
detected.
What to do next
When you have finished customizing pages, you need to deactivate the Customize mode: click
Menu > Customize again.
Changing the Echogram Colors
You can change the default colors of the echogram. The ability to configure the color palettes is
interesting to highlight specific things, for example to clearly distinguish the sea bottom from fish
targets.
| 85
