Scala | V7 | Display Configuration
Procedure
1.
Right-click the echogram, then click Show Palettes.

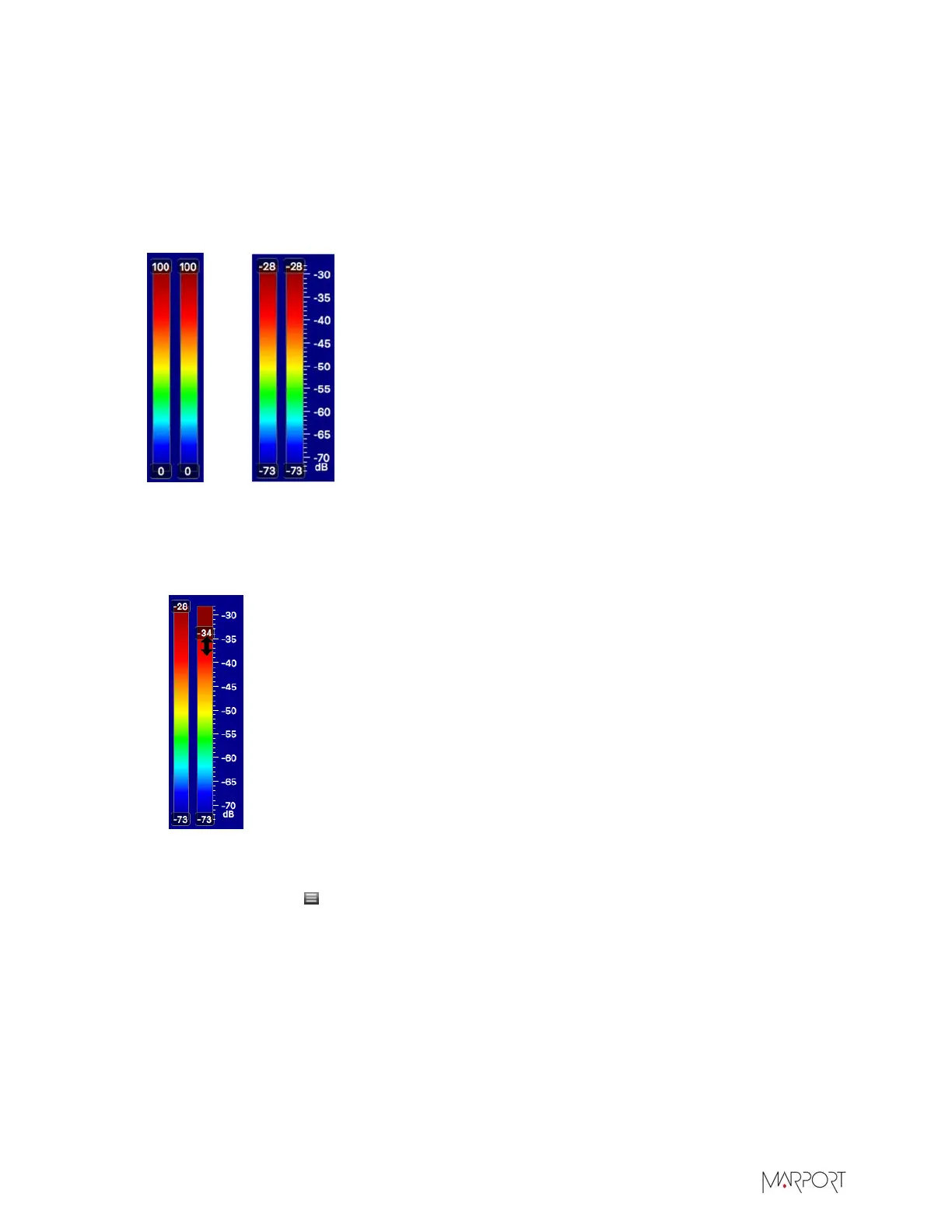

The two color palettes appear on the left side of the echogram. The first palette is for the area
underneath the seabed and the second for the water column.
Depending on the type of sensor installed, you can have two types of color palettes. The second
one is for latest generation sensors. It displays the target strength.
2.
For both types of palettes:
a)
Drag the top handle down to increase the red color.
b)
Drag the bottom handle up to eliminate noises and weak echoes.
3.
With the first type of palette only, you can also adjust the gain level. It changes the color
intensity. You can for example saturate more or less in red to obtain same colors for different
sensors. Click Menu > Expert Mode and enter the password copernic.
A handle is displayed in the middle of the palette. Drag it to adjust the level.
| 86
