Scala | V7 | Display Configuration
Sensor Data

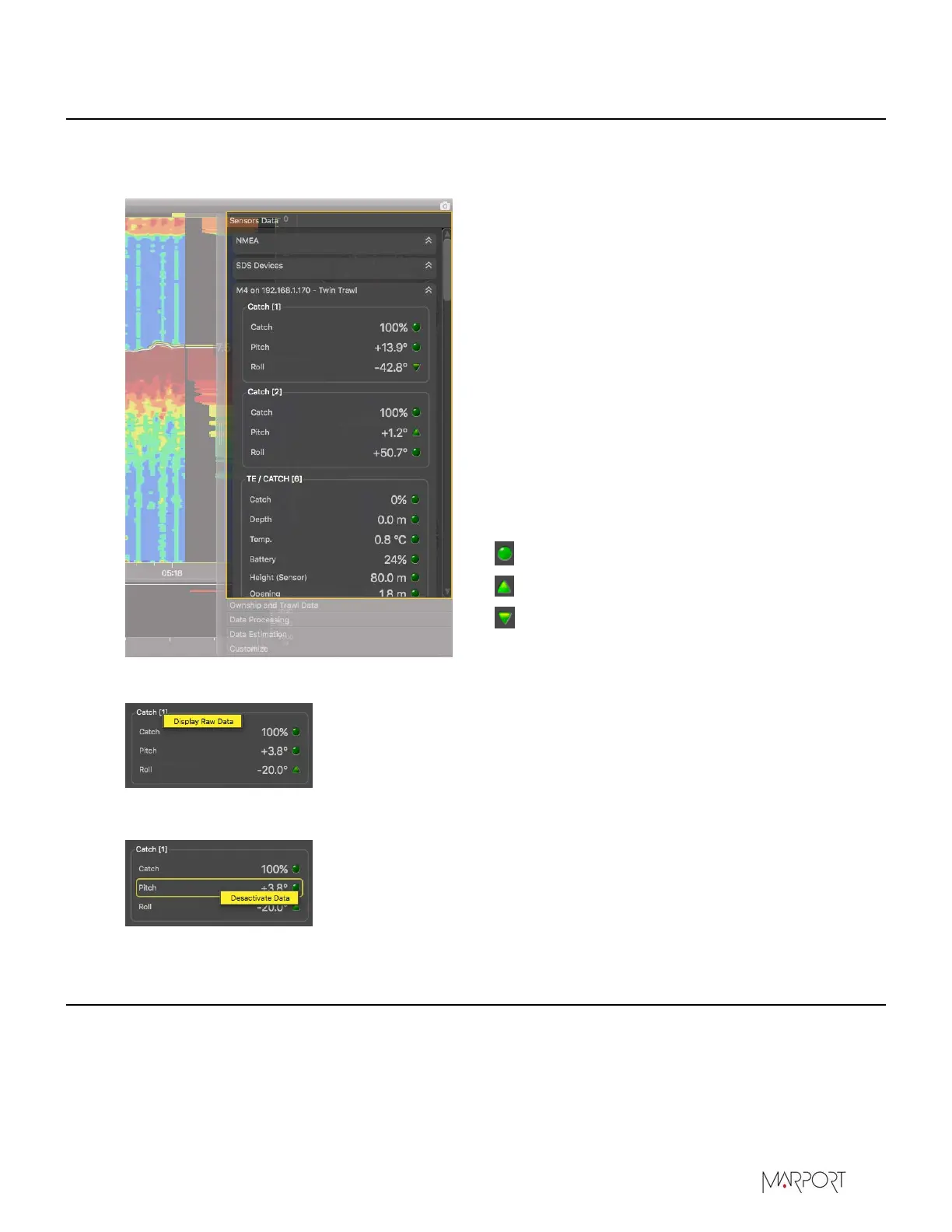

Sensor data is displayed in the Control Panels on the right side of the screen. Sensor data is raw or
filtered data received from the sensors.
By default, the location of the sensor on the trawl
gear is written between brackets next to the sensor
name. To know to which location the number
corresponds, refer to the pictures in Sensor Nodes.
A LED next to data names indicates the status of
data received:
• Blinking green: data is received.
• Orange: communication with the receiver has
been lost for a few seconds. A connection problem
has just occurred.
• Red: there is no more communication with the
receiver.
The LED shape changes according to data received:
•
: data is stable
•
: data value is increasing
•
: data value is decreasing
To display raw data, right-click on the title and select Display Raw Data.
You can also deactivate the reception of data. It can be useful if for
example you have two different sensors sending the same data. Right-
click incoming data and select Deactivate Data.
Ownship & Trawl Data
Ownship and trawl data are displayed in the Control Panels on the right side of the screen. They are
always written in italic.
| 68
