Marport Scala - Displaying Trawl Positioning from Scala on Seapix

Scala | V7 | System Configuration
Displaying Trawl Positioning from Scala on SeapiX
You can export trawl positioning data coming from Scala to SeapiX software.
Before you begin
• You must have a GPS and door positioning sensors.
• Documented SeapiX version: version 8.6.0
•
Compatible Scala version: Scala 01.06.23 and later
Procedure
1.

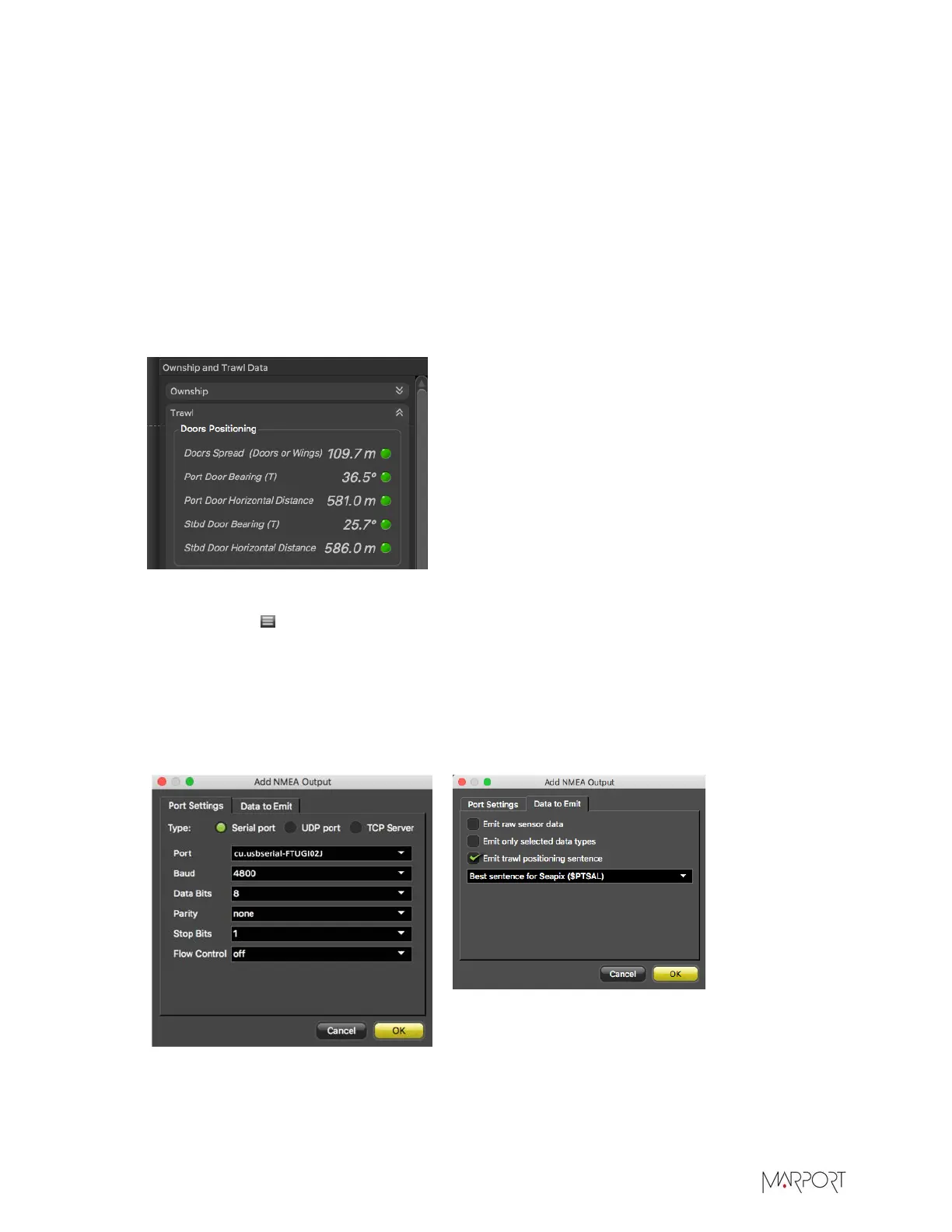

On Scala, in Control Panels > Ownship and Trawl Data > Trawl check that you receive Door
Positioning data.
2.
To configure the export of trawl positioning data:
a)
Click Menu > Settings.
b)
Under the NMEA Outputs tab, click Add.
c)
In Port Settings, depending on your installation select Serial port, UDP port or TCP Server
and configure the port.
d)
In Data to Emit, select Emit trawl positioning sentence and select Best sentence for Seapix
($PTSAL).
3.
From SeapiX, add the communication port used to receive NMEA from Scala:
a)
In the menu bar, click System > Settings > I/O and Mobiles > Input/Output & Mobile
Configuration.
