Scala | V7 | System Configuration
2.

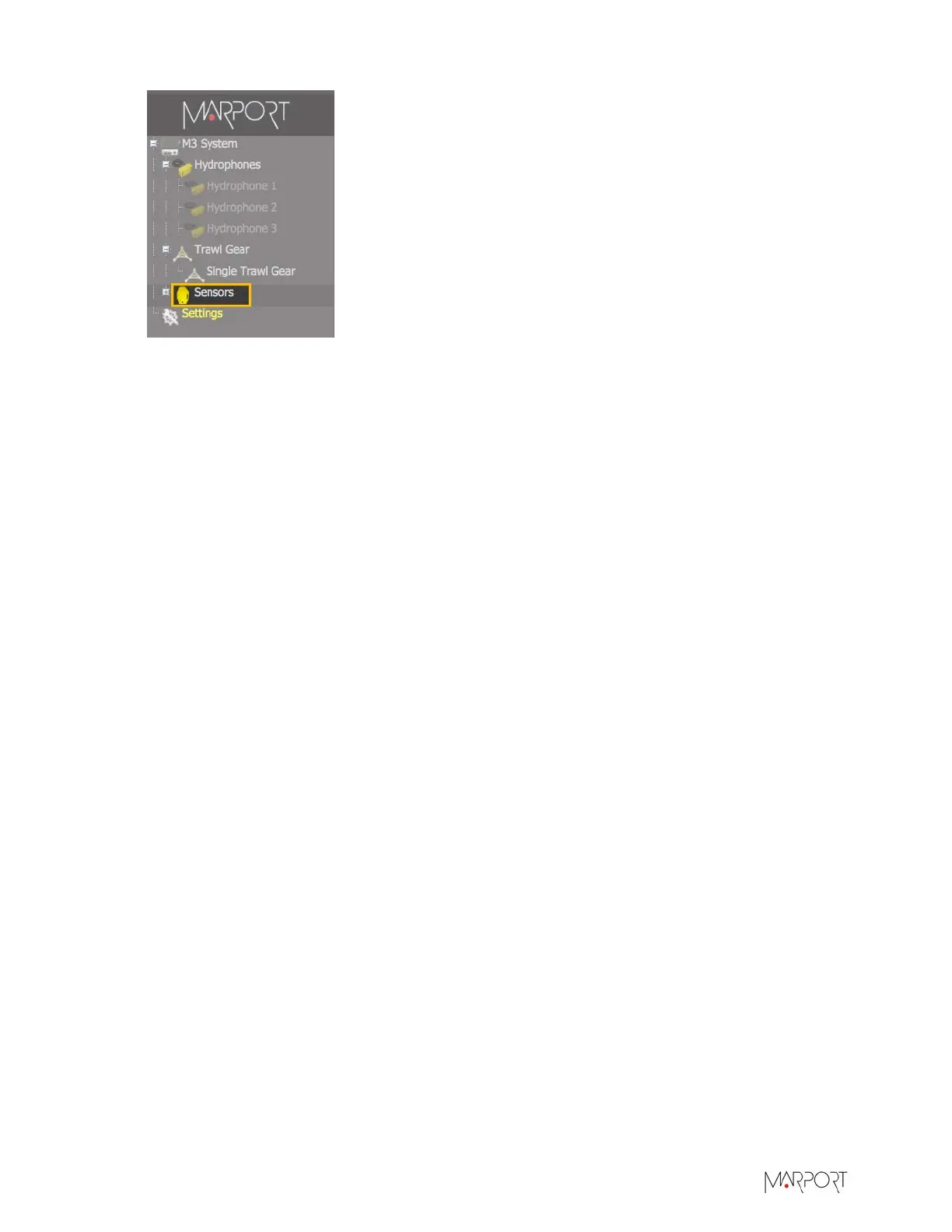

In the sensor selection page that appears, in Product Category select the main function of the
sensor.
3.
In Product Name, select the additional options that the sensor has.
A picture with the nodes where sensors can be placed on the selected trawl gear is displayed.
4.
In Trawl Gear Location, select a node location for the sensor. The list only displays nodes that
have no sensor assigned. Refer to the picture to know to which node the number corresponds.
5.
Click Add Sensor.
What to do next
You can now configure the settings of the sensor.
Trawl Gears and Sensor Locations
Sensor locations in the system are called nodes and have a numerical value between 1 and 999. The
following pictures show the node locations on different types of trawl gear.
The nodes are displayed when defining sensor locations on a trawl gear in the receiver settings.
When looking at sensors data in the control panels, each sensor will have its defined sensor
location or node number shown next to its name.
You can refer to these pictures to know the location of the sensor.
| 23
