Scala | V7 | Display Configuration
Displaying the Chart View
You can display the location and trajectory of the trawl behind the vessel if you receive GPS data
and have door positioning sensors.
Before you begin
•
You must be in Customize mode to do this task.
You must have:
• Incoming GPS data and heading data.
• Spread or Slant Range sensors with bearing measurement
• Warp lengths or Slant Range sensors giving distance to vessel
Procedure
1.

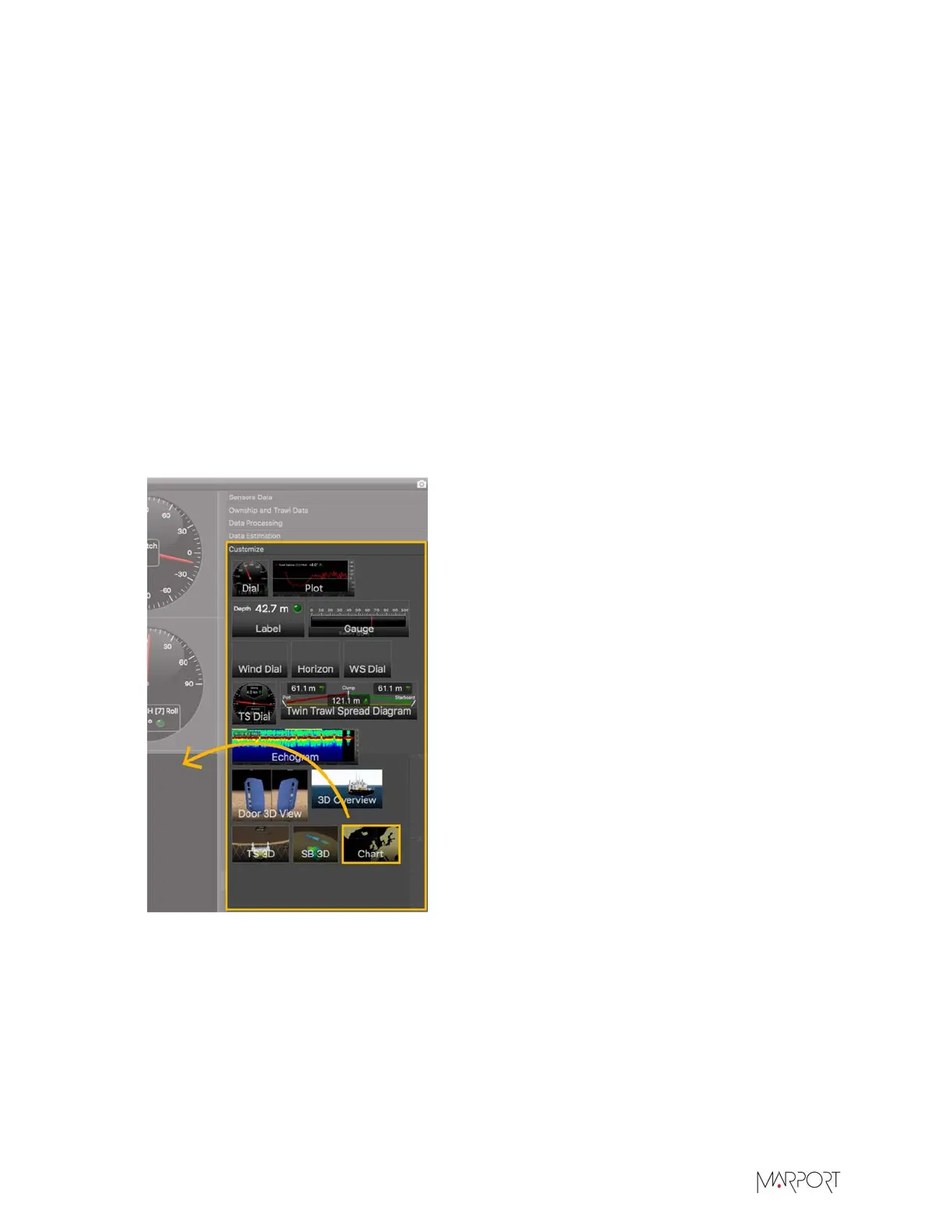

From the lower part of the control panels, click Customize.
The Customize panel appears.
2.
Click + drag Chart to the page.
3.
Drop it in a yellow area.
The chart view is displayed. The blue trail is the heading of the vessel, red trail is the port door
and green trail is the starboard door.
| 107
