Scala | V7 | System Configuration
4.

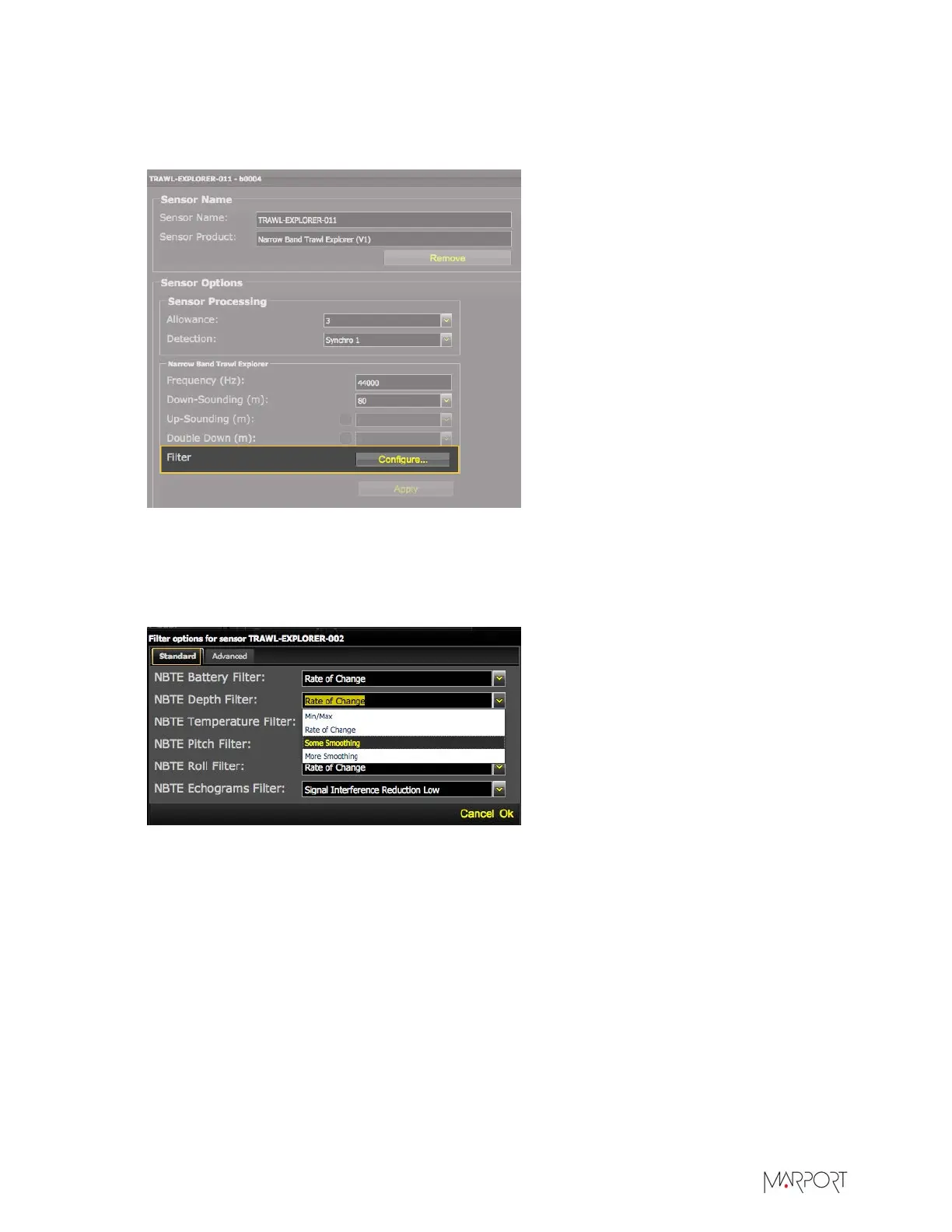

From the left side of the screen where the system is displayed, click a sensor, for example Trawl
Explorer.
5.
In the Sensor Options group, at Filter, click Configure.
A panel listing available filters appears. The filters displayed depend on the functions of the
selected sensor.
6.
Under the Standard tab, select filters for each function. See Types of Filters on page 33 for
details about the filters.
7.
To change the default threshold values for the filters, click the Advanced tab.
Functions are listed with their threshold values. Change them according to your need.
| 38
