Scala | V7 | System Configuration

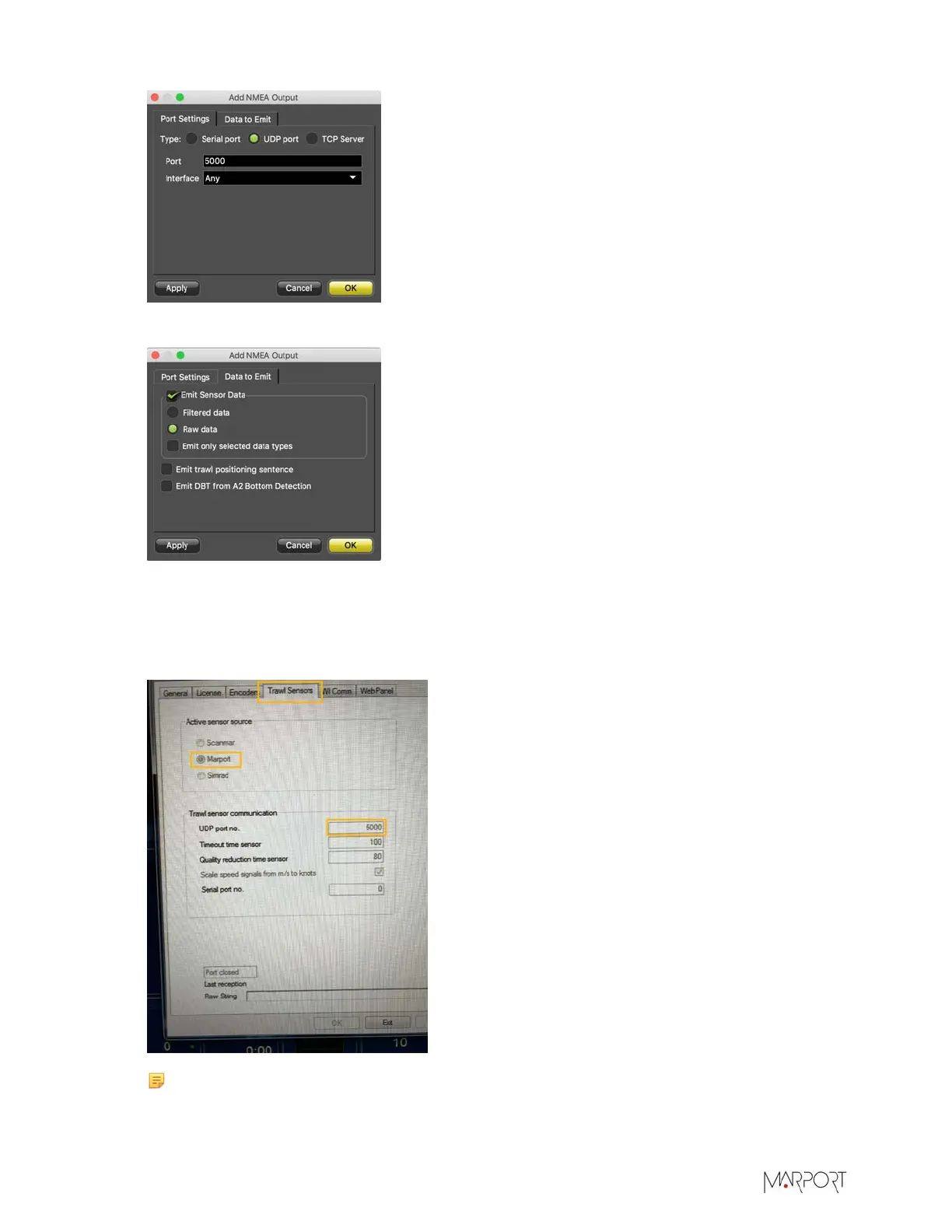

4.
Go to
Data to Emit
tab and select
Emit Sen
sor Data
>
Raw data
.
5.
Go to iSYM's
System Settings
.
6.
Go to
Trawl Sensors
tab, then select
Marport
in
Active sensor source
.
7.
Configure the communication settings in
Trawl sen
sor communication
. Enter the same port
you set in Scala.
Note:
Port closed
mention at the botto
m of the window does not impact the
configuration and should be ignored.
|
63
63
65
Table of Contents
Default Chapter
3
Table of Contents
3
Legal
6
History
6
Copyright
8
Disclaimer
8
Introduction and Presentation
9
Introduction
9
Overview of the System
10
Overview of Scala
11
Mac Basics
12
Installation
14
Installing Scala
14
Automatically Opening Scala at Start up
16
Opening Scala
17
Changing the Language Settings of Scala
18
System Configuration
19
Configuring the System
19
Defining a Hydrophone
19
List of Marport Hydrophones
21
Defining a Trawl Gear Type
22
Adding a Sensor
23
Trawl Gears and Sensor Locations
24
Configuring the Sensor Settings
28
Configuring Trawl Positioning System
29
Calculations for Positioning System
30
Exporting/Importing the Receiver Configuration
32
Applying Filters on Incoming Data
33
Types of Filters
34
Applying Filters
38
Adding NMEA Data from External Devices
41
Receiving Warp Lengths from Scantrol
43
Outputting NMEA Data to Other Systems
44
Displaying Trawl Positioning from Scala on Olex
45
Displaying Trawl Positioning from Scala on Maxsea Version 12
50
Displaying Trawl Positioning from Scala on Maxsea Timezero
56
Displaying Trawl Positioning from Scala on Seapix
61
Outputting Scala Symmetry Data to Scantrol
63
Displaying Bathymetric Data from GEBCO Database
65
Display Configuration
67
Control Panels
67
Sensor Data
69
Ownship & Trawl Data
69
Data Estimation
71
Receiver Data
71
Creating Data Pages
72
Creating a New Page
72
Adding Data to a Page
74
Removing Data from a Page
77
Saving a Page
78
Exporting a Page
80
Deleting a Page
80
Opening a Saved Page
81
Managing Windows
82
Opening a Page in a New Window
82
Moving Pages between Windows
84
Closing and Re-Opening Windows
85
Customizing the Display of Data
85
Echograms
85
Adding an Echogram
85
Changing the Echogram Colors
86
Displaying the View from Surface to Seabed
90
Displaying Echograms from seine Sensors
90
Displaying the Bottom Line
91
Adding a Range Marker
92
Zooming on Timestamp and Distance Scale
92
Sensor Numerical Data
94
Display Types
94
Changing the Display of Page Elements
95
Displaying Catch Monitoring
97
Displaying Single Trawl Spread
97
Displaying Twin Trawl Spread
99
3D Views
101
Displaying Trawl Door 3D View
101
Displaying Trawl Speed 3D View
104
Displaying Vessel System 3D View
106
Displaying the Chart View
108
Displaying a Position Marker
109
Setting an Alarm on Incoming Data
110
Changing the Default Units
111
Recording and Replaying Data
111
Recording of Incoming Data
112
Replaying Data on Scala Replay
112
Adding Events
114
Extracting Data from SDS Files
115
Servicing and Maintenance
119
Installing Updates
119
Troubleshooting
119
Advanced Troubleshooting Tools
123
Messages
123
Spectrum Analyzer Display
125
Checking Noise Interference
126
Recording Audio Files
127
Log
128
Giving Remote Access to the Computer
129
Uninstalling Scala
129
Support Contact
131
Appendix
132
Compatible Incoming NMEA Sentences
132
NMEA Outputs from Scala
141
Marport's Proprietary Sentence
141
Positioning Sentences
144
Index
146
