Scala | V7 | Display Configuration
5.

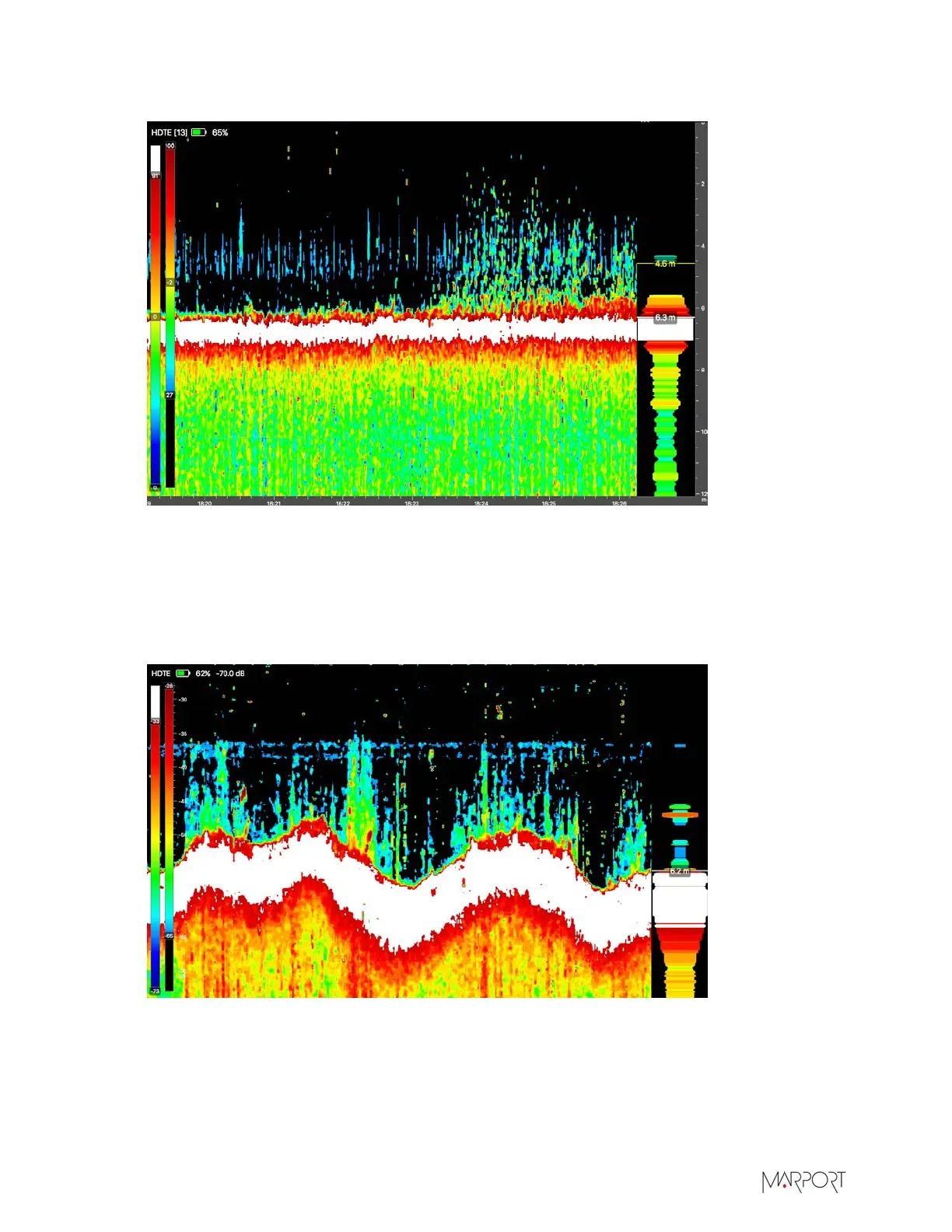

For example, to have the following display with the first type of palette:
a)
Right-click each palette and select NC42White for both.
b)
Drag the top handle of the left palette down to 91 to see the sea bottom in white.
c)
Drag the bottom handle of the right palette up to 27 to better see fish.
d)
Drag the gain handle of the right palette up to -2 to change the color level.
6.
To have the following display with the second type of palette:
a)
Right-click each palette and select NC42White for both.
b)
Drag the top handle of the left palette down to -33dB to see the sea bottom in white.
c)
Drag the bottom handle of the right palette up to -65dB to better see fish.
| 88
