Masimo Root User Manual

Root NIBPT Chapter 5: NIBP Measurement
www.masimo.com 98 Masimo

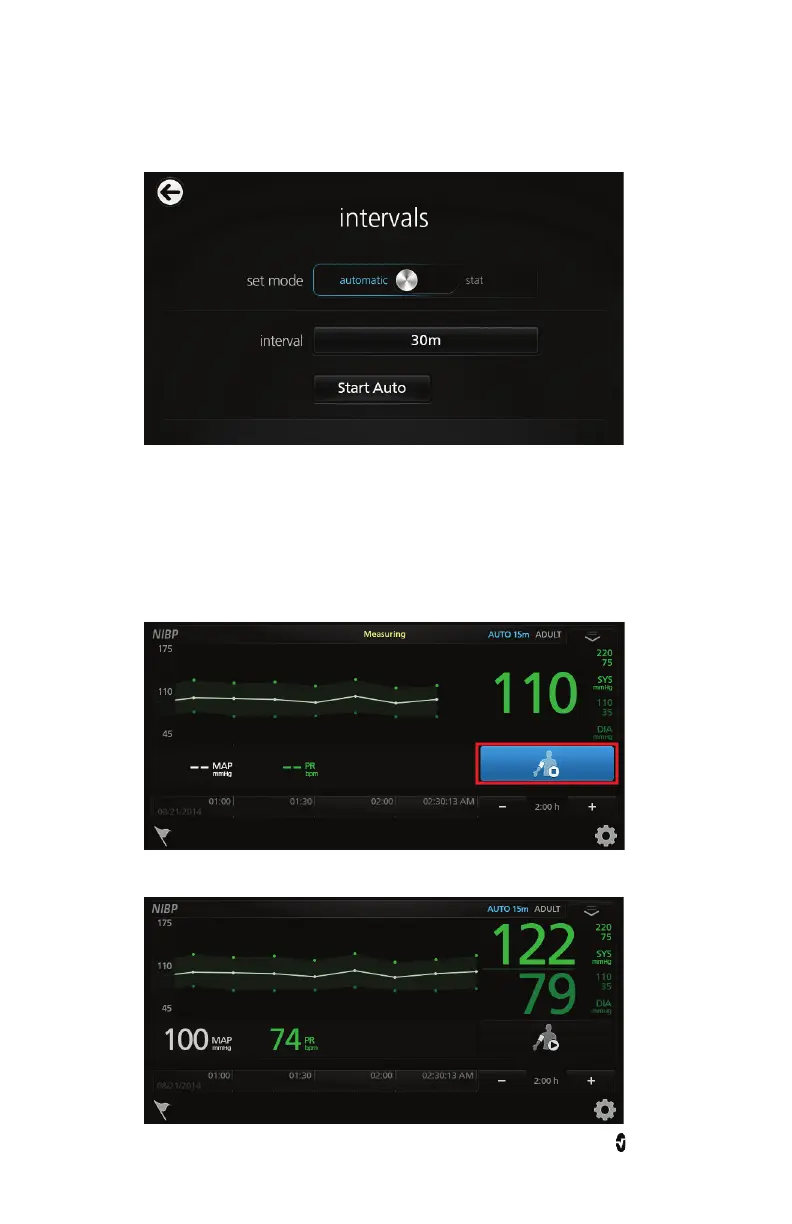

On the Intervals screen, change Set Mode to Automatic, and then select the
desired Interval. The set mode can also be changed using the action menu.
WARNING: Too frequent blood pressure measurements can cause injury to the
patient due to blood flow interference.
5. To begin measurement, press the Start Auto button and then press the arrow at
the top-left corner of the touchscreen to return to the Main View.
6. Wait for measurement to complete or press the Stop button to stop the
measurement.
Note: Once finished measuring, values will appear and the next measurement will
begin after the specified interval.

Masimo Root Specifications

General

Category	Medical Equipment
Display	10.1 inch touchscreen
Connectivity	WiFi, Bluetooth
Power Supply	AC power
Dimensions	26.8 cm x 22.4 cm x 5.1 cm
Ports	USB, Ethernet
Supported Parameters	SpO2, Pulse Rate
Compatibility	Masimo sensors
Model	Root
