Maxcess D-MAXE - Operator Interface Menu Structure Overview

OPERATOR INTERFACE MENU STRUCTURE13 - 2
D-MAXE with OI-B/OI-N www.maxcessintl.comMI 2-296 1 D

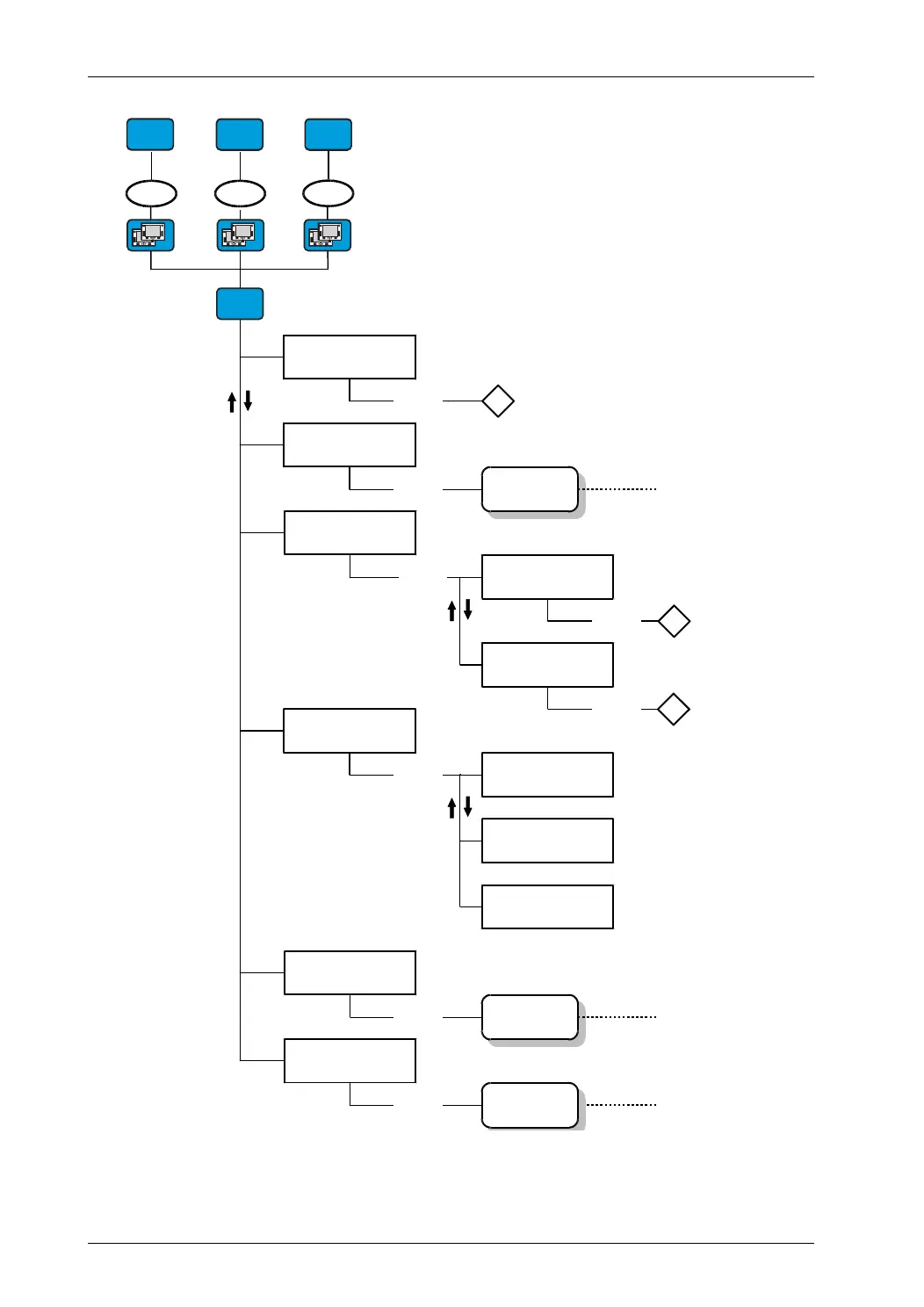

1.a.1
Language
1.a.2
Control Options
1.a.3
Display Settings
1.a.4
Configuration
1.a.5
Network (X2...X6)
1.a.6
Service
L
F2
C
SC
F3
D
M
F1
B
A
Hold the A key
down for longer
than 2 sec.
ENTER
ENTER
ENTER
ENTER
F6
G
A A A
ENTER
ENTER
1.a.3.1
Contrast
1.a.3.2
Background Color
N
ENTER
L
ENTER
1.a.4.1
Serial Number
1.a.4.2
FW Number
1.a.4.3
SW Number
BMP Orientation
Application Filter
Connect on start .
Log In
TCP/IP (X2...X6)
Measuring Points
continued on
page -3
continued on
page -4
continued on
page -4
Menu identification of starting menu:
b.a
"a“ is derived from the selected
device.
"
b“ is derived from the selection of
the filter type
The menus of this structure are
described starting from b = 1 (View of
