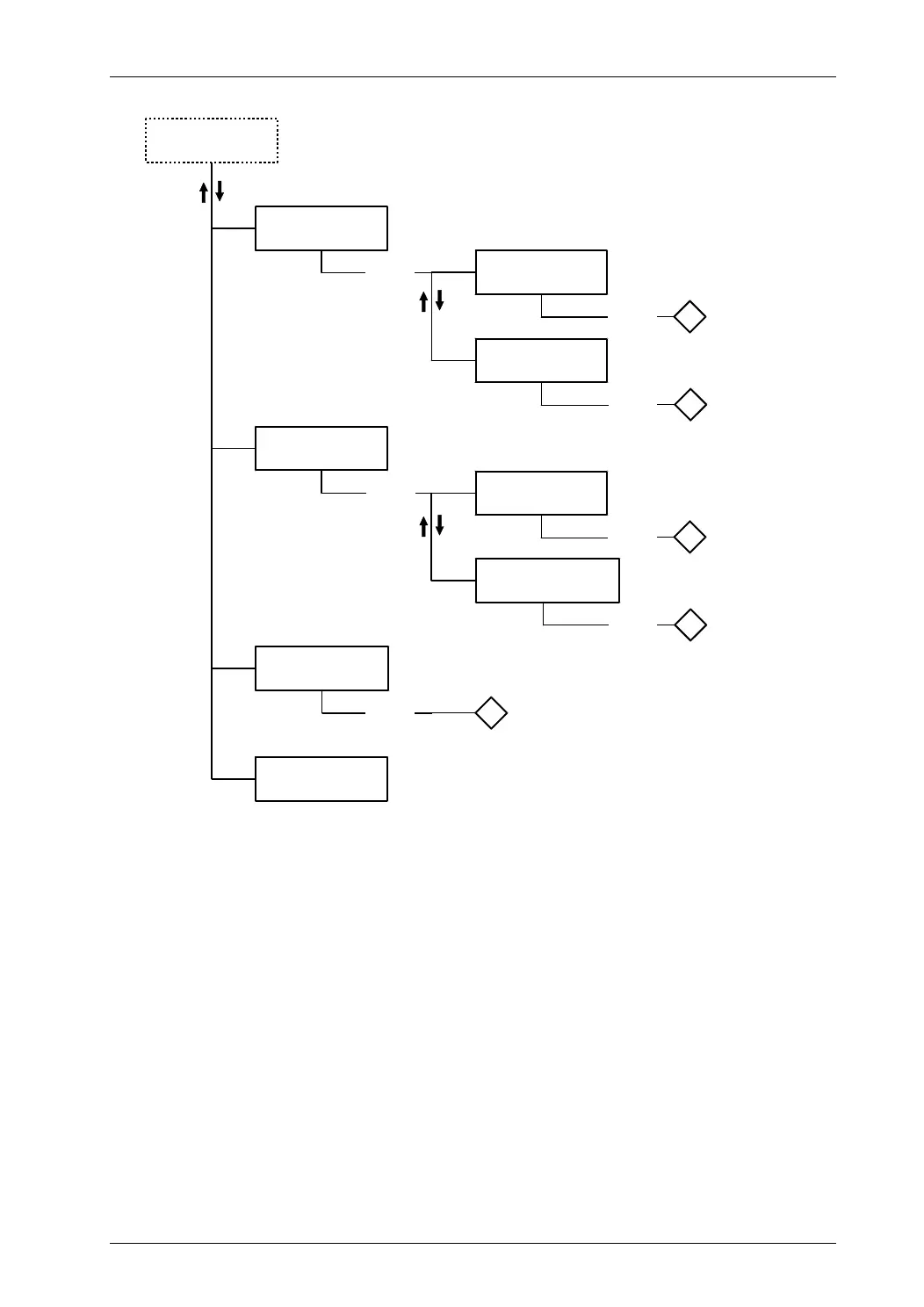

OPERATOR INTERFACE MENU STRUCTURE
13 - 3
D-MAXE with OI-B/OI-N
www.maxcessintl
.com
MI 2-296 1 D
D-MAX.Menüstruktur Bedieneinheit.fm
1.a.2
Control Options
1.a.2.1
BMP Orientation
1.a.2.1.1
D-MAX.D1
ENTER
L
ENTER
1.a.2.1.2
D-MAX.D2
L
ENTER
1.a.2.2
Application Filter
1.a.2.2.1
Filt
er Typ
e
L
ENTER
1.a.2.
2.2
Selected Appli
catio
n
N
ENTER
ENTER
1.a.2.3
Connect on
start ..
L
ENTER
1.a.2.4
Log In
154
156
Table of Contents
Table of Contents
3
Introduction
6
About These Operating Instructions
6
Proper Use
7
Options
7
Improper Use
7
Operating Principle
8
Modules
8
Operating Principle
9
Safety Instructions
10
Important Information
10
Information about Safety Instructions
10
Symbols
11
Preventing Hazards
11
Installation and Commissioning
11
Operation
12
Maintenance
12
Installation
13
Transport and Storage
13
Scope of Delivery
13
Mounting
14
Installation Location of D-MAXE Controller
14
Installation Location of D-MAX Operator Interface OI-B/OI-N
16
Mechanical Fastening of D-MAX Operator Interface OI-B or OI-N
17
Electrical Connection
18
Emergency Stop
18
Power Supply of D-MAXE Controller
18
Power Supply of D-MAX Operator Interface OI-B or OI-N
18
Connecting the Sensors/Actuators
18
Connections on the D-MAXE 1 Controller
20
Connections on the D-MAXE 2 Controller
20
Connections on the D-MAXE 3 Controller
21
Leds on the D-MAXE Controller
22
Connections on the Operator Interface
22
MAXNET Addresses
23
Operation
24
Precondition
24
Note
24
Safety Instructions
24
User Interface
25
LED Displays on the Operator Interface OI
25
Keys and Their Functions
26
Display - User Level
27
Display - Menu Level
30
Menu Structure
31
Menu Identification
31
User Level
33
Selection of "Devices
34
Automatic Operating Mode
36
Servo-Center Operating Mode
37
Manual Mode
38
Selection of "Jobs
39
Shift Guidepoint
40
Menu Level
41
Information on Operation in the Menu Level
41
Numeric Entries
41
Sequences
41
Selection Lists
41
Operator Interface Menus
43
Notes
43
Conventions
43
Menu 1.A.1 Language
44
Menus 1.A.2 Control Options
45
Menu 1.A.2.1 BMP Orientation
46
Menu 1.A.2.3 Connect on Start
49
Menus 1.A.3 Display Settings
50
Menus 1.A.5 Network (X2
52
Menus 1.A.6 Service
53
Commissioning
54
Before Commissioning
54
Controller Menus
57
Notes
57
Conventions
57
1Y.2 Remote Control
58
1Y.3 Job Settings
60
1Y.4 Servo-Center
72
1Y.5 Hardware Ios
75
General Information about These Menus
76
General Information about These Menus
86
1Y.6 Control Options
99
Menu 1Y.6.1 Mode Enable
99
Menu 1Y.6.2 Job Enable
99
Menu 1Y.6.3 Jog Keys
100
Menu 1Y.6.4 Remote Control
100
Menu 1Y.6.5 Length Unit
100
1Y.7 Configuration
102
Menu 1Y.7.1 Names
102
Menu 1Y.7.2 Serial Number
102
Menu 1Y.7.3 FW Number
102
Menu 1Y.7.4 SW Number
102
1Y.8 Network
111
Menu 1Y.8.1 TCP/IP
111
Menu 1Y.8.2 MAXNET
111
Menu 1Y.8.3 Fieldbus
112
Menu 1Y.8.4 MAC-ID
112
1Y.9 Service
113
Menu 1Y.9.1 Measuring Points
113
Menu 1Y.9.3 Errors/Warnings
114
Maintenance
115
Maintenance Work
115
D-Maxe Decommissioning
116
Decommissioning
116
10 Troubleshooting
117
Troubleshooting Procedure
117
Display Possibilities
117
Procedure
117
Leds on the D-MAXE Controller
118
D-MAX Operator Interface
119
Leds on the D-MAXE Operator Interface
120
Leds L1 and L2
120
Leds X2
121
Icons in the Display of the D-MAX Operator Interface
122
Faulty Behavior and Setting Errors
125
Faulty Behavior
128
Fuse Replacement
130
11 Technical Data
132
General Information
132
D-MAXE Controller
132
D-MAX Operator Interface OI-B or OI-N
133
Inputs and Outputs of the D-MAXE Controller
134
Parallel Input Matrix
137
Parallel Output Matrix
137
Jobs
138
Actuators
139
Cable Lengths
141
Standards
141
Accessories (Optional)
142
Input Devices
142
Assembly Accessories
142
Menu Structure D-Maxe Controller
143
Legend
143
Operator Interface Menu Structure
153
Legend
153
14 Glossary
157
15 Service
160
