CONTROLLER MENUS: 1Y.5 HARDWARE IOS7 - 42
D-MAXE with OI-B/OI-N www.maxcessintl.comMI 2-296 1 D

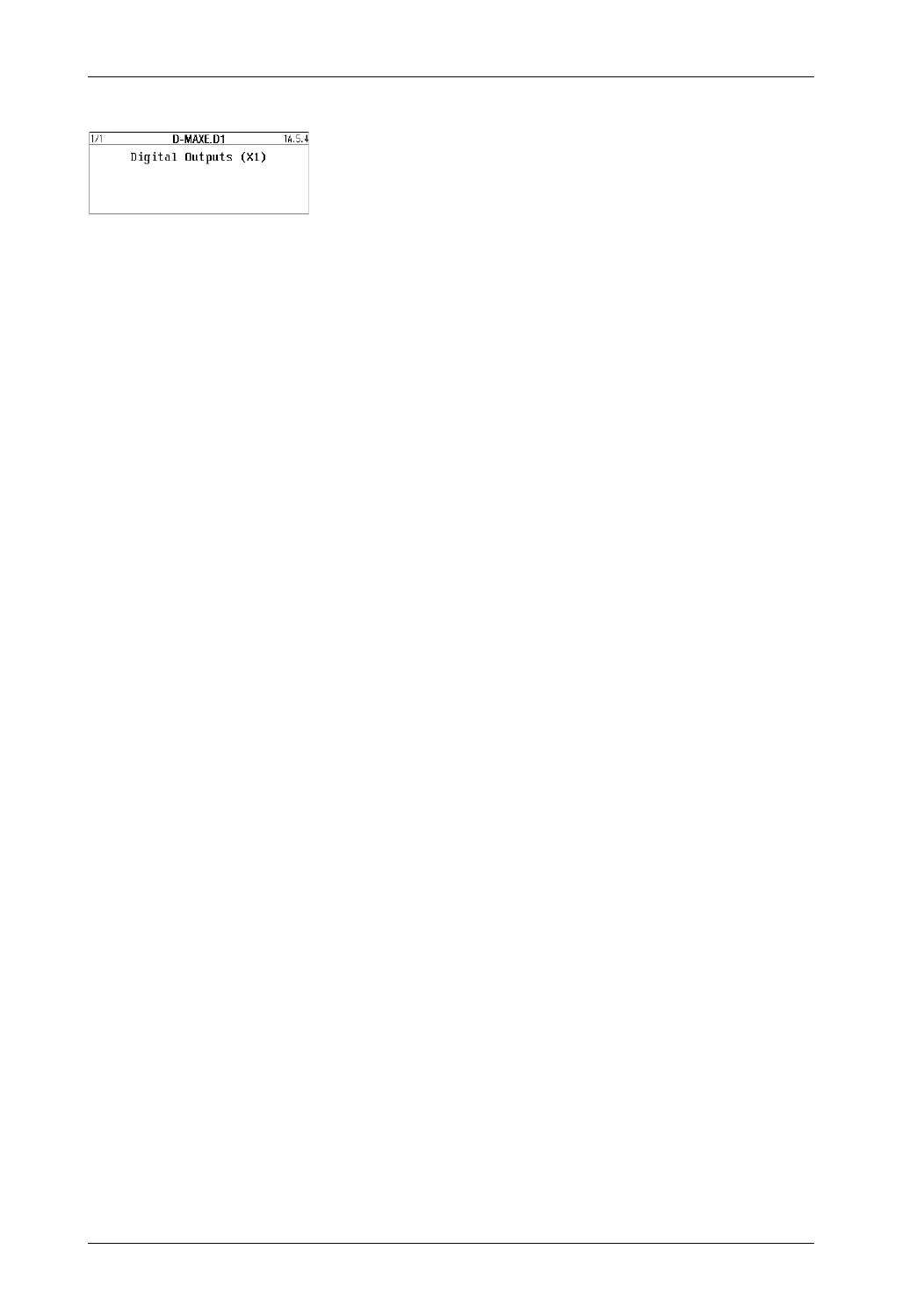

Menu 1y.5.4 Digital Outputs
Configuration of the physical properties of digital outputs A and
B
The outputs are automatically set to 'Set' or 'Cleared' depending
on the configuration and current operating state.
A delay time can be defined for the transition from 'Cleared' to
'Set'.
To adjust the digital outputs for each of the components
connected to them, the physical properties of the relevant state
('Set'/'Cleared') can be defined for each output A or B.
You can select individually for each state between:
–<1V
– > 10.3V
– High Ohms
Menus 1y.5.4.1
Digital Output A
Menu 1y.5.4.1.1 Delay
Menu 1y.5.4.1.2 <Set> State
Menu 1y.5.4.1.3 <Cleared> State
Menus 1y.5.4.2 Digital Output B
Menu 1y.5.4.2.1 Delay
Menu 1y.5.4.2.2 <Set> State
Menu 1y.5.4.2.3 <Cleared> State
