4-60

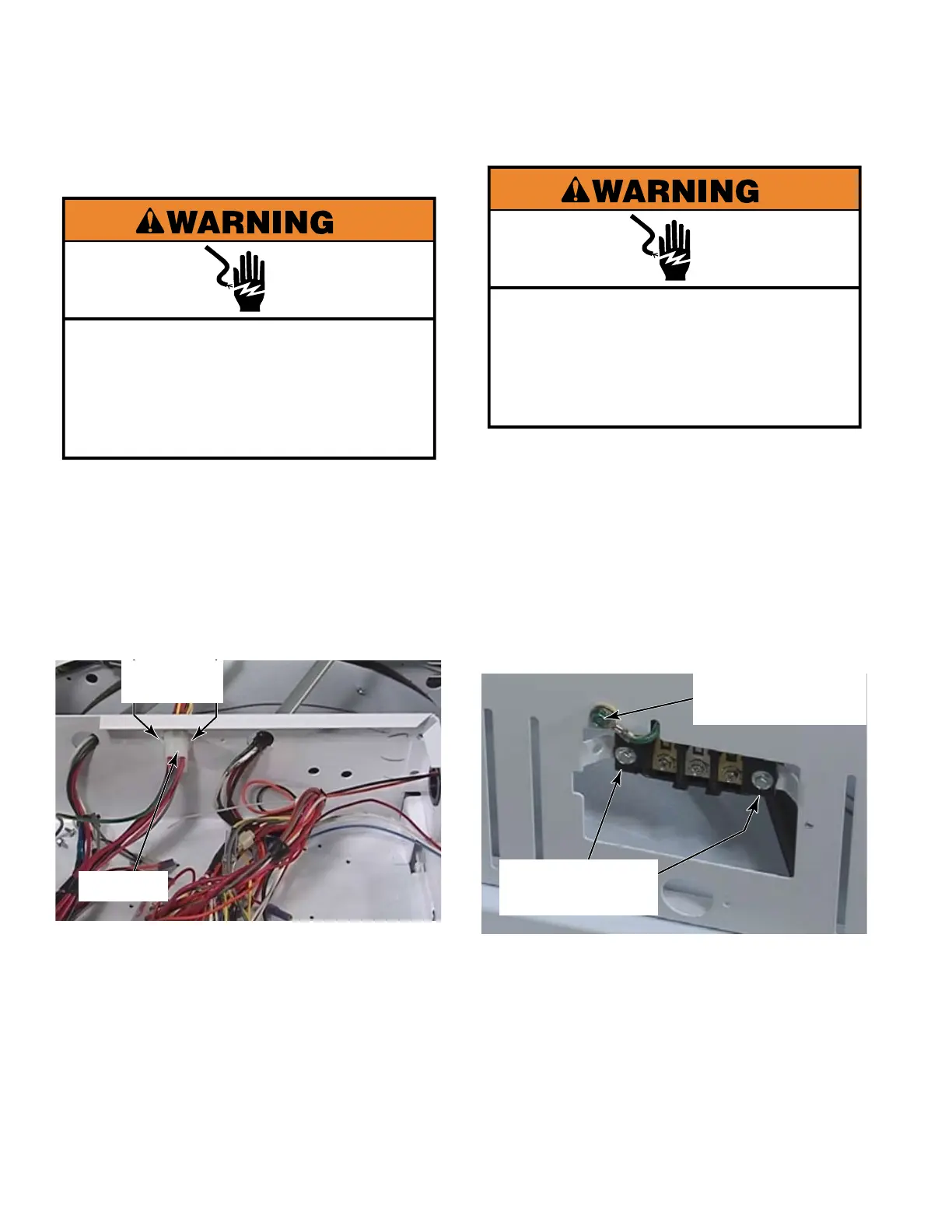

Remove the upper dryer. (See page 4-58).
Disconnect the power connector to the
lower dryer by pulling the connector out of
the plug on the rear wall of the collar, can
also be accessed from the front opening in
the control panel.
Remove the plug from the wall of the collar
by pressing the locking tabs and pushing
the connector through the hole in the collar.
1.
2.
3.
REMOVE POWER
CONNECTOR TO
LOWER DRYER
Plug
Locking
Tabs
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Remove power cord wire cover.
(See page 4-57).
Remove the 5/16” hex head screw that
secures the Earth wire to the back of the
collar.
Remove two 1/4” hex head screws that
secure the terminal block to the dryer.
Pull the terminal block into the inside of the
collar.
1.
2.
3.
4.
REMOVE TERMINAL BLOCK
Two 1/4” Hex
Head Screws
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
5/16” Hex Head
Earth Wire Screw
To Next Page
