Repeat this procedure with the other clip.
Pull the panel forward and remove the
panel.
The tech sheet, wiring diagrams, parts list,
programming information, and a key for the
service lock are in a pouch on the back side
of the service panel.
4.
5.
6.

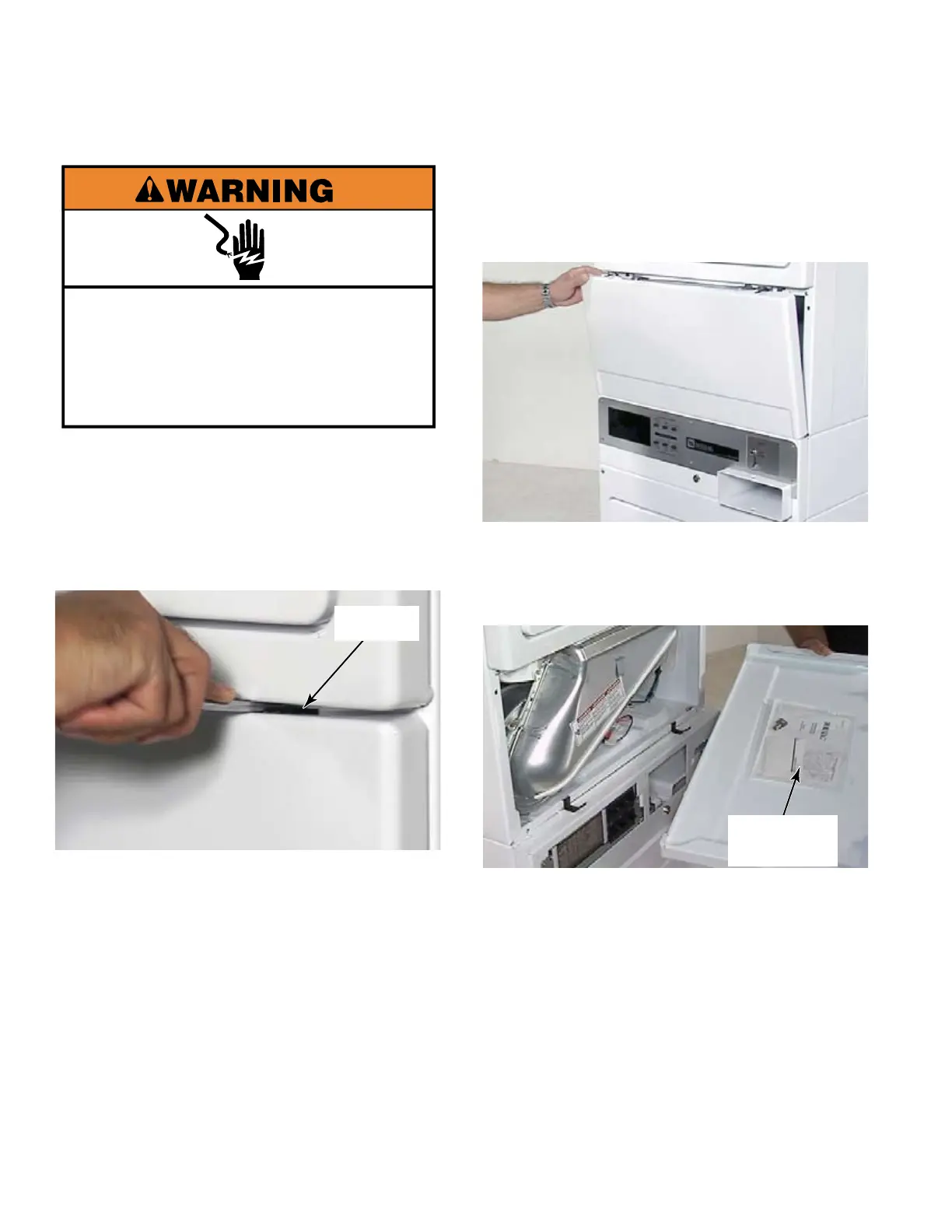

REMOVE SERVICE PANEL
Insert a stiff putty knife or a thin flat blade
screwdriver in the slot below the door.
Slide the tool until it contacts a clip, about 5
cm (2”) in from each corner.
Press the clip down to release it while
pulling the panel forward.
1.
2.
3.
Clip
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Tech
Sheet
