4-44
Remove the lower service panel
(See page 4-21).
Remove the wire connectors from the high
temp thermostat, thigh temp cutout and
from the heater coil.
Remove the 1/4” hex head screw that
secures the bracket to the bottom of the
dryer.
1.
2.
3.

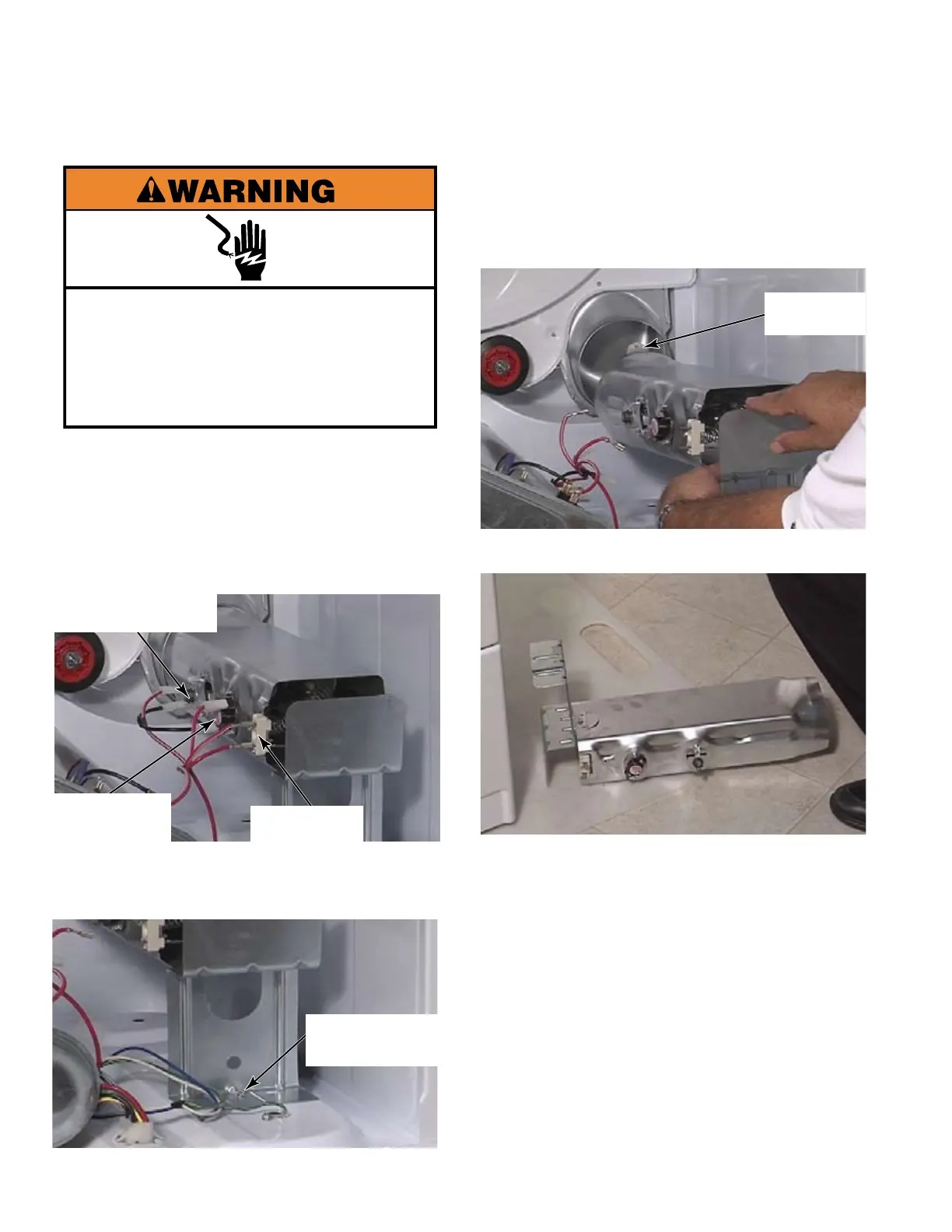

REMOVE ELECTRIC HEATING ELEMENT
Lift the bracket and heater assembly to
remove the bottom edge of the assembly
and press down to release the tab from the
inside of the heat plenum at the back of the
dryer.
Remove the assembly from the dryer.
4.
5.
1/4” Hex
Head Screw
Locking Tab
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
High Temp Cutout
High Temp
Thermostat
Heater Coil
To Next Page
