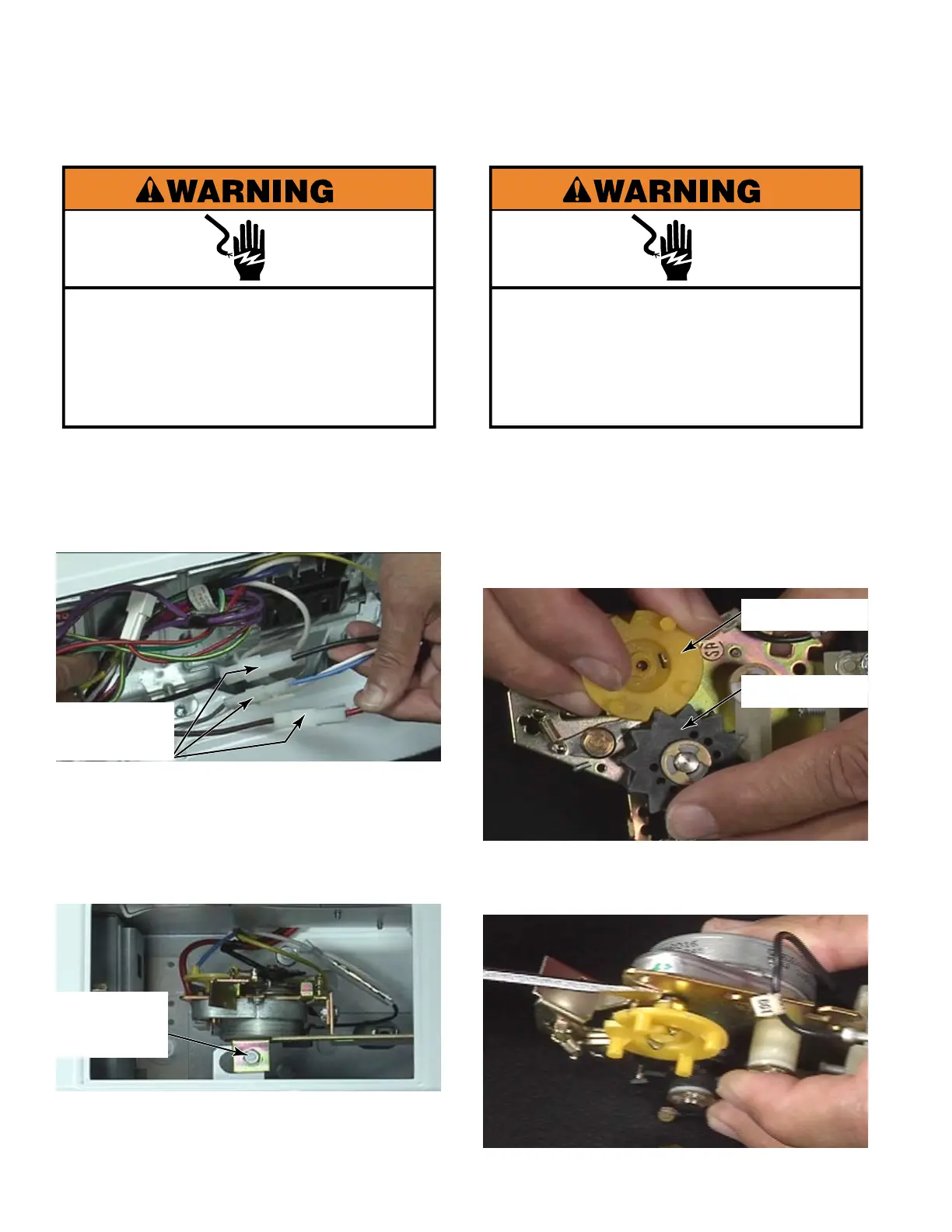

Maytag MDE17CS - Remove Mechanical Timer - CS; Remove Timing Cam - CS

4-4
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Open the control panel. (See page 4-1).
Disconnect the three wire connectors in the
console that go to the timer.
Remove the service access door on top of
the metercase (See page 4-3).
Remove the 5/16” hex head screw from the
bracket in the metercase.
Lift the timer out of the metercase with wires
attached.
1.
2.
3.
4.
5.
REMOVE MECHANICAL
TIMER - CS
3 Timer
Connectors
5/16” Hex
Head Screw
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Remove the timer. (See left column)
Rotate the timing cam manually counter-
clockwise until the ’V’ notch is underneath
one of the ’V’ shaped spokes on the top
black timer gear.
Lift the timing gear gently off the ’D’ shaped
timer shaft using a small thin flat-blade
screwdriver or similar tool.
1.
2.
3.
REMOVE TIMING CAM - CS
Timing Cam
Timer Gear
