DIAGNOSIS & TROUBLESHOOTING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
WARNING
STACK DRYER

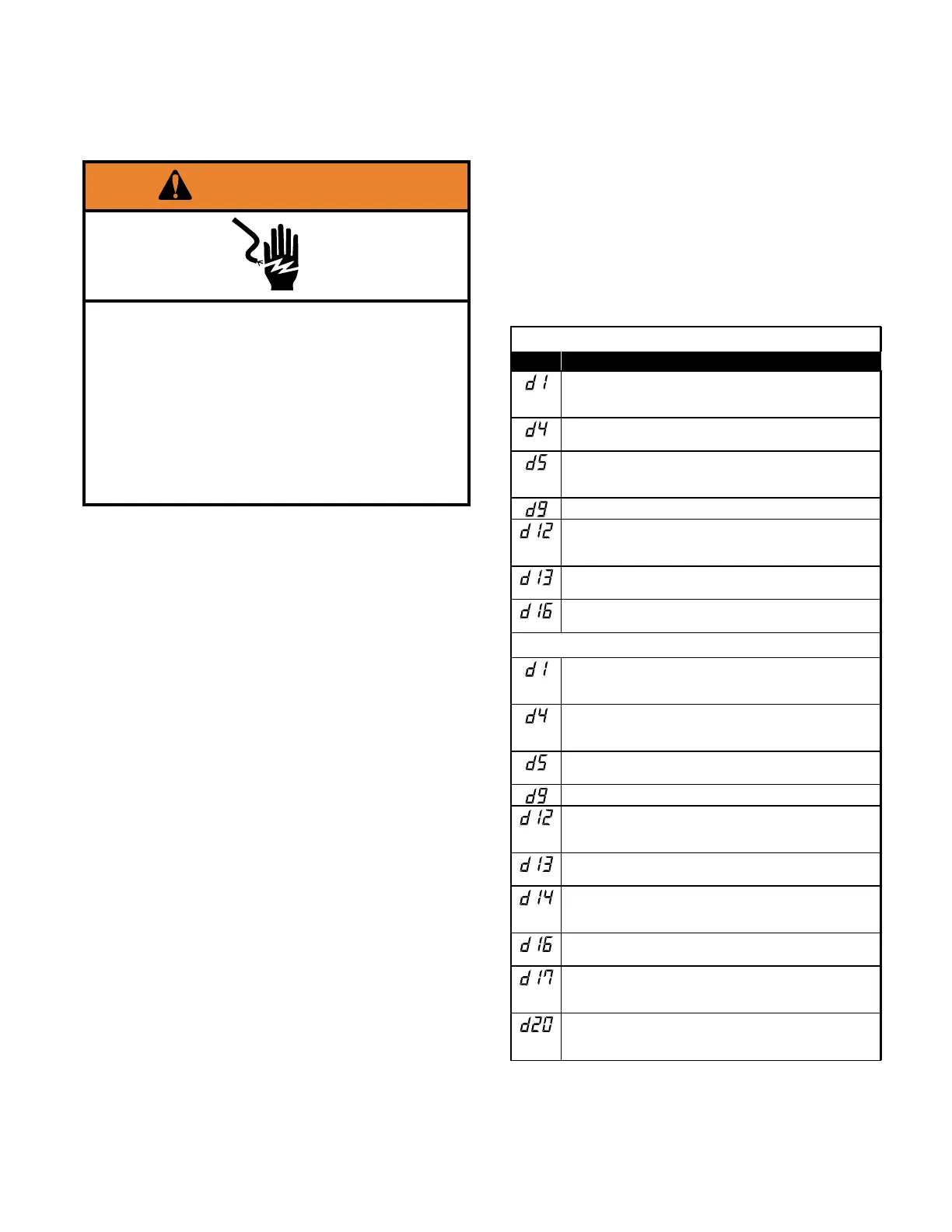

DIAGNOSTIC CODES
SINGLE DRYERS
CODE EXPLANATION
Dryer door sense error on control board or due to power line
interference (cycles and price display disabled until diagnostic
code is manually cleared).
Dryer motor control circuit error (cycles and customer display
disabled until diagnostic code is manually cleared).
Blocked coin 1 or coin drop control circuit failure (coin
recognition and customer display disabled while blockage
persists).
Voltage detected below 90 VAC for 8 seconds.
Motor sense error on control board or due to power line
interference (cycles and customer display disabled until
diagnostic code is manually cleared).
Blocked coin 2 or coin drop control circuit failure (coin
recognition and price display disabled while blockage persists).
Not receiving communications from installed debit card reader in
Enhanced (Generation 2) Debit mode.
STACKED DRYERS
Upper dryer door sense error on control board or due to power
line interference (upper dryer cycles and upper dryer display
disabled until diagnostic code is manually cleared).
Lower dryer motor control circuit error (lower dryer cycles and
lower display disabled until diagnostic code is manually cleared).
Blocked coin 1 or coin drop control circuit failure (coin
recognition and price display disabled while blockage persists).
Voltage detected below 90 VAC for 8 seconds.
Lower dryer motor sense circuit error on control board or due to
power line interference (lower dryer cycles and lower dryer
display disabled until diagnostic code is manually cleared).
Blocked coin 2 or coin drop control circuit failure (coin
recognition and price display disabled while blockage persists).
Upper dryer motor sense circuit error on control board or due to
power line interference (upper dryer cycles and upper dryer
display disabled until diagnostic code is manually cleared).
Not receiving communications from installed debit card reader in
Enhanced (Generation 2) Debit mode.
Lower dryer door sense error on control board or due to power
line interference (lower dryer cycles and lower dryer display
disabled until diagnostic code is manually cleared).
Upper dryer motor control circuit error (upper dryer cycles and
upper dryer display disabled until diagnostic code is manually
cleared).
If the set-up mode is entered and one of
the following has occurred, the appropriate
diagnostic code will be in the display.
