Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Remove the dryer top (See page 4-23).
Remove two of the three 1/4” hex head
screws that secure the baffle to the drum.
These screws have multiple thread depths
that grab the plastic securely to help avoid
the screws becoming loose from vibration.
1.
2.
3.
REMOVE A BAFFLE
Open the dryer door and hold the baffle with
one hand while removing the third screw.
Remove the baffle from the dryer and
replace if necessary.
4.
5.

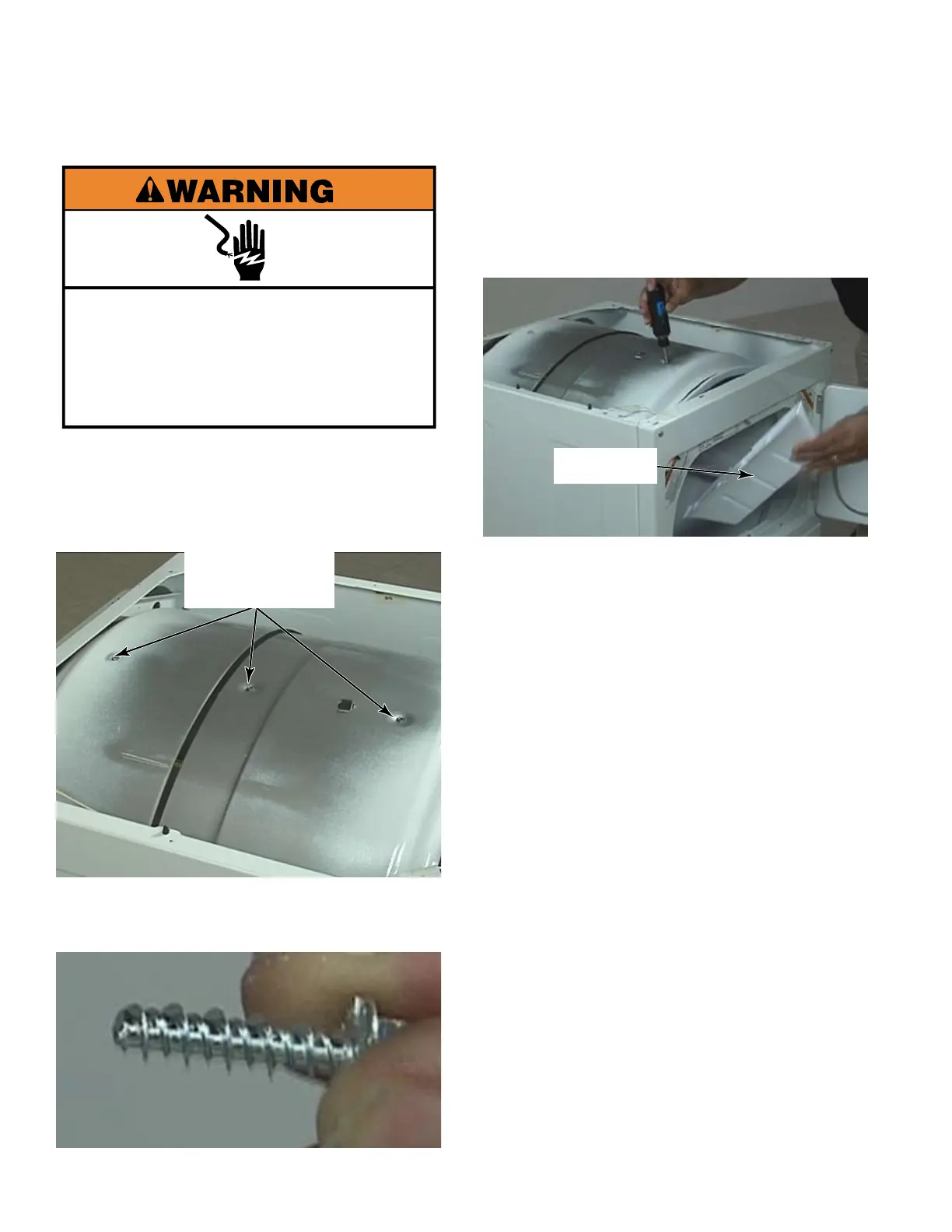

Three 1/4” Hex
Head Screws
Bafe
