Remove the bottom star head screws from
each hinge that secures the door to the front
panel frame.
Loosen the top star head screws from each
hinge that secure the door to the front panel
frame.
Lift the door and remove it from the dryer.
1.
2.
3.

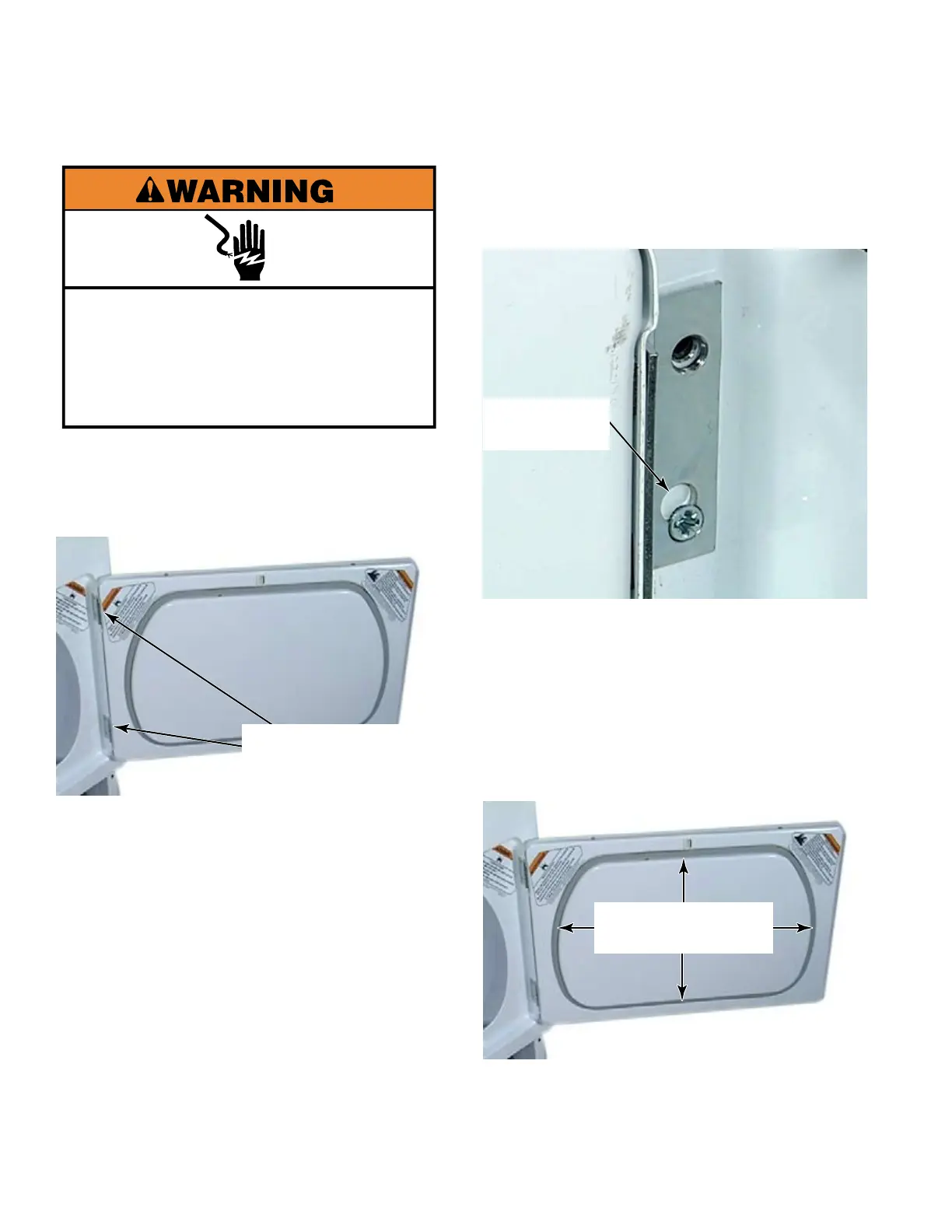

REMOVE DRYER DOOR, HINGE & DOOR SEAL
Four Star Head
Screws
If the door has been reversed the elongated
screw holes will be in the lower position and
will require that the door be supported when
the screws are loosened.
4.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Rubberized
Door Seal
To remove a hinge, remove the remaining 2
star head screws from each hinge.
The door of the dryer has a rubberized seal
around the inside edge that seals around
the opening of the dryer. The seal is glued
into place. If it needs to be replaced then
remove the old seal and glue a new seal
into place.
5.
6.
Elongated
Screw Hole
