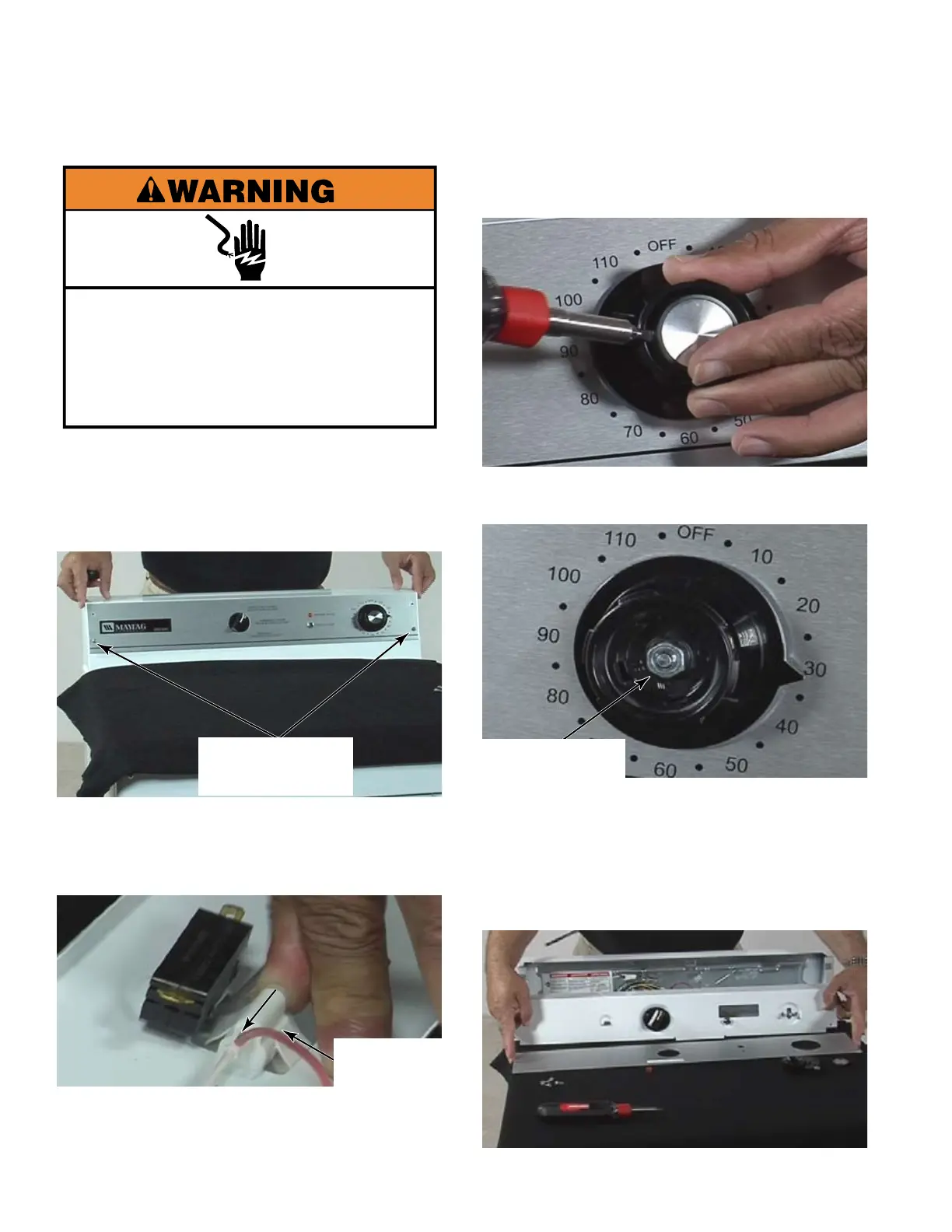

Use a small flat blade screwdriver to pry off
the cap of the timer knob.
Remove the 7/16” hex nut under the cap.
Remove the knob handle and the knob
pointer from the timer shaft.
Pull the facia away from the front of the
control panel.
4.
5.
6.
7.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Open the control panel (See page 4-13).
Remove the remaining two T-20 security
screws from the front of the facia.
Slide the indicator light off the indicator lens
on the back side of the control panel. The
indicator lens will slide out of the control
panel when it is picked up.
1.
2.
3.
REMOVE FACIA - MN
Two T-20
Security Screws
Indicator
Light
7/16” Hex Nut
