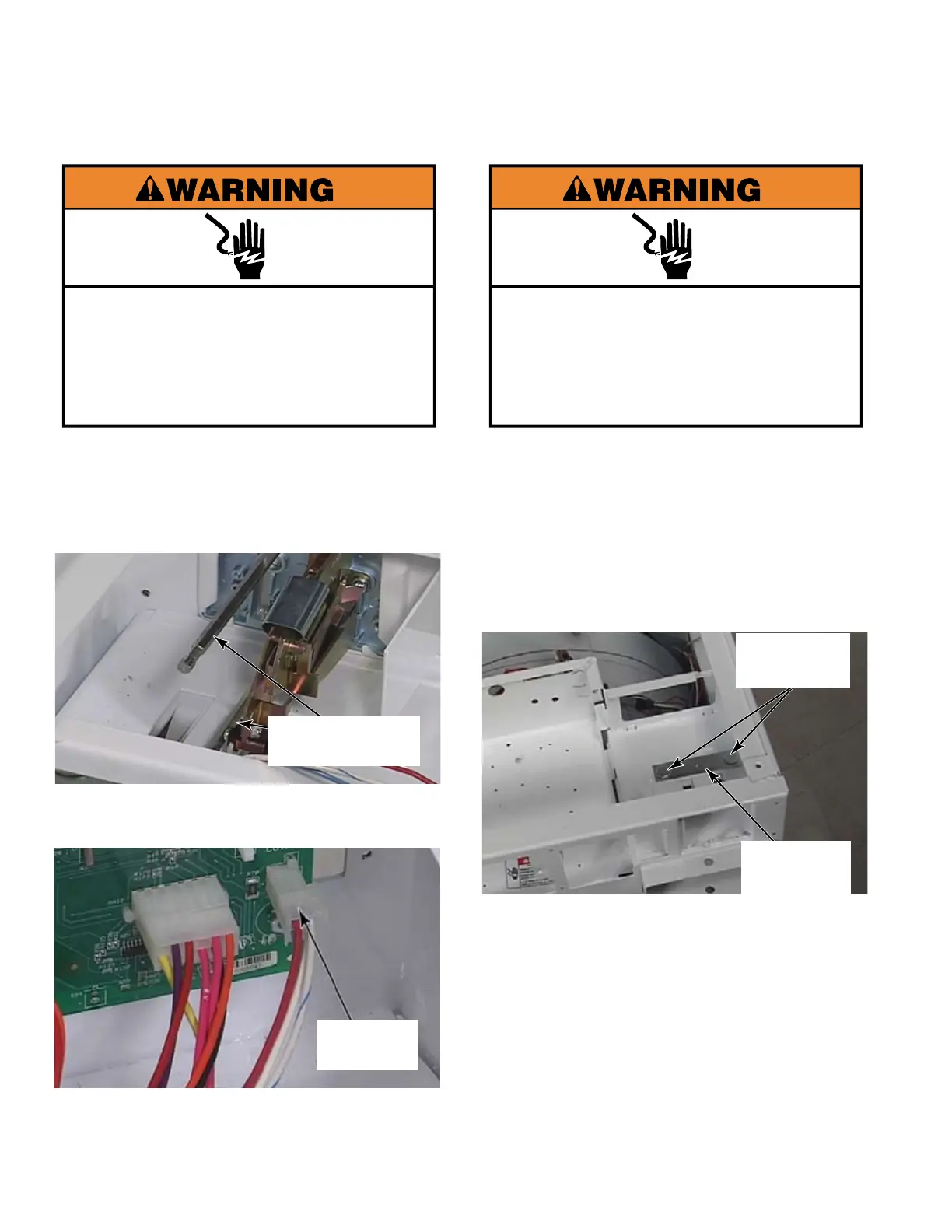

Maytag MDE17CS - Remove Coin Drop; Remove Coin Vault

4-62
Remove the facia (See page 4-50).
Remove two 1/4” security bolts from inside
the collar.
Disconnect the wire connector from the
control board.
Slide the Coin drop out the front of the
collar.
1.
2.
3.
4.
REMOVE COIN DROP
Two 1/4”
Security Bolts
Wire
Connector
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Remove the upper dryer (See page 4-58).
Remove the coin vault switch
(See page 4-61).
Remove two 9/16” hex nuts from the top of
the inside of the coin vault.
Lift off the coin vault retaining bracket off the
top of the coin vault box.
Slide the coin vault box back and remove it
from inside the collar.
1.
2.
3.
4.
5.
REMOVE COIN VAULT
Two 9/16”
Hex Bolts
Coin Vault
Retainer
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
