4-48
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

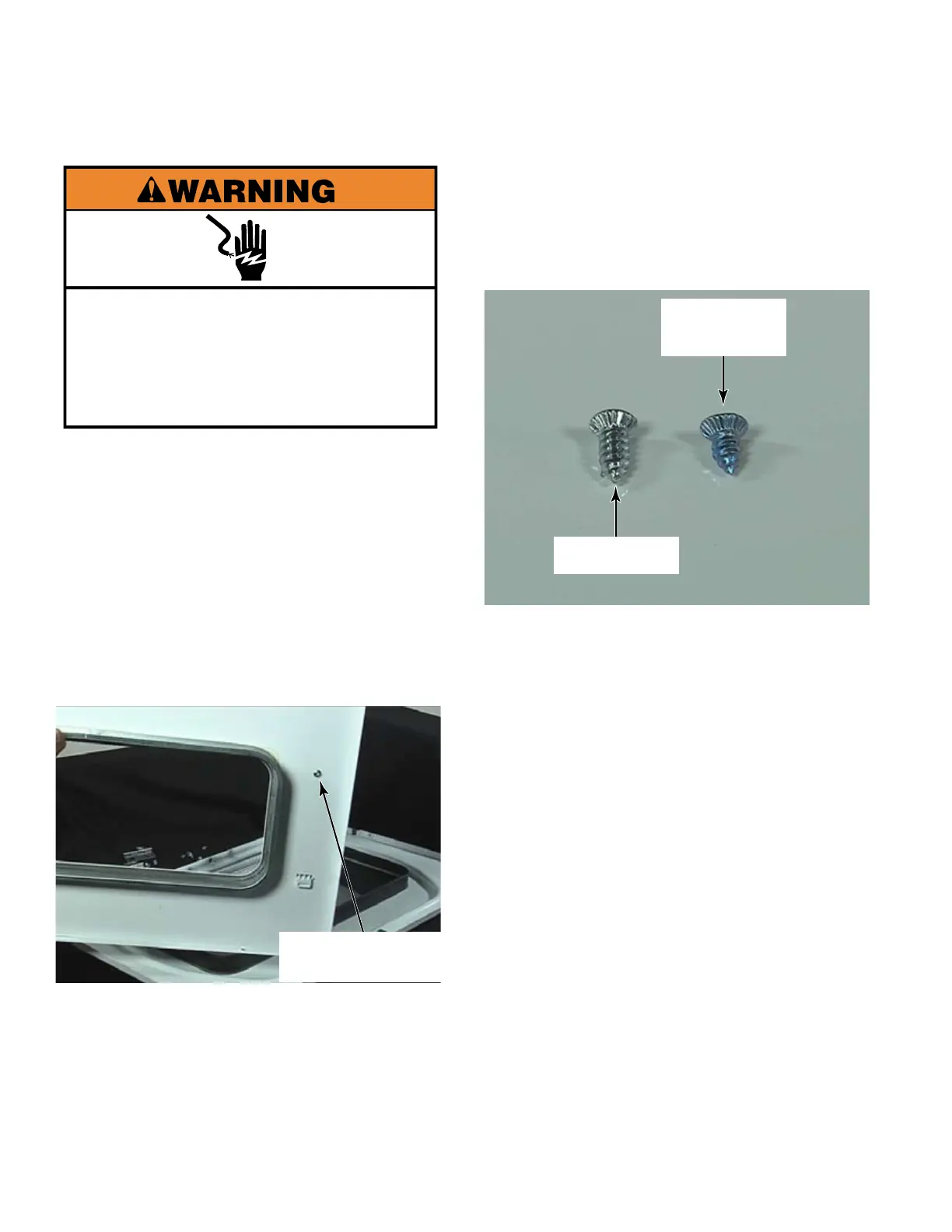

Reversible door with glass
Remove the door from the dryer
(See page 4-18).
Remove the nine screws from around the
edge of the door including the hinges.
Lift the front panel off the inside panel.
Remove the star head screw from the inside
of the front panel.
1.
2.
3.
4.
REMOVE HANDLE FROM STACK DRYER DOOR
Rotate the handle down to unhook the tab
from the slot on the other end.
NOTE: The hinge screws are larger than
the outer door panel screws from the edge
of the door.
5.
One Star Head
Screw
Hinge Screw
Outer Door
Panel Screw
To Next Page
