NOTE: The transformer has a metal oxide
varistor (MOV) attached to it which protects
the transformer and the dryer from a power
surge. If a dryer experiences a second
power surge, the transformer’s MOV will
already have been damaged and will not
protect the transformer or the control board.
NOTE: Electric stack dryers will have an
additional Step Down Transformer, which
is removed the same way as the control
transformer.
Lower the control board bracket
(See page 4-50).
Press the locking tab and disconnect the
two wire connector.
Remove two 1/4” hex head screws that
secure the transformer to the base of the
collar.
1.
2.
3.

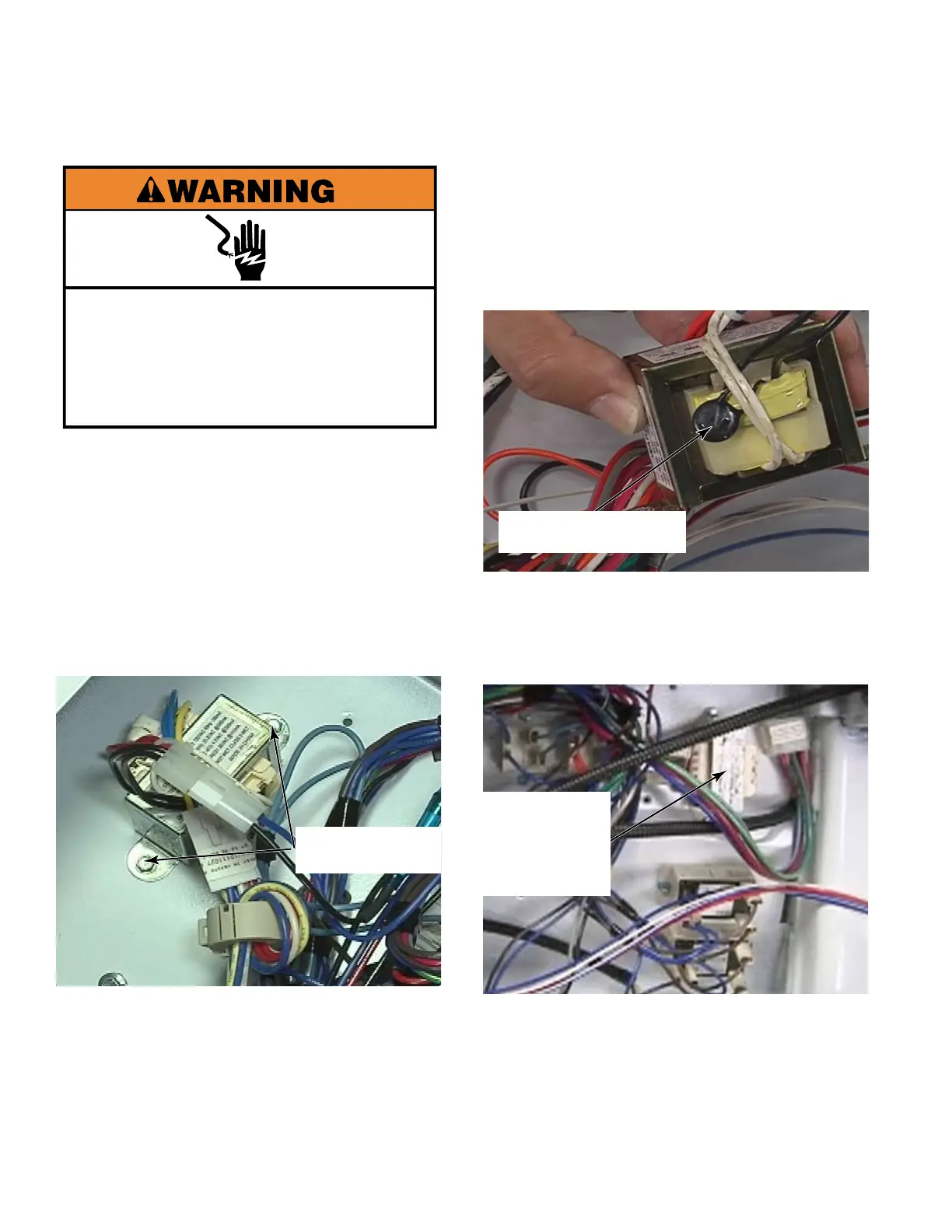

REMOVE CONTROL TRANSFORMER
Two 1/4” Hex
Head Screws
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Metal Oxide Varistor
Step Down
Transformer
In Electric
Stack Dryer
