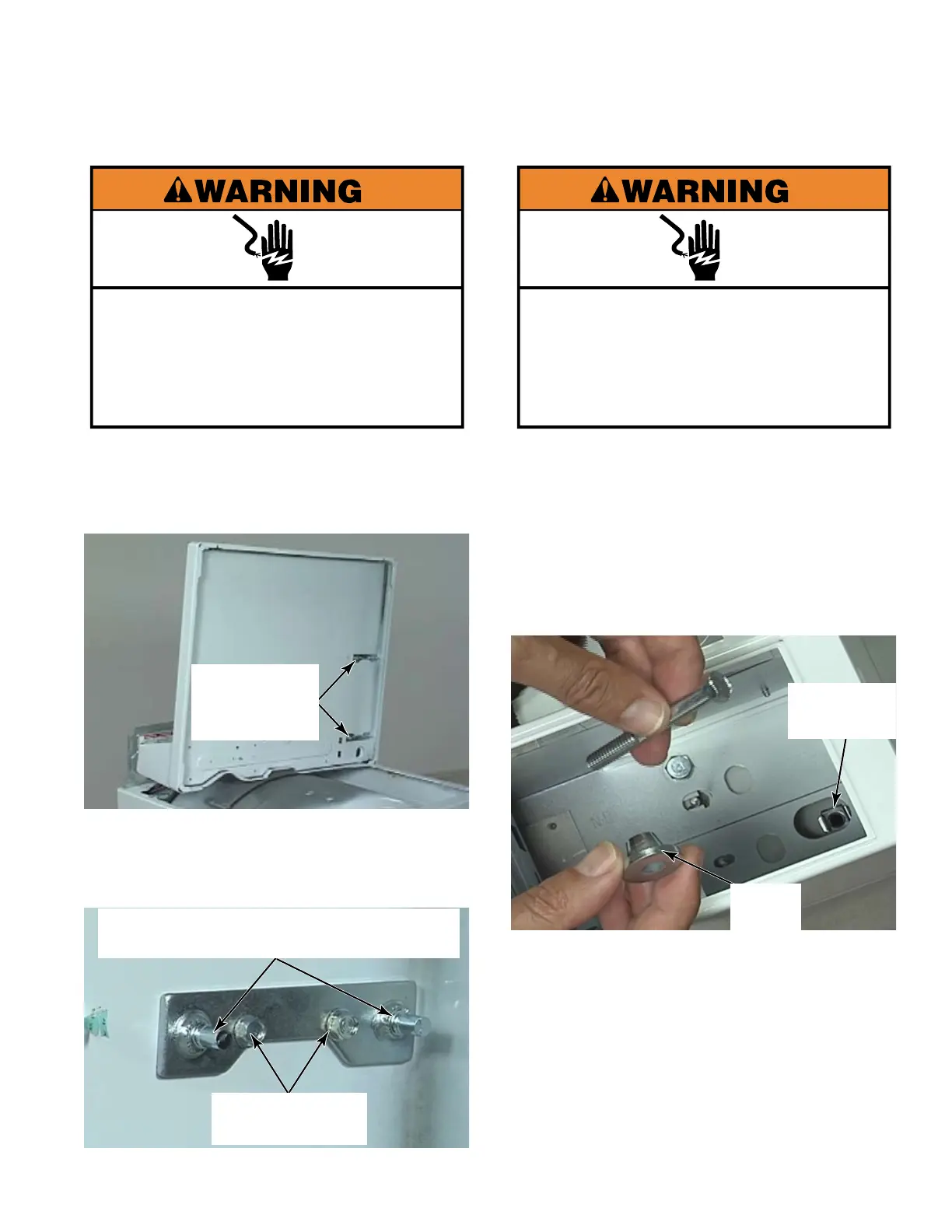

Maytag MDE17CS - Remove Metercase Mounting Brackets - CS; Install Security Bolt & Cone - CS

4-9
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Remove the metercase (See page 4-8).
Remove top of dryer (See page 4-23).
Remove two 5/16” hex head screws in
each bracket. Remove the bracket. These
brackets are what the metercase bolts
screw into.
1.
2.
3.
REMOVE METERCASE
MOUNTING BRACKETS - CS
Metercase
Mounting
Brackets
Two 5/16” Hex
Head Screws
Two Metercase Bolts (These Would Be
Gone If Metercase Was Removed)
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Remove the service access door on top of
the metercase (See page 4-3).
Remove the timer (See page 4-4).
Place the cone, small side facing down,
in the hole at the rear bottom of the
metercase.
Screw the bolt through the cone into the
cage bolt below. Hand tight is sufficient but
can be tightened more if desired.
NOTE: This provides additional security
by bolting the metercase and the top to the
cabinet of the dryer. If this security bolt is
installed it must be removed to remove the
metercase or the top of the dryer.
1.
2.
3.
4.
INSTALL SECURITY
BOLT & CONE - CS
Cone
Hole &
Cage Bolt
