Maytag MDE17CS - Remove Service Cord - CS & MN - Gas Models

4-11
Open the control panel. (See page 4-1).
Disconnect the wire connector coming from
the service cord.
1.
2.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
REMOVE SERVICE CORD - CS & MN - GAS MODELS

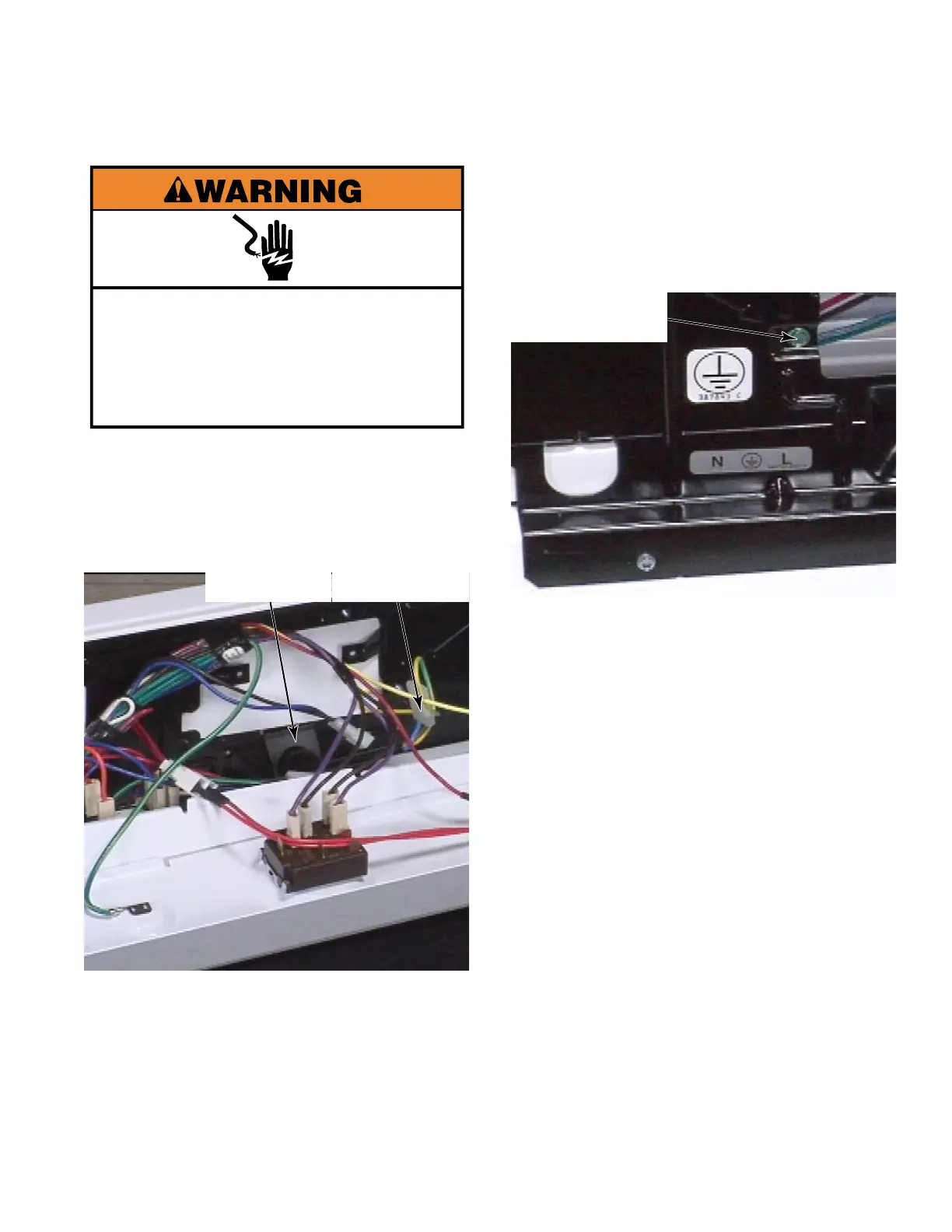

Strain Relief
Clip
Service Cord
Connector
Remove the 5/16” hex head screw that
secures the Earth wire to the cabinet back.
NOTE: Earth screws are painted green and
have machine screw threads to secure them
tightly.
Remove the clip that secures the service
cord strain relief from inside the console by
pulling up and off the strain relief (See photo
in left column).
Pull the service cord out from the back.
3.
4.
5.
5/16” Hex Head
Earth Screw
