Maytag MDE17CS - Remove Power Lead - Electric Heat Dryers

4-57

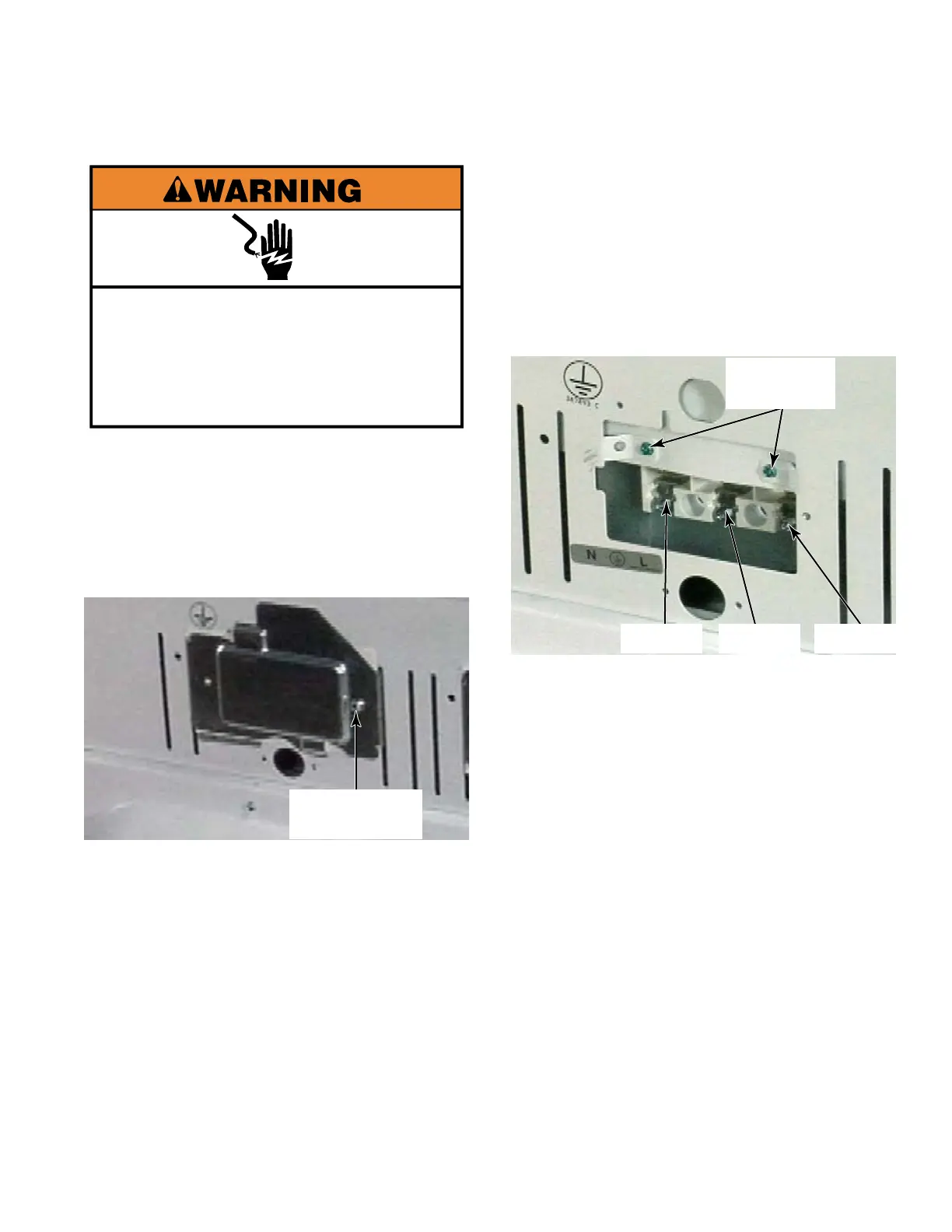

Remove the 1/4” hex head screw that
secures the power cord wire cover to the
back of the dryer.
Rotate the cover to remove the tab that
secures the other side.
The hole below the cover is for the incoming
power cord which should be secured with
two screws and a strain relief.
1.
2.
3.
Behind the cover is the terminal block and
a sticker that shows the left connector is
Neutral, the Center connector is Earth and
the right connector is Line or Hot.
There are two green Earth connection
screws at the top of the terminal block
opening.
4.
5.
REMOVE POWER LEAD
- ELECTRIC HEAT DRYERS
1/4” Hex
Head Screw
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Two Earth
Screws
Neutral Earth Line
