Electric Shock Hazard
Electric earthing is required on this
dryer.
Do not earth to a gas pipe.
Do not have a fuse in the neutral or
earthing circuit.
Check with a qualified electrician to be
sure the dryer is properly earthed.
Failure to follow these instructions
could result in death, fire, or serious
injury.

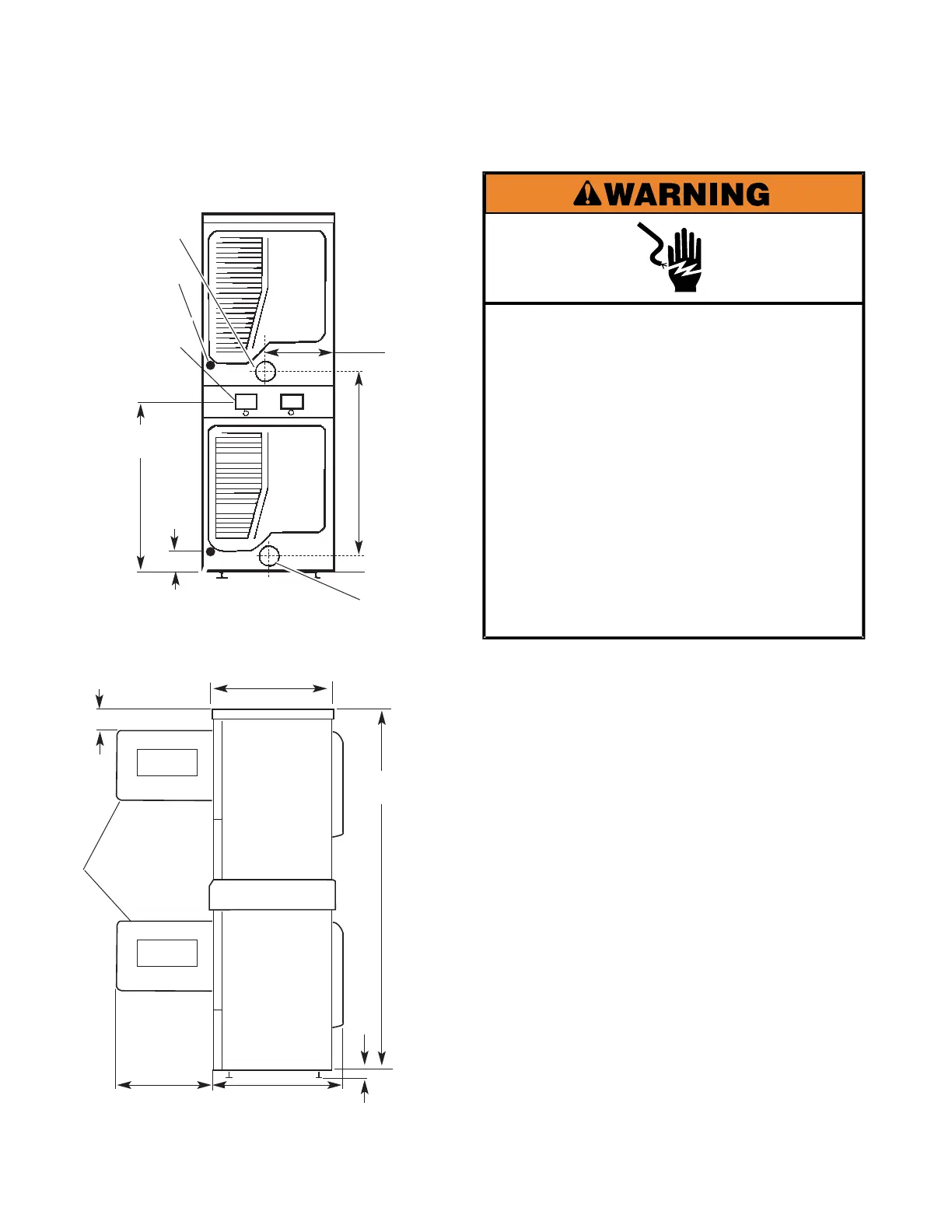

Stack Dryer Dimensions
ELECTRICAL
REQUIREMENTS
The Stack Electric Dryer is supplied
without an electric cord and plug. It must be
connected by a competent electrician to a
single-phase electricity supply at the voltage
shown on the dataplate, using a suitable xed
wiring installation in accordance with local and
national wiring regulations.
A 3-wire cord of minimum conductor size
6 mm 2 cross section area should be used.
A 45A supply fuse should be used, and
a switch having a contact separation in
both poles that provides full disconnection
under over-voltage category III conditions
must be incorporated into the fixed wiring
in accordance with local wiring regulations.
The dryer should be positioned so that the
disconnection switch is easily accessible to
the user.
n
n
743 mm
(29
1
⁄4")
app rox. 25 mm
(1" )
603 mm
(23
3
⁄4")
door
1950 mm
(76
3
⁄4")
686 mm (27")
140 mm (5
1
⁄2")
top dryer
exhaus t
bottom
dryer
exhaus t
1041 mm
(41")
343 mm
(13
1
⁄2" )
940 mm
(37")
79 mm
(3
1
⁄8" )
137 mm
(5
3
⁄8" )
bottom
dryer
gas line
NOT E : G as lines
located 38 mm
(1
1
/2") inward from
adja c ent side.
top dryer
gas line
electrical
c
onnection
Back View
Side View
To Next Page
