Maytag MDE17CS - Remove Door Switch Relay - CS & MN; Remove Control Panel - CS

4-2
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
REMOVE CONTROL
PANEL - CS

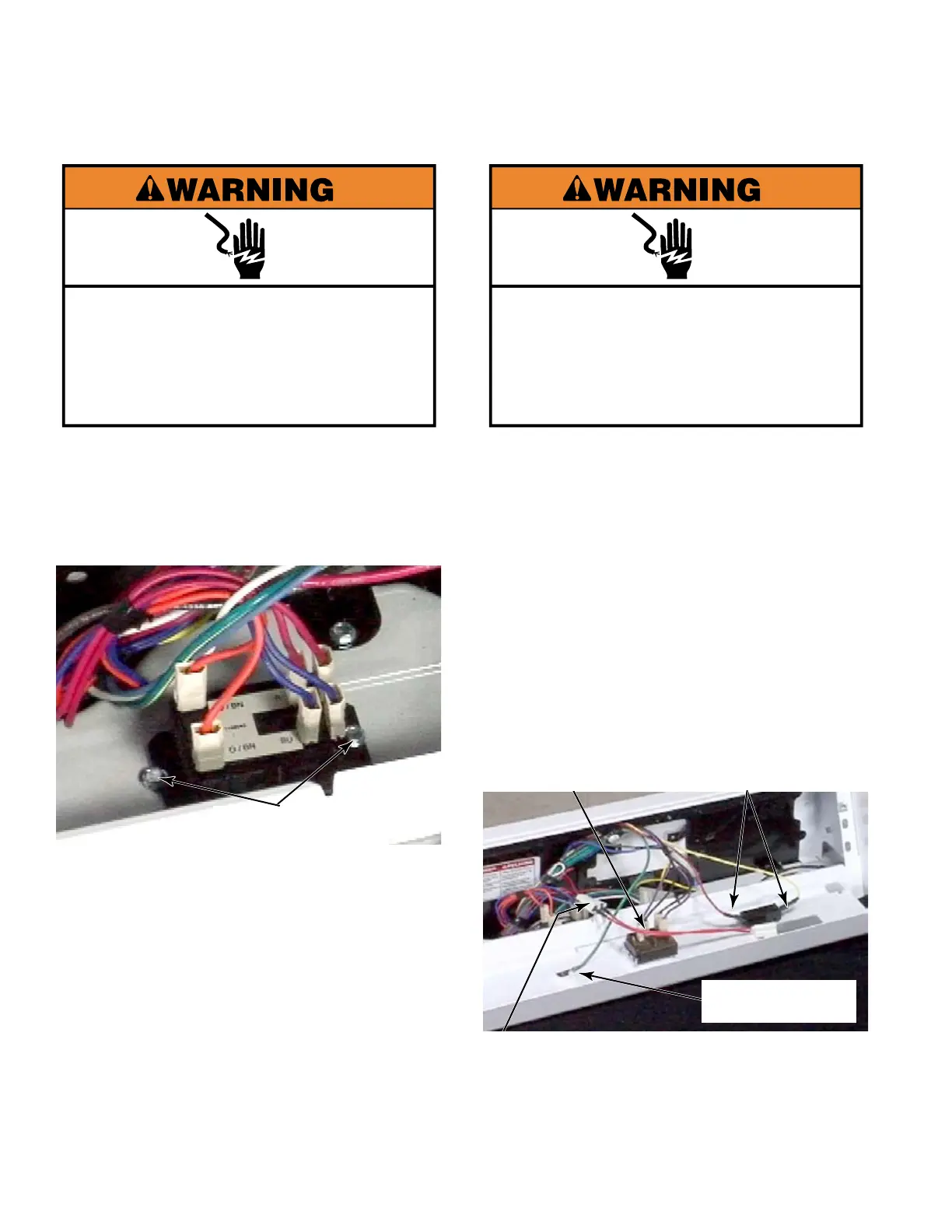

REMOVE DOOR SWITCH
RELAY - CS & MN
Open the control panel. (See page 4-1)
Remove two 1/4” hex head screws that
secure the door switch relay to the base of
the control panel.
Disconnect the six wire connectors from the
top of the door switch relay.
1.
2.
3.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
2 Hex Head
Screws
Open the control panel. (See page 4-1).
Disconnect two wire connectors for the LED
indicator light.
Disconnect two spade connectors from the
start switch.
Disconnect four spade connectors from the
selector switch.
Disconnect one Earth wire clip.
1.
2.
3.
4.
5.
4 Selector Switch
Connectors
1 Earth Wire Clip
2 Start Switch
Connectors
2 Indicator Light
Connectors
