4-41
Remove the lower service panel
(See page 4-21).
Remove the two star head screws that
secure the bracket.
Lift the bracket off the coils.
Lift the coils off the posts and disconnect
the wire connector from each coil.
NOTE: Make sure the sleeve remains
on the post when the 3 terminal coil is
removed.
NOTE: Over time different gas valve
manufacturers may be used and the coil
removal may differ slightly.
1.
2.
3.
4.

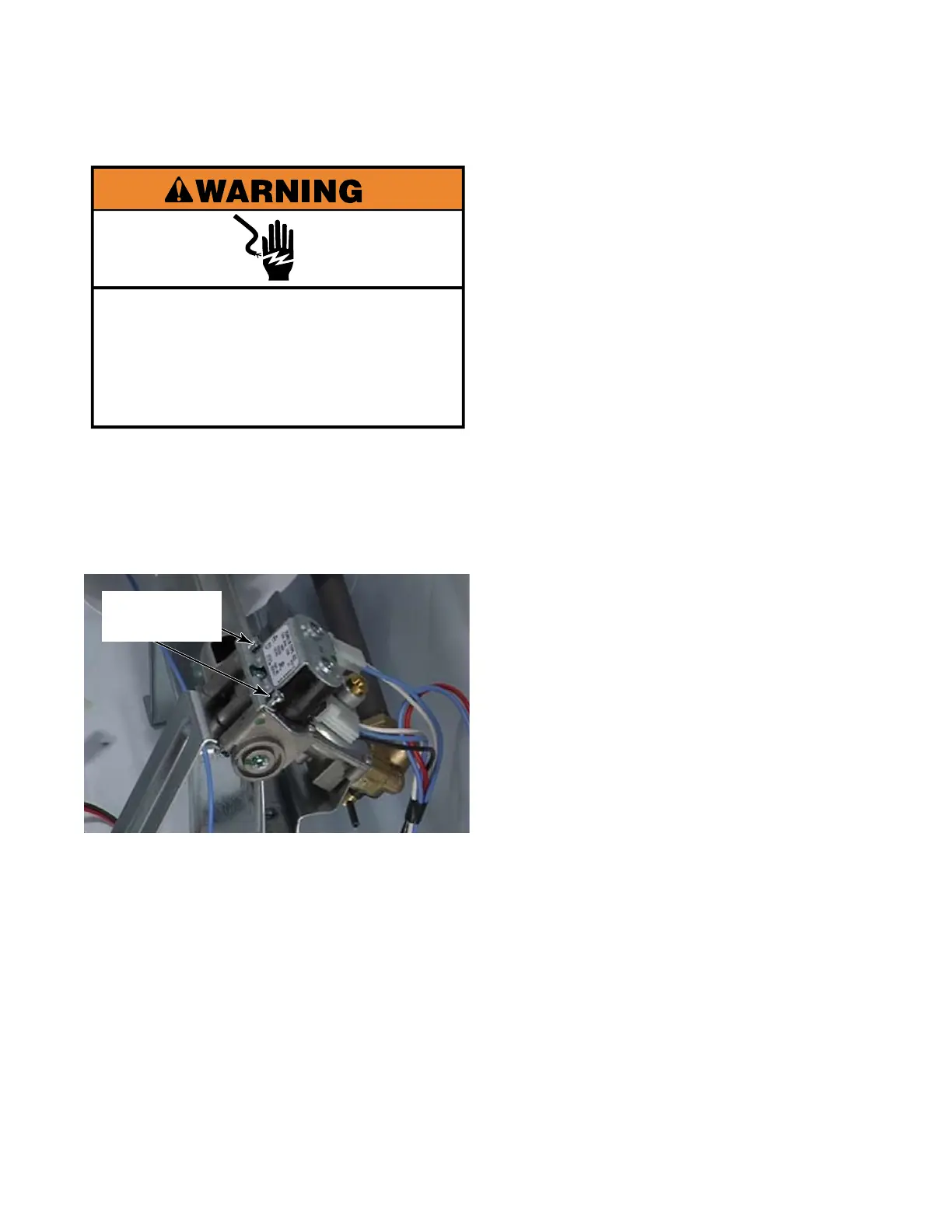

REMOVE GAS VALVE COILS
Two Star
Head Screws
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
To Next Page
