5-16
6 button user interface membrane switch
Contact Contact Button
4 5 A
2 5 B
3 5 C
4 1 D
2 1 E
3 1 F
2 3 41 5
D E
F
C
B
A

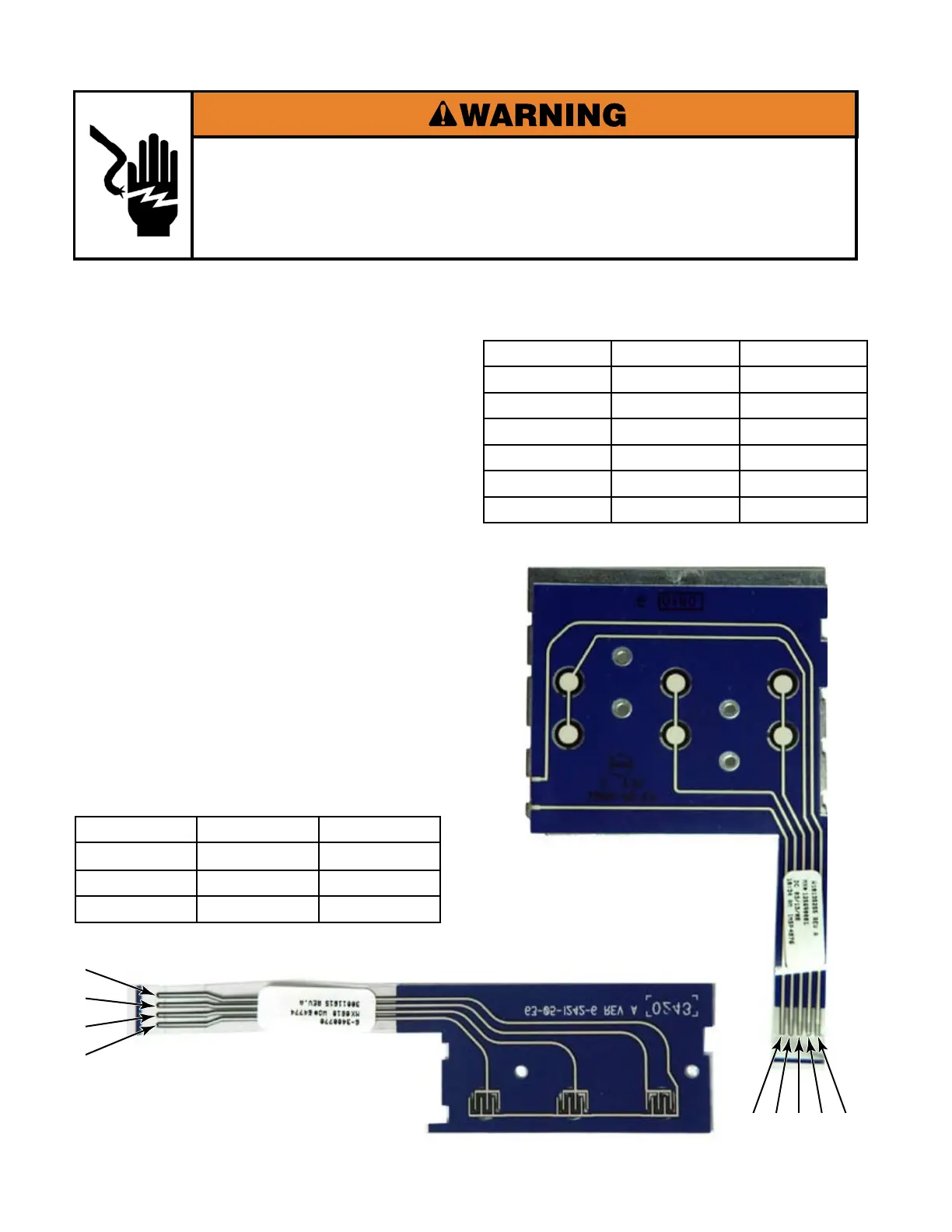

3 AND 6 BUTTON USER INTERFACE MEMBRANE SWITCH
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Unplug dryer or disconnect power.
Turn off gas supply to dryer.
Remove the user interface membrane
switch (See page 4-52).
Set ohmmeter to the R X 1 scale.
Set digital ohmmeters to lowest scale.
Touch the ohmmeter test leads to the
contacts listed. Press the button listed for
each pair of contacts. The meter should
indicate continuity (0 Ω). If the meter
indicates an open circuit (infinite Ω), replace
the membrane switch.
3 button user interface membrane switch
Contact Contact Button
1 4 A
2 4 B
3 4 C
1.
2.
3.
4.
5.
1
2
3
4
A B C
To Next Page
