Mec 3072ES - Primary Machine Components

"3072ES / 3772ES / 3772ES HD" Service & Parts Manual October 2008
Page V
ART_2345 R1
1
5
REAR
FRONT
FRONT
3072ES
Standard
3772ES
with Outrigger Option
Work
Platform
Extension Deck
Guardrails
Entry
Ladder
Limit
Switch
Outriggers
(option)
Scissor
Assembly
(Beams)
Maintenance
Lock
Battery
Compartment
Pump
Compartment
Lift
Cylinder
Lift
Cylinder
Document Case
Upper
Controls
Extension Deck
Lock Handle
Lower
Controls
Emergency
Lowering Cable
3072ES
Power to Platform
(option)

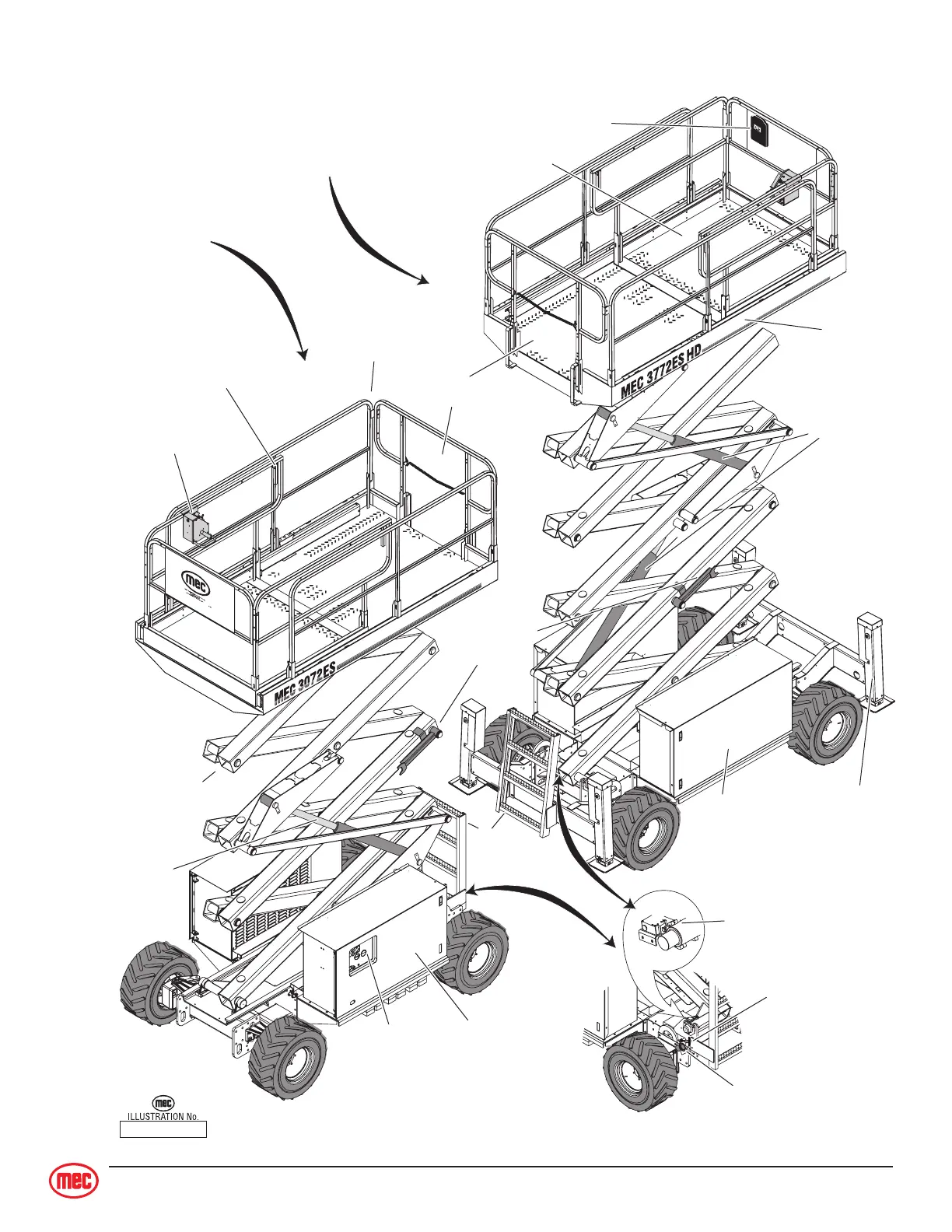

PRIMARY MACHINE COMPONENTS
