October 2008 "3072ES / 3772ES / 3772ES HD" Service & Parts Manual
Page 3-8

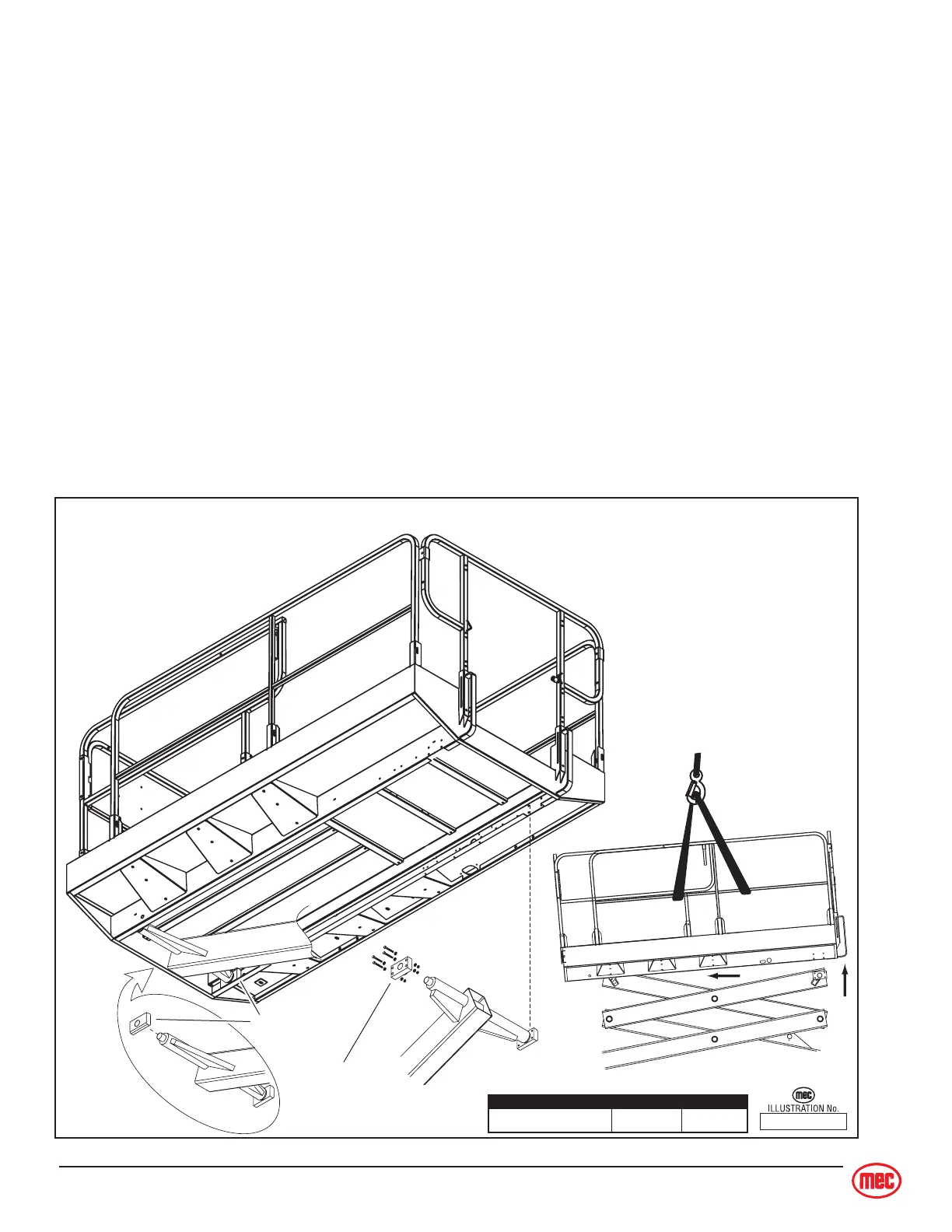

PLATFORM REMOVAL
1. Raise platform and support with the maintenance lock.
2. Connect overhead crane by appropriate lifting device to platform.
3. Remove the terminal strip cover and disconnect all platform wires. Remove any components
that will obstruct the scissor slide path.
4. Remove the bolts from both fixed blocks at the rear of the platform.
5. Lift the rear of the platform until the fixed blocks are clear.
6. Slide the platform assembly forward until the slide blocks align with the slide track opening at
the rear of the platform.
7. Remove the platform assembly.
8. Installation is reverse of removal.
ART_2589
TORQUE Ft. lbs. Nm
Fixed Block Bolts 86 - 96 116 - 180
Slide Block
Fixed Block
