Mec 3072ES - GP400 Matrix Module

October 2008 "3072ES / 3772ES / 3772ES HD" Service & Parts Manual
Page 5-10

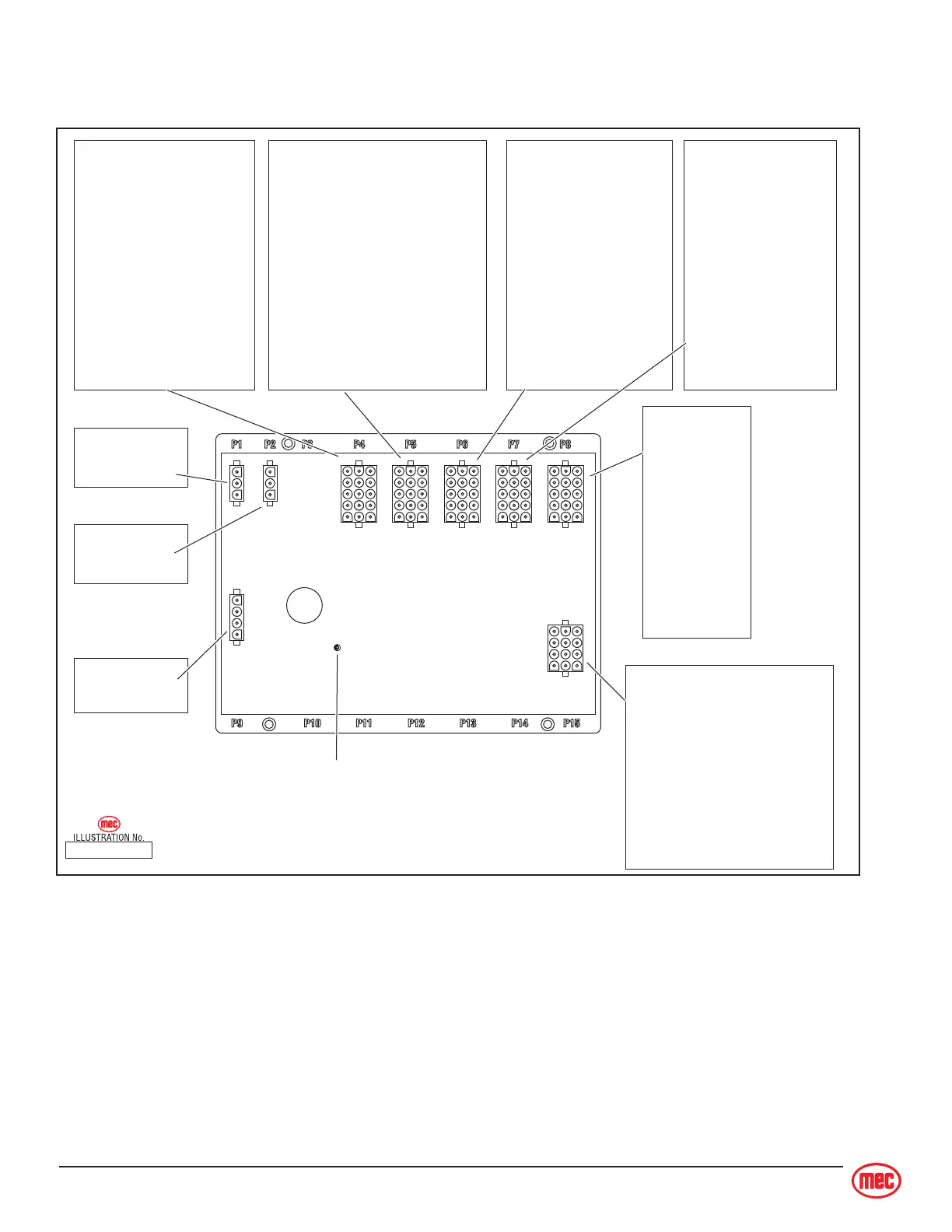

GP400 Matrix Module
Located in Control Module behind lower controls.
ART_2573
1 3
13 15
13
10 12
1 3
13 15
1 3
13 15
1 3
13 15
1 3
13 1314
13 15
Diagnostic
LED
EZ-Cal
Connection
P1-1 — CAN BUS H
P1-2 — CAN BUS L
P1-3 — Ground
P2-1 — not used
P2-2 — not used
P2-3 — not used
UPPER CONTROLS
P5-1 — Lift Valve
P5-2 — Steer Right
P5-3 — Steer Left
P5-4 — Drive Forward
P5-5 — Drive Reverse
P5-6 — Alarm
P5-7 — High Torque
P5-8 — High Speed
P5-9 — Hour Meter
P5-10 — Outrigger Extend Valve
P5-11 — Outrigger Retract Valve
P5-12 — Switch Power Supply, Battery +
P5-13 — not used
P5-14 — not used
P5-15 — not used
OUTRIGGER VALVE
S
P6-1 — RETRACT, Front Right
P6-2 — RETRACT, Front Left
P6-3 — RETRACT, Rear Right
P6-4 — RETRACT, Rear Left
P6-5 — EXTEND, Front Right
P6-6 — EXTEND, Front Left
P6-7 — EXTEND, Rear Right
P6-8 — not used
P6-9 — not used
P6-10 — EXTEND, Rear Left
P6-11 — not used
P6-12 — not used
P6-13 — not used
P6-14 — not used
P6-15 — not used
BASE & LOWER CONTROLS
P7-1 — Valve Supply
P7-2 — Base Selected
P7-3 — UP - Base
P7-4 — Platform Selected
P7-5 — Limit Switch
P7-6 — not used
P7-7 — DOWN - Base
P7-8 — not used
P7-9 — not used
P7-10 — not used
P7-11 — not used
P7-12 — not used
P7-13 — not used
P7-14 — not used
P7-15 — not used
P8-1 — not used
P8-2 — not used
P8-3 — not used
P8-4 — not used
P8-5 — not used
P8-6 — not used
P8-7 — not used
P8-8 — not used
P8-9 — not used
P8-10 — not used
P8-11 — not used
P8-12 — not used
P8-13 — Ground
P8-14 — not used
P8-15 — not used
OUTRIGGER LIMIT SWITCHES
P15-1 — STOWED, Rear Left
P15-2 — STOWED, Rear Right
P15-3 — STOWED, Front Right
P15-4 — STOWED, Front Left
P15-5 — LOAD SENSE, Rear Left
P15-6 — LOAD SENSE, Rear Right
P15-7 — LOAD SENSE, Front Right
P15-8 — LOAD SENSE, Front Left
P15-9 — not used
P15-10 — LOAD SENSE Switch Supply
P15-11 — STOWED Switch Supply
P15-12 — not used
P4-1 — not used
P4-2 — not used
P4-3 — not used
P4-4 — not used
P4-5 — not used
P4-6 — not used
P4-7 — not used
P4-8 — not used
P4-9 — not used
P4-10 — Rear Wheel Bypass V
alve
P4-11 — n
ot used
P4-12 — Line Contractor B+
P4-13 — not used
P4-14 — Down Valve 1
P4-15 — not used
