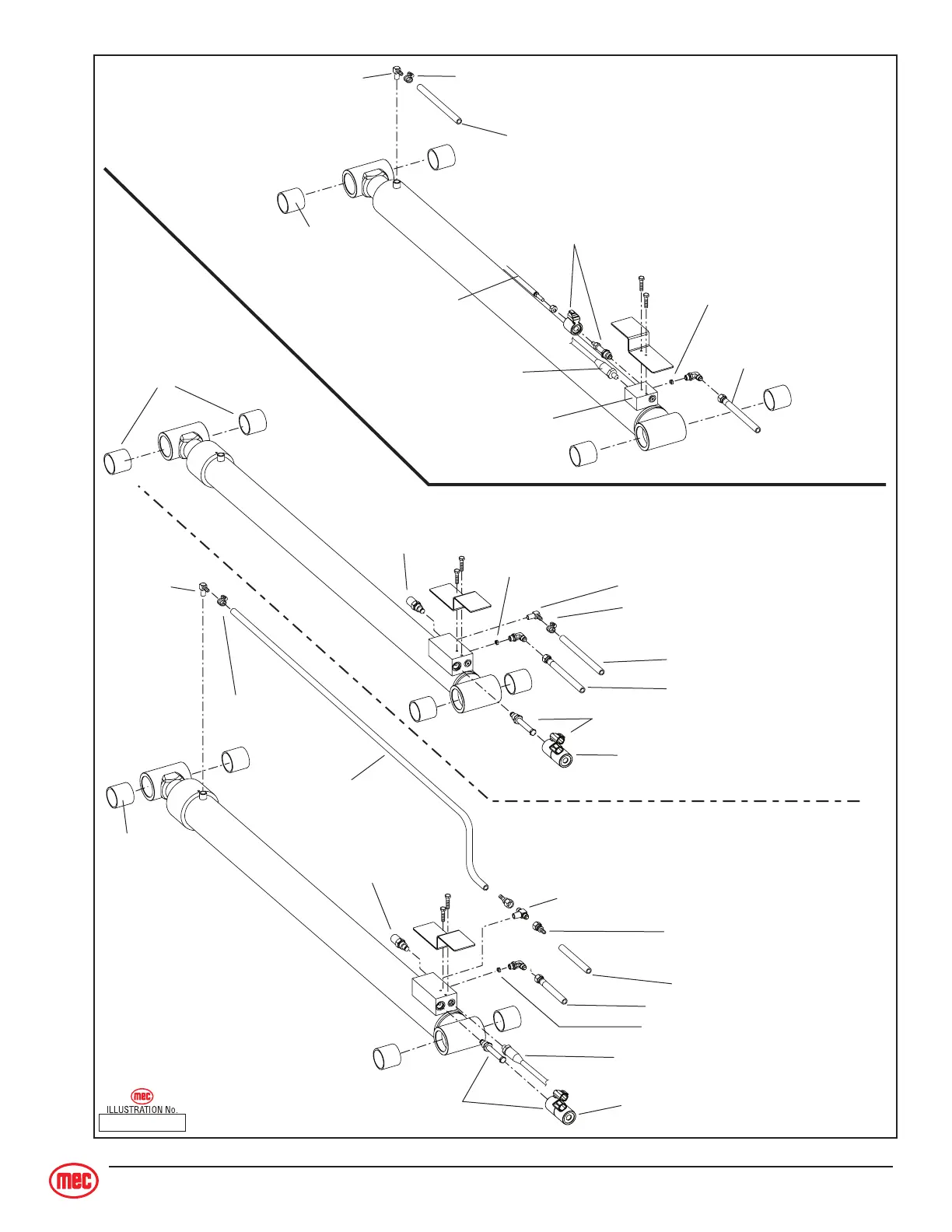

Cylinder Valve Manifold
Pressure Sensor
Down Valve and Solenoid
3072 LIFT CYLINDER
Pressure Hose
Orifice
Emergency Lowering Cable
Vent Hose
Bearing
Barbed Fitting
Hose Clamp
3772 LOWER LIFT CYLINDER
Down Valve and Solenoid
Return Hose
2 Barbed Straight Fittings
and Hose Clamps
Pressure Hose
Pressure Sensor
Tee Fitting
Orifice
Vent Hose
Barbed
Elbow
Fitting
Hose Clamp
Bearing
Relief Valve
Emergency Lowering Solenoid
3772 UPPER LIFT CYLINDER
Down Valve and Solenoid
Emergency Lowering Solenoid
Orifice
Return Hose
Barbed Elbow Fitting
Hose Clamp
Relief Valve
Bearing
Pressure Hose
