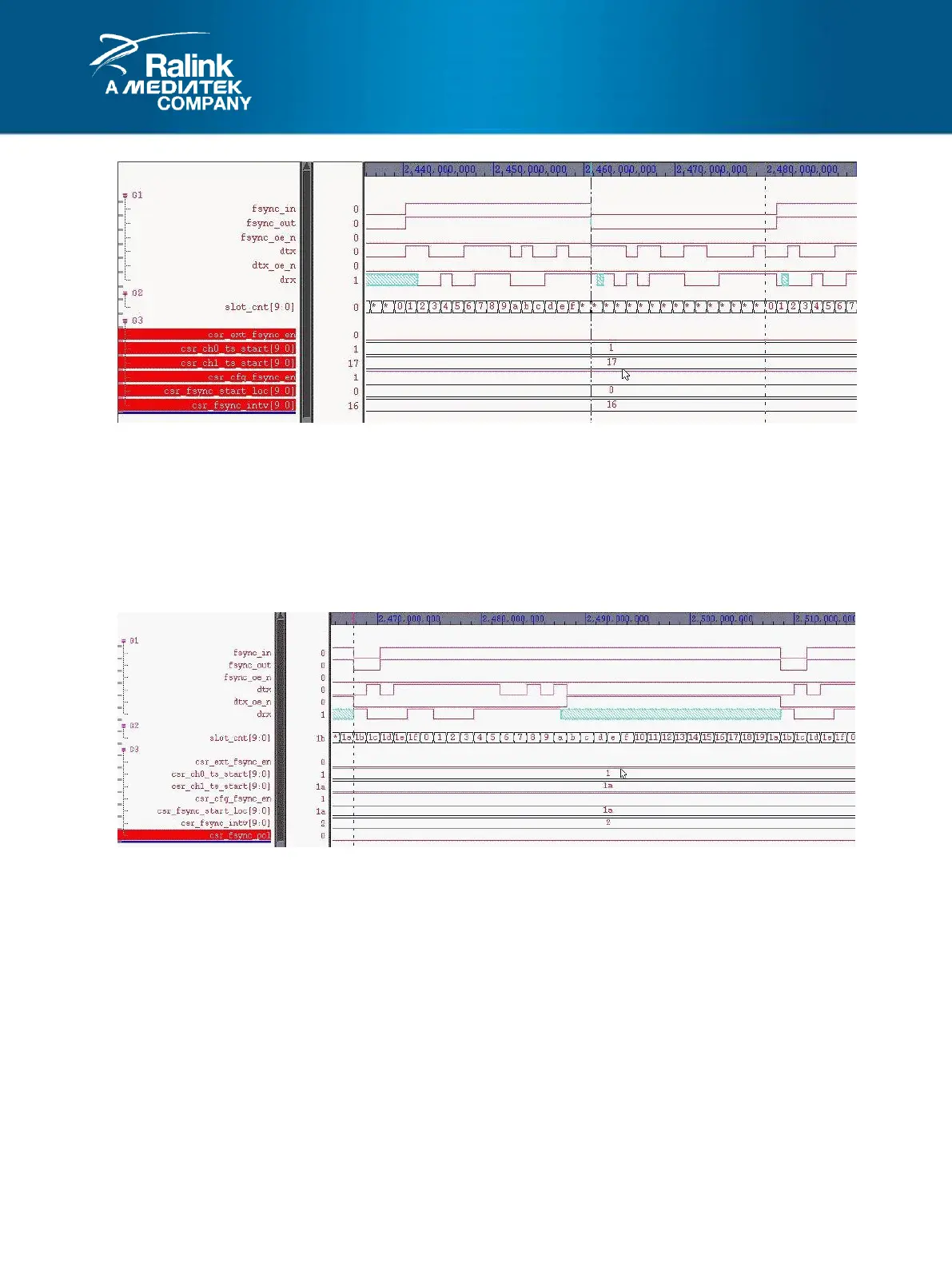

Case 3:
CFG_FSYNC Register: CFG_FSYNC_EN = 1, START_LOC=0x1A, interval=2
CH0_CFG Register: TS_START=1 (disable)
CH1_CFG Register: TS_START=0x1A
PCM_CFG Register: LONG_FSYNC=1’b0, FSYNC_POL=1’b0 (LOW active), DRX_TRI=1’b0, SLOT_MODE=3’b0,
RAW16-bits
