14 - 8 VM600 MPS hardware manual (standard version) MAMPS-HW/E
Edition 17 - February 2018
Detecting problems in the VM600 MPS rack
MAINTENANCE AND TROUBLESHOOTING
14.6.2.5 MPC4 card
(1) Before replacing a card
Where possible, various MPS system parameters and other information should be read
before replacing the MPC4 card. We recommend sending the following information to your
Meggitt Sensing Systems representative in order to help the diagnosis of any problems:
• Output states
• The system status
• The system identification
• Status of latched data.
This should be done using the VM600 MPSx software (MPS1 is shown in Figure 14-2). Select
the card in question (for example, slot 3) and use the following menu bar commands to
capture the information:
Communications > From MPC > Read Outputs
Communications > From MPC > Read System Status
Communications > From MPC > Read System Identification
Communications > From MPC > Read Status Latch Data.

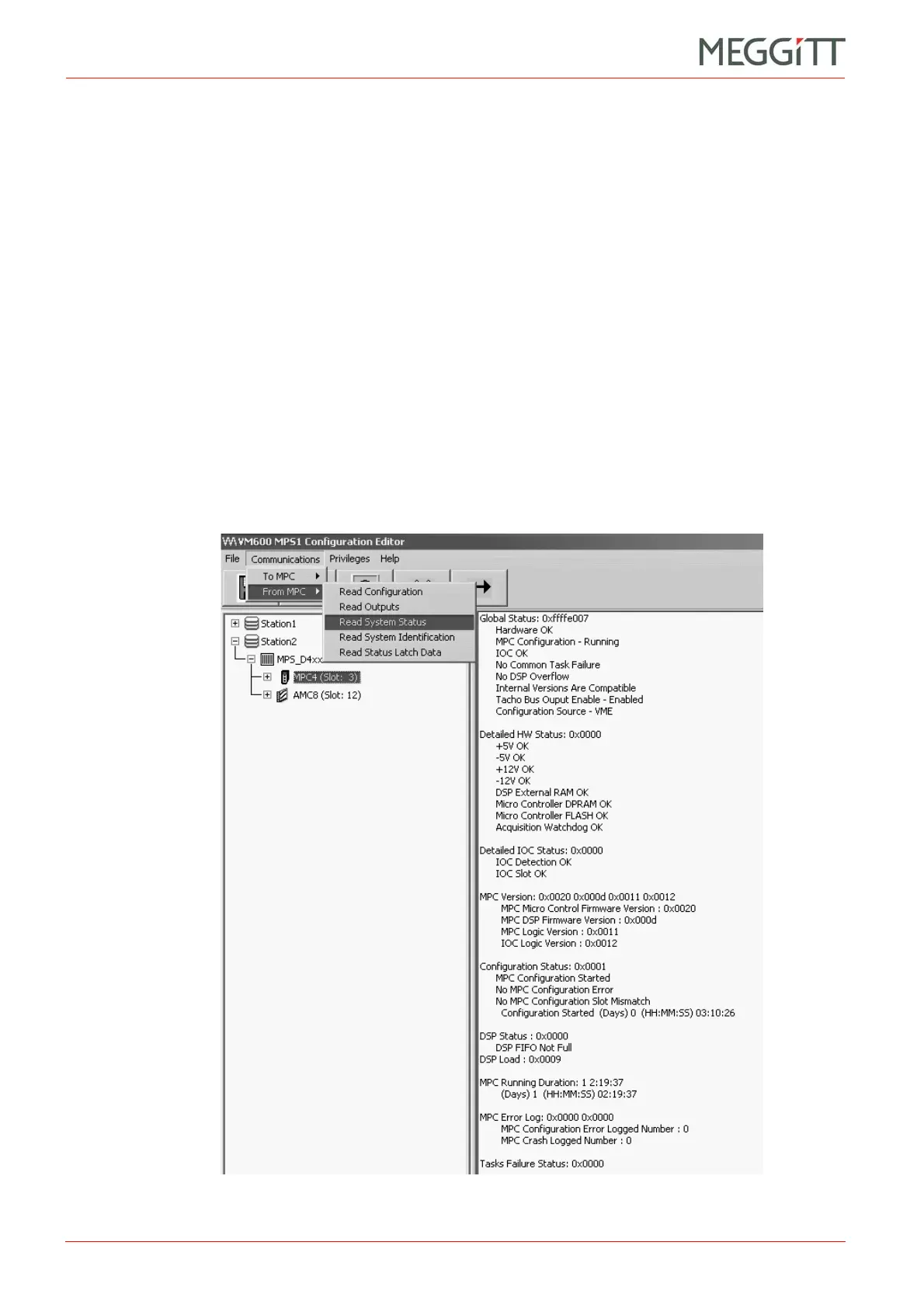

Figure 14-2: VM600 MPS software menu bar commands used to obtain
MPC4 card information
