RPS6U rack power supply (ABE04x only)
OVERVIEW OF VM600 MPS HARDWARE
2.10.9.10 AC-input (120/230 V
AC
) panel with individual inputs (screw-terminal connectors)
This rear panel has two AC inputs (120/230 V
AC
) with screw-terminal connectors and
rear-panel fuses that provide individual inputs to the AC-input version of the RPS6U power
supplies in a VM600 rack.
Figure 2-25 shows:
a. The associated panel at the rear of the ABE04x rack
Rear panel ordering number: 200-582-916-NHh
(equivalent VM600SYS order option code: F160).
b. Details of the associated VM600 rack power supply wiring.
(The front panel of the AC-input version of the RPS6U rack power supply is shown in
Figure 2-15.)
A VM600 rack power supply solution using this AC-input panel is intended for use with two
AC-mains (120/230 V
AC
) supplies, that is, a non-redundant external power-supply system.
vibro meter
DATA
MATRIX
2D

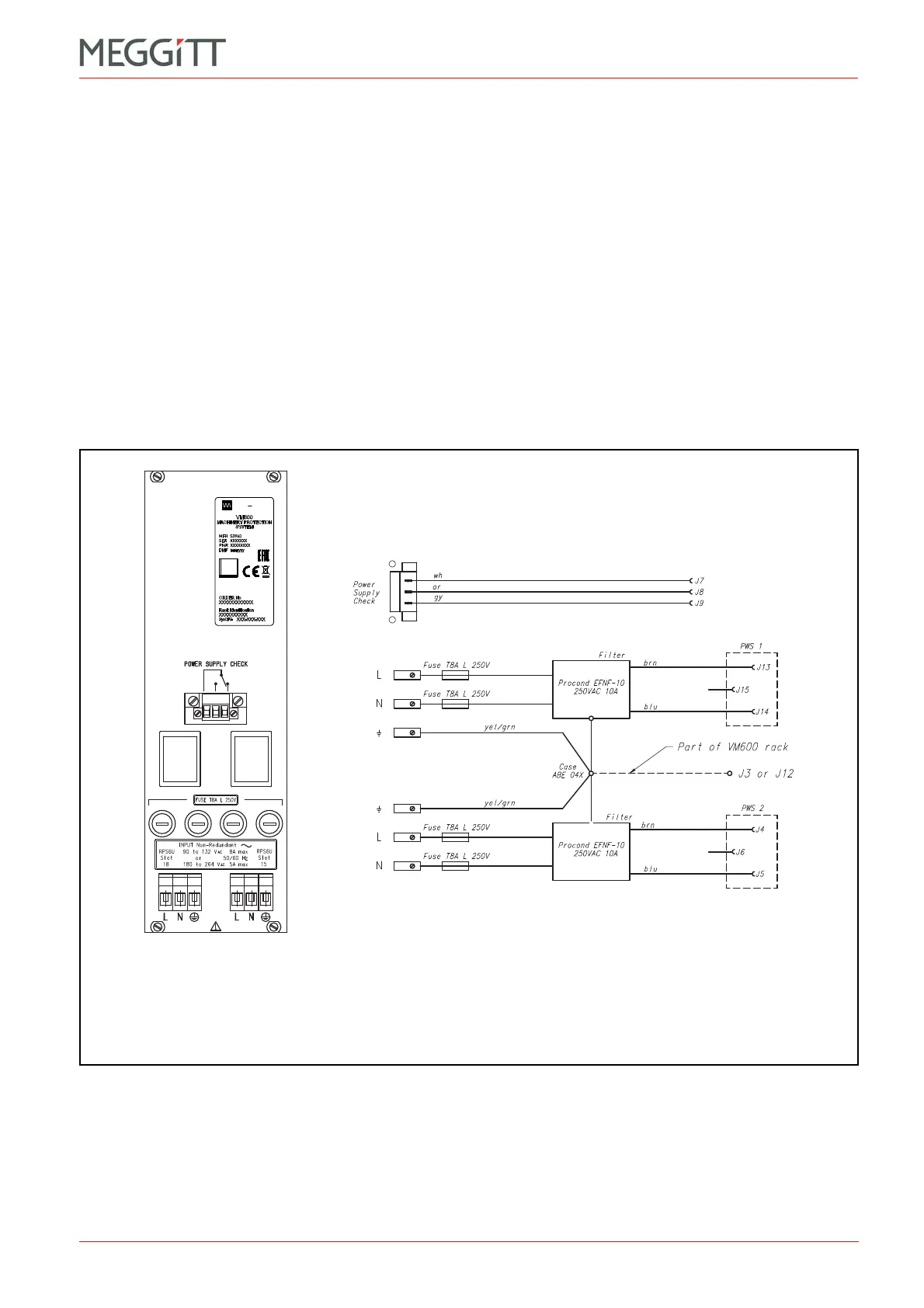

Figure 2-25: AC-input (120/230 V
AC
) panel with individual inputs
(screw-terminal connectors)
(a) Rear panel (b) Wiring details
(Rear panel
connections)
(Internal to
VM600 rack)
