Mindray M5

Probes and Biopsy
18-33

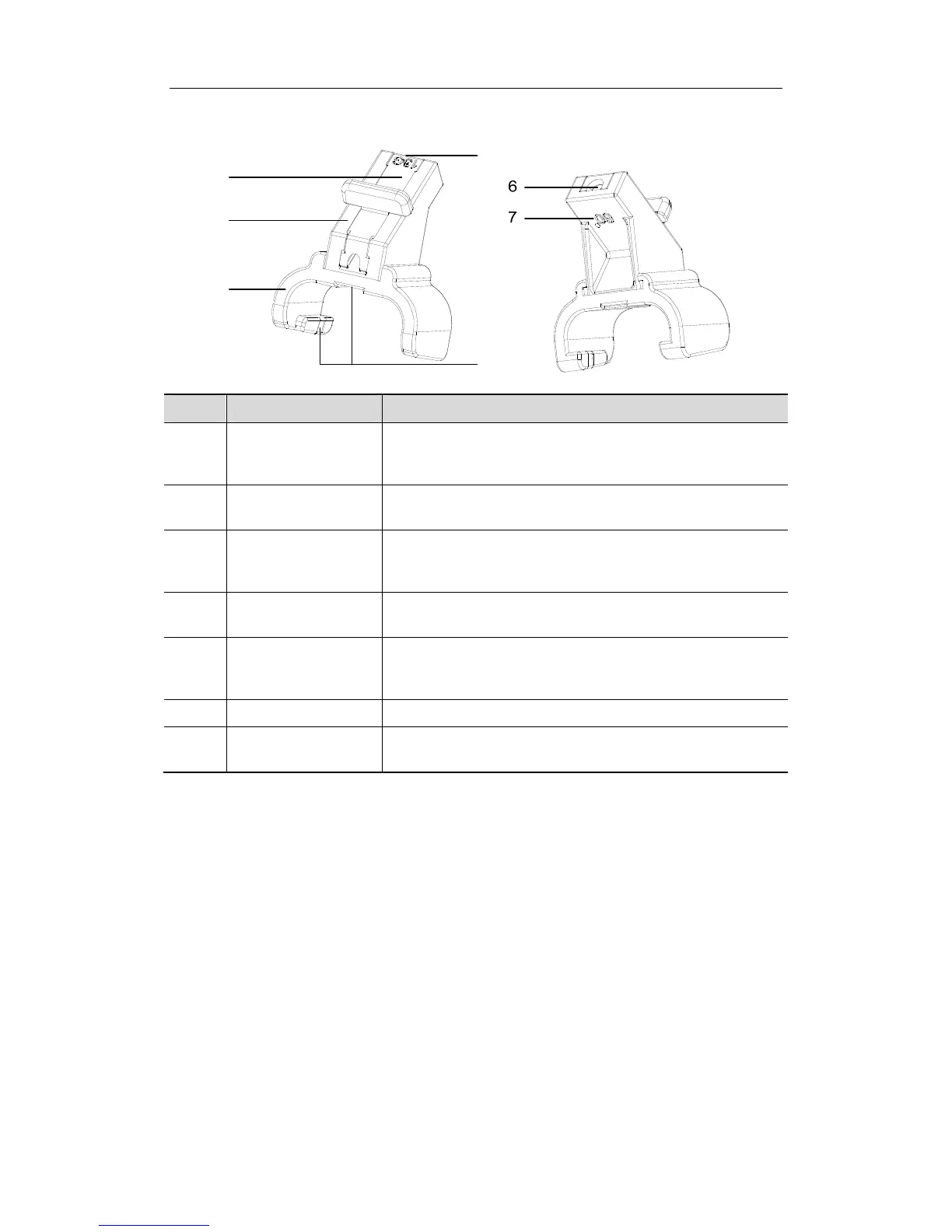

Plastic/needle detachable needle-guided bracket:

1
2
3
4
5
No. Name Description
<1> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles
<2> Angle block
Used for determining the angle of the biopsy; there are
three specifications of blocks of angle
<3>
Support of
needle-guided
bracket
Used for installing the needle-guided bracket on the
transducer
<4>
Specification of
guiding block (13G)
Matched with the corresponding biopsy needle (13G)
<5>
Groove and tab of
the needle-guided
bracket
Respectively matched with the tab and groove of the
transducer
<6> Needle guide hole Used for installing the biopsy needle
<7>
Specification of
angle block (60°)
Corresponding to the size of the biopsy angle (60°)
