Mindray M5

Probes and Biopsy
18-34

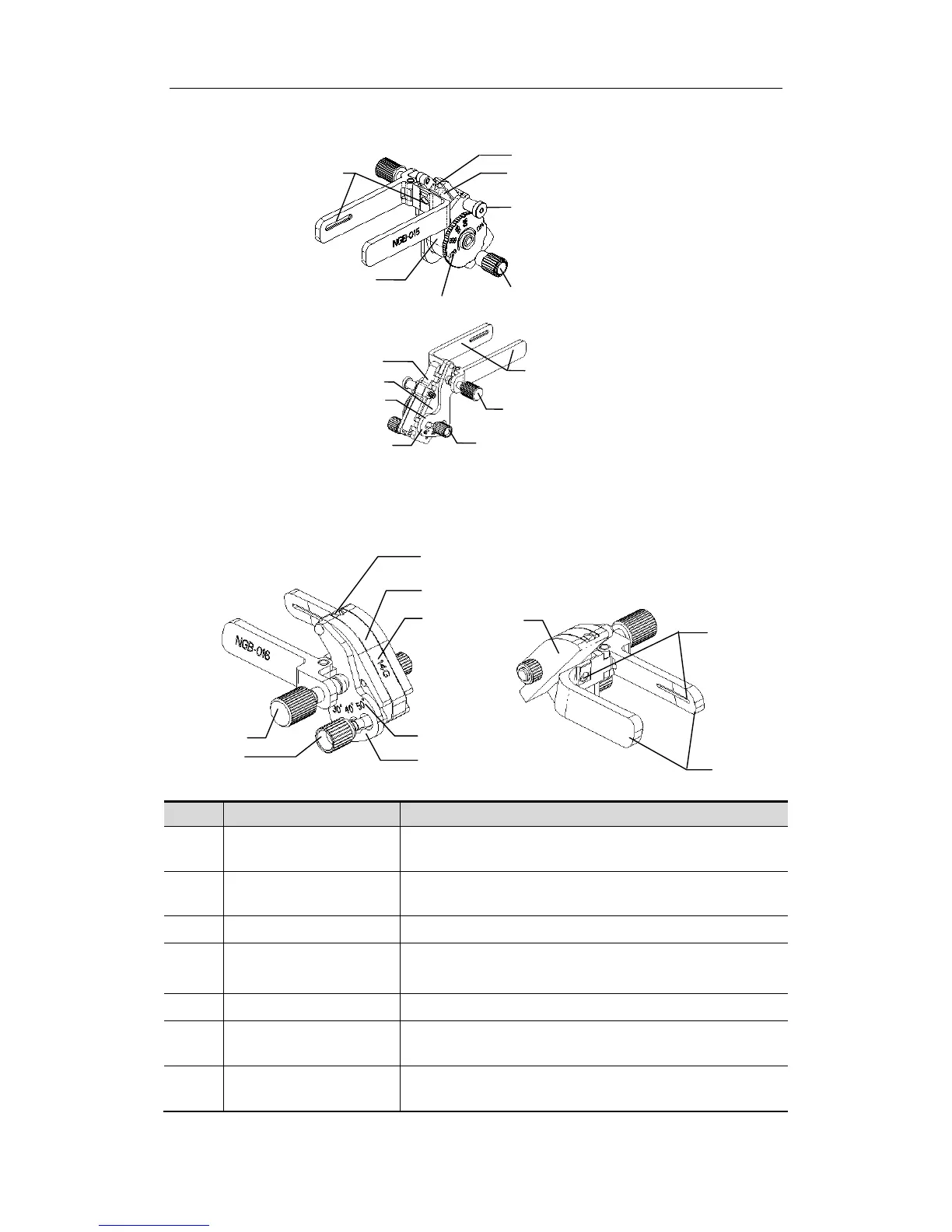

 NGB-015
 NGB-016
No. Name Description
<1>
Clamp of
needle-guided bracket
Used for installing the needle-guided bracket on the
probe.
<2>
Groove of the
needle-guided bracket
Matches with the tab of the probe.
<3> Angle adjusting base There are 3 types of angles available to be adjusted.
<4>
Angle shift sign (30°,
40°, 50°)
Matches with the biopsy angle
(30°, 40°, 50°).
<5> Angle pinch nut Used for fixing the angle lock at a chosen angle.
<6> Angle block
Determines the angle of the biopsy; different
specifications of blocks can be used.
<7> Guiding block
Used for installing the needles of different
specifications, 5 types of needles are available.
Lock pin
Needle fixing nut
Needle type dial scale
Needle type
adjusting base
Groove
Clamp
Pinch nut
A
ngle pinch nut
A
ngle shift sign
A
ngle adjusting base
A
ngle block
V-shaped cover
V-shaped guiding block
Guiding
<3>
<4>
<5>
<7>
<8>
<9>
<10>
<1>
<6>
<2>
