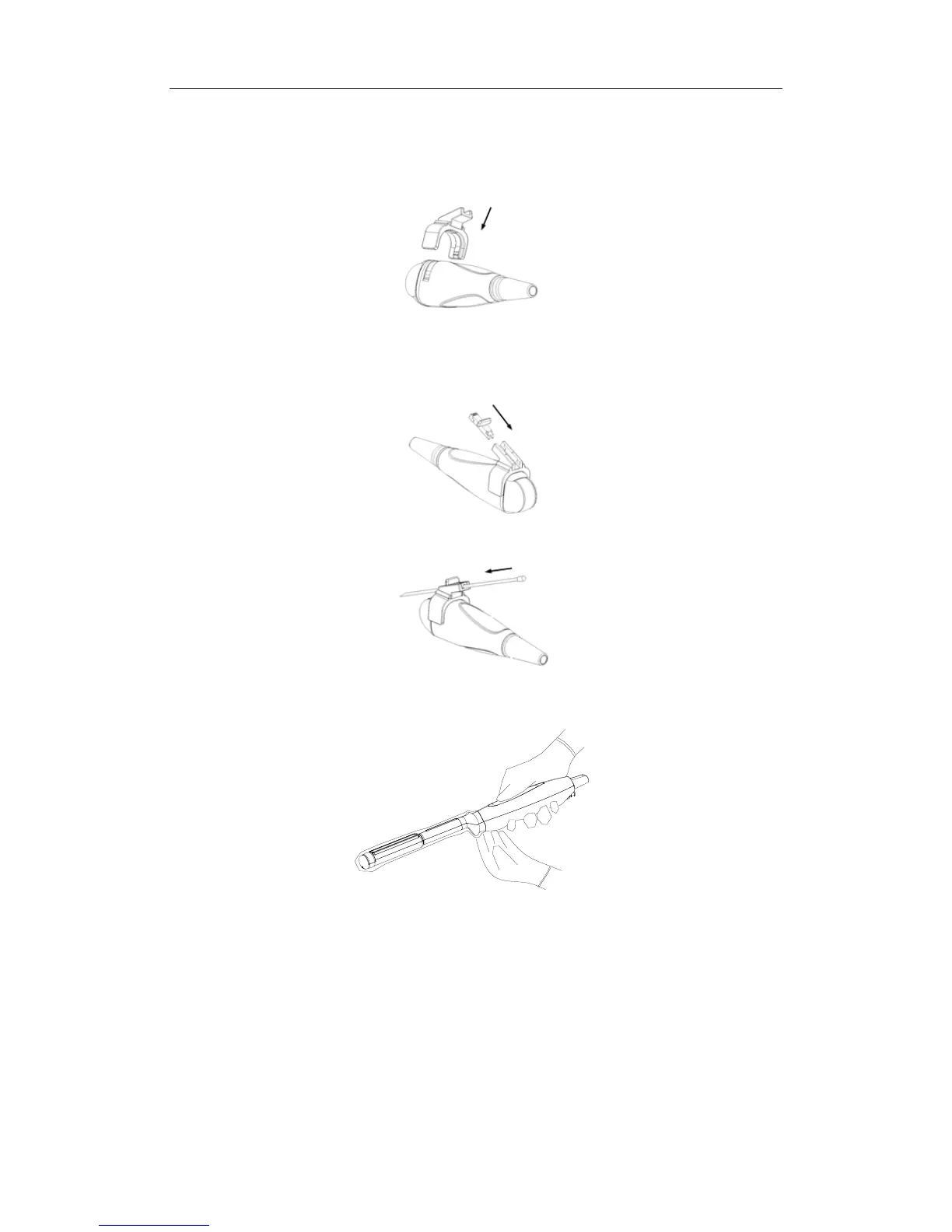

(2) Hold the transducer by one hand, select proper needle-guided bracket, and hold
it with the other hand, and align the tab of the needle-guided bracket with the
groove of the transducer, then push the needle-guided bracket along the arrow,
making the tab of the needle-guided bracket to match with the groove of the
transducer.
(3) Check manually to confirm that the needle-guided bracket is securely installed
on the transducer.
(4) Select a proper guiding block and push it into the groove above the angle block,
and clamp it tightly.
(5) Insert a biopsy needle with the same specification as that of the guiding block
into the hole of the guiding block.
NGB-009 metal/needle detachable needle-guided bracket
(1) Put on the transducer cover.
(2) Cover the support of needle-guided bracket on the transducer, making the
groove of the needle-guided bracket to match with the tab of the transducer. Set
the needle-guided bracket at the desired position, turn tightly the knob of fixing
needle-guided bracket to fix the needle-guided bracket.
