Probes and Biopsy
18-41

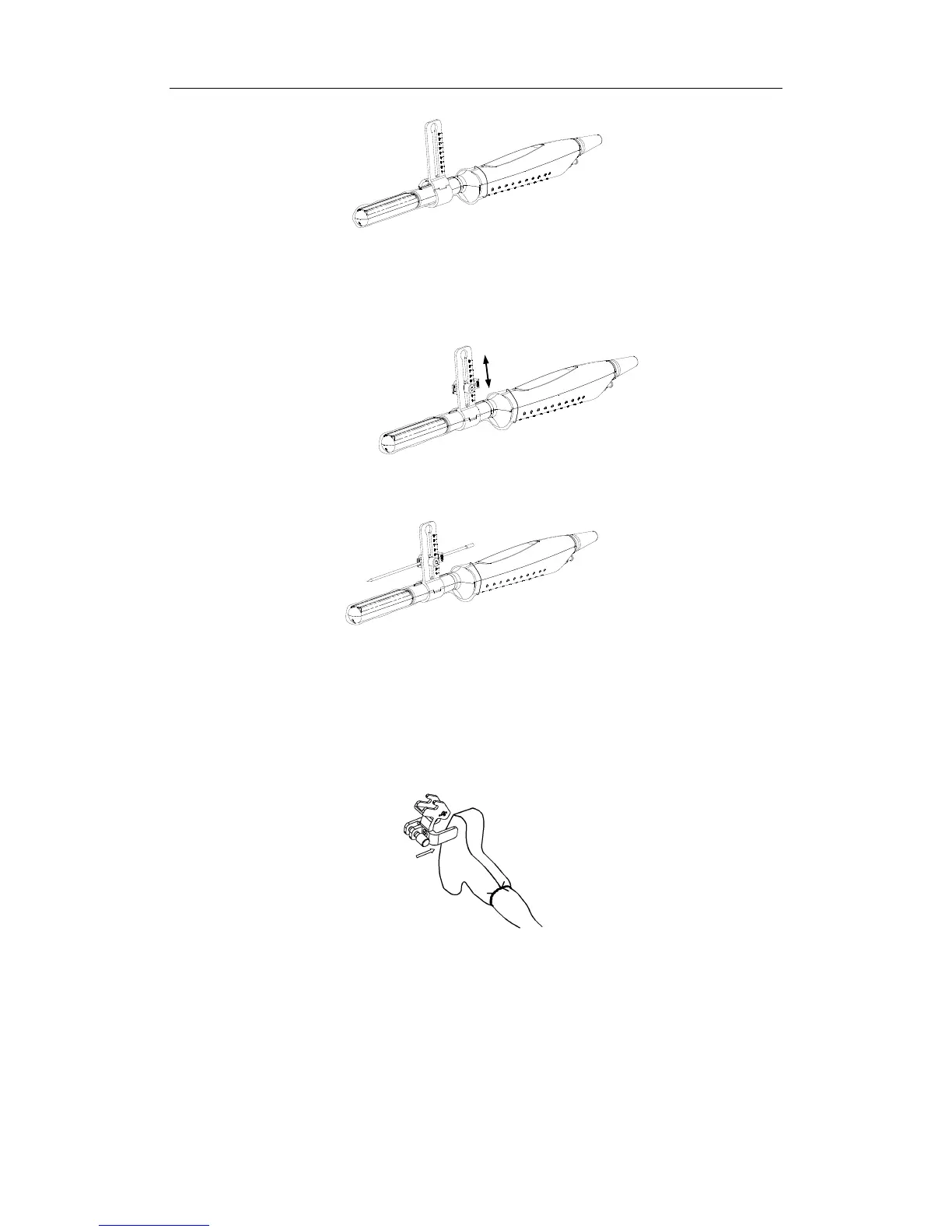

(3) Select a proper guiding block and thread the knob of fixing the guiding block
through the hole of installing guiding block, move the guiding block to the desired
position, then turn tightly the knob of fixing the guiding block to fix the guiding
block on the support of needle-guided bracket.
(4) Insert a biopsy needle with the same specification as that of the guiding block
into the hole of the guiding block and turn tightly the knob of fixing the needle.
NGB-010 metal/needle detachable needle-guided bracket
(1) Put on the probe cover.
(2) Hold the probe by one hand, select proper needle-guided bracket, and hold it
with the other hand, and align the grooves of the needle-guided bracket with the
tabs of the probe, then push the needle-guided bracket forward, making the
grooves of the needle-guided bracket to match with the tabs of the probe. Set the
needle-guided bracket at the desired position, turn tightly the knob of fixing
needle-guided bracket to fix the needle-guided bracket.
(3) Check manually to confirm the needle-guided bracket is securely installed on the
probe.
(4) Select a proper guiding block and push it into the groove above the support of
needle-guided bracket, then turn tightly the knob of fixing the guiding block to fix
the guiding block on the support of needle-guided bracket.
