DICOM Services
If all the DICOM presets on the DICOM Service Preset screen are completed, you are
ready for the Storage, Print, Worklist (HL7 Query), MPPS, Storage Commitment and
Query/Retrieve applications.
DICOM STORAGE
DICOM Storage is used to send images (single-frame or multi-frame) or structured
report to the DICOM storage server for storage.
Follow the procedures below when setting DICOM storage.
Send images on Archive/Review/main screens (Thumbnail area)
(1) Select images
Press <Archive> to enter the Archive page. Click on a patient or an exam record
in the list to select it. Thumbnails are displayed in the thumbnail area in the lower
part of the screen, and then click to select a thumbnail or the cine. Or, select an
exam or exams from the patient list (there should be images for this exam).
Press <Current Exam> to enter the Review screen. Click to select a thumbnail or
the cine. (press the left or right <Set> key to choose more).
On the main screen, select a thumbnail or the cine.

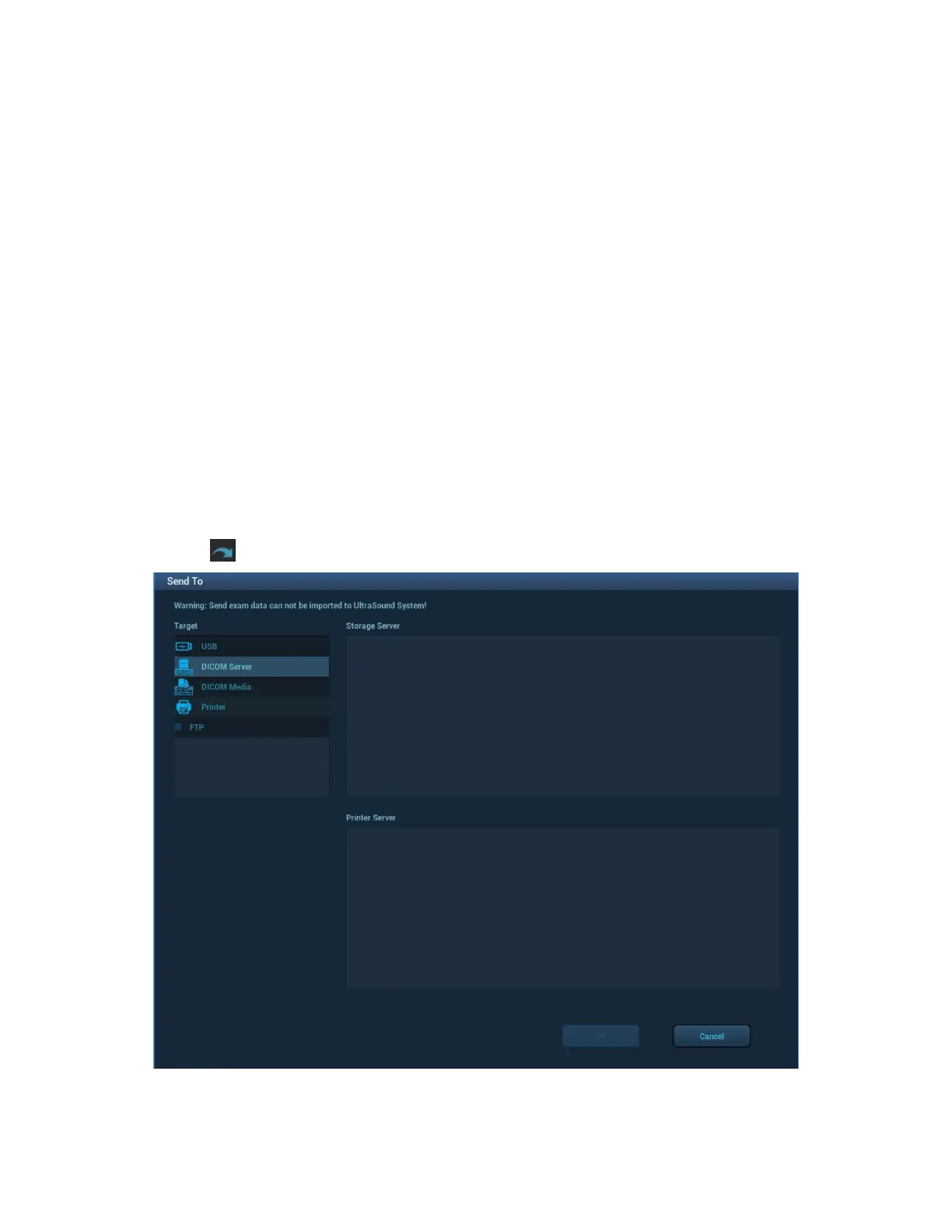

(2) Click in the top-right part or [Send Exam] to bring up the following dialog box.
