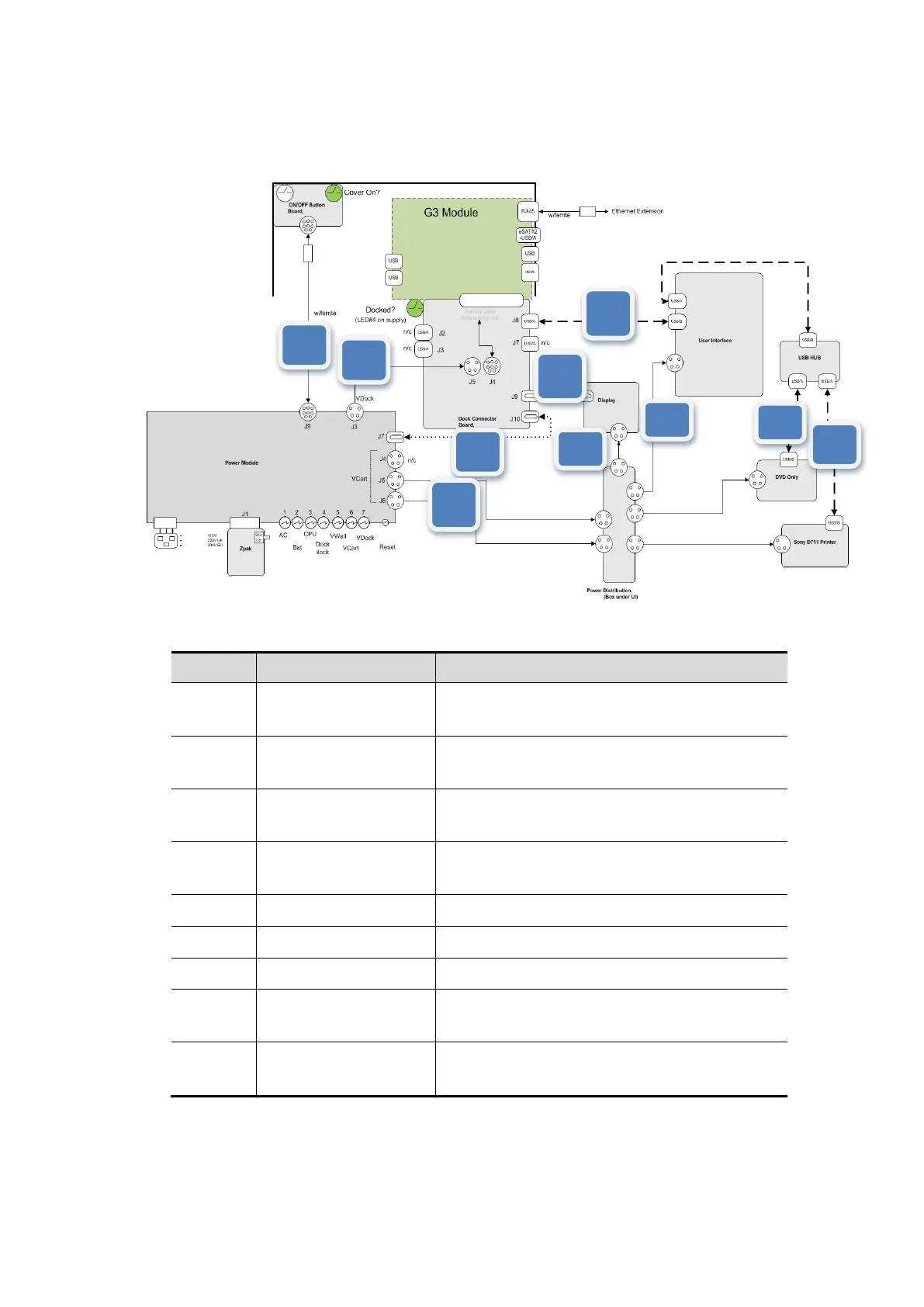

Internal Cabling
Number
Part number
Description
47.
009-004183-00
Cable, Pwr Module to Dock Bd, Pwr,
ZS3
48.
009-004181-00
Cable, Pwr Module to Dock Bd, Comm,
ZS3
49.
009-004187-00
Cable, Pwr Module to On/Off, Comm,
ZS3
50.
009-004184-00
Cable, Pwr Module to Pwr Dist Bd
(PDB), Pwr ZS3 (2)
51.
009-004182-00
Cable, Dock Bd to Display, Video, ZS3
52.
009-004179-00
Cable, Dock Bd to UI, Comm, ZS3
53.
009-006119-01
Cable, UI to Printer, Video, ZS3
54.
009-005933-00
Cable, Pwr Dist Bd (PDB) to Display,
Pwr, ZS3
55.
009-004188-00
Cable, Pwr Dist Bd (PDB) to UI, Pwr,
ZS3
55
54
51
52
47
49
48
50
53
56
