Mindray Zonare ZS3 Service Manual

ZS3 Service Manual Page 255 of 295
Dock Module - Removal/Replacement
Required Parts
 P/N: 85019-00 Assy, Dock Module
Required Tools/Equipment
13. 4mm Allen Head Wrench
Overview of Procedure
14. Remove Module
15. Open Cosmetics (for chassis access)
16. Remove / Replace Dock Board
17. System Verification
General Disassembly:
1. Ensure the system is powered “OFF”.

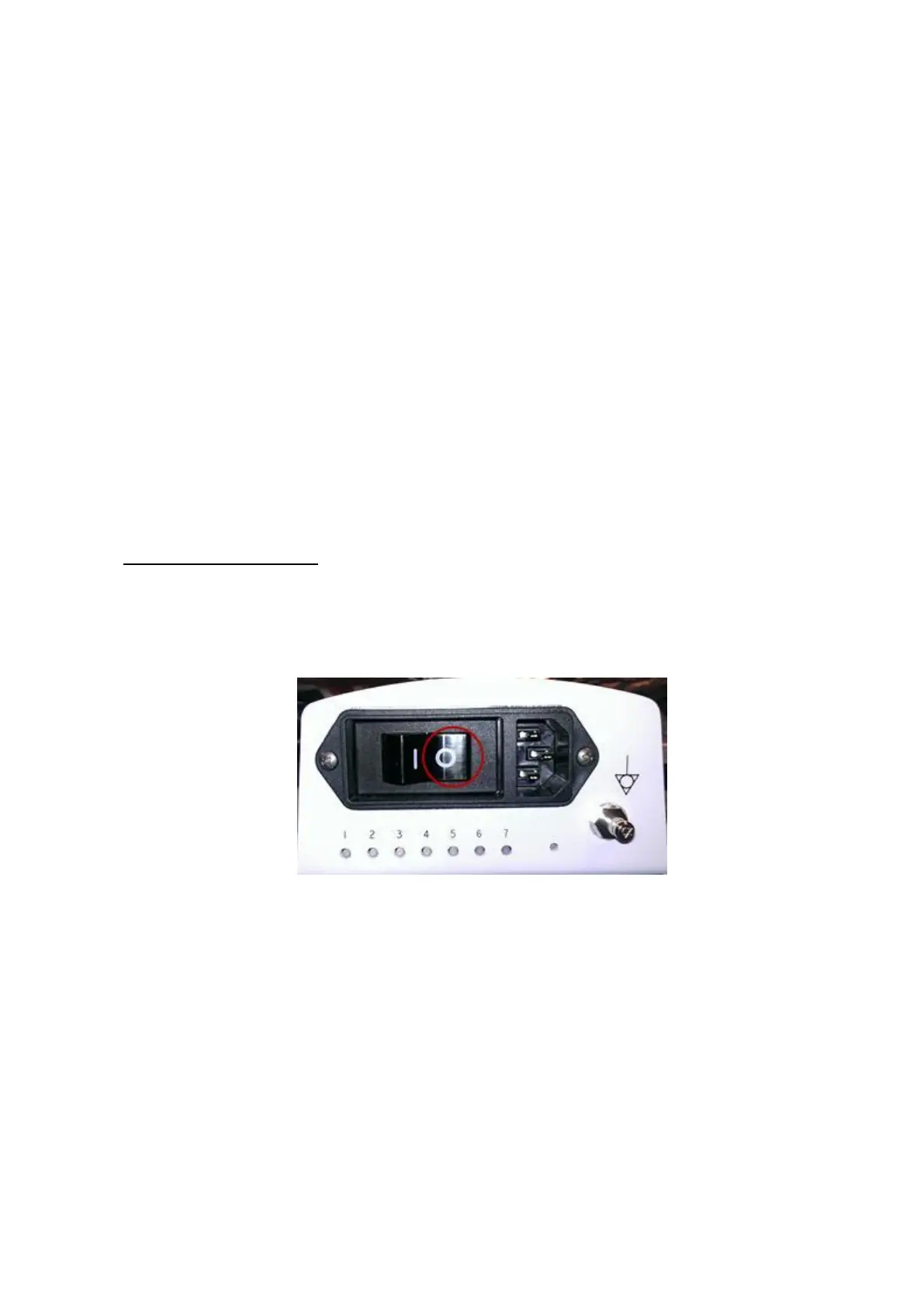

2. Place AC circuit breaker, located at the rear of the system, in the “0” (OFF)
position.
Figure 19.46-ZS3
3. Disconnect the main AC power cord from the rear of the system or unplug from
the wall source.
4. The plastic covering and ZS3 Module should already be removed.
Note: If the plastic covering and ZS3 Module are not yet removed, see "ZS3
Module – Removal/Replacement" to do so.
5. Firmly pushing the hooked connection at the top of the Dock Board towards the
back of the cart. Once the hook is free, the plastic cover can slide up.
