Mindray Zonare ZS3 Service Manual

ZS3 Service Manual Page 144 of 295
Pedal Footswitch
A remote 2-pedal footswitch is optionally available for connection to the system via
any available USB port. The left and right pedals may be individually configured to one
of forty-four possibilities including Print and freeze.
The two normal user interface buttons/functions used for the optional footswitch
control; are as follows:
o Print
o Freeze
The footswitch connects to the system using a USB port on the rear of the Cart, and is
a “plug-n-play” device that does not require any menu configuration on the system to
operate.
Ultrasound Gel Warmer
For newly installed gel warmer:
Tools: screw driver
1. Drop telescoping cover to paste 70-80mm length of PVC electric insulation tape
on the edge of the Stem weldment.

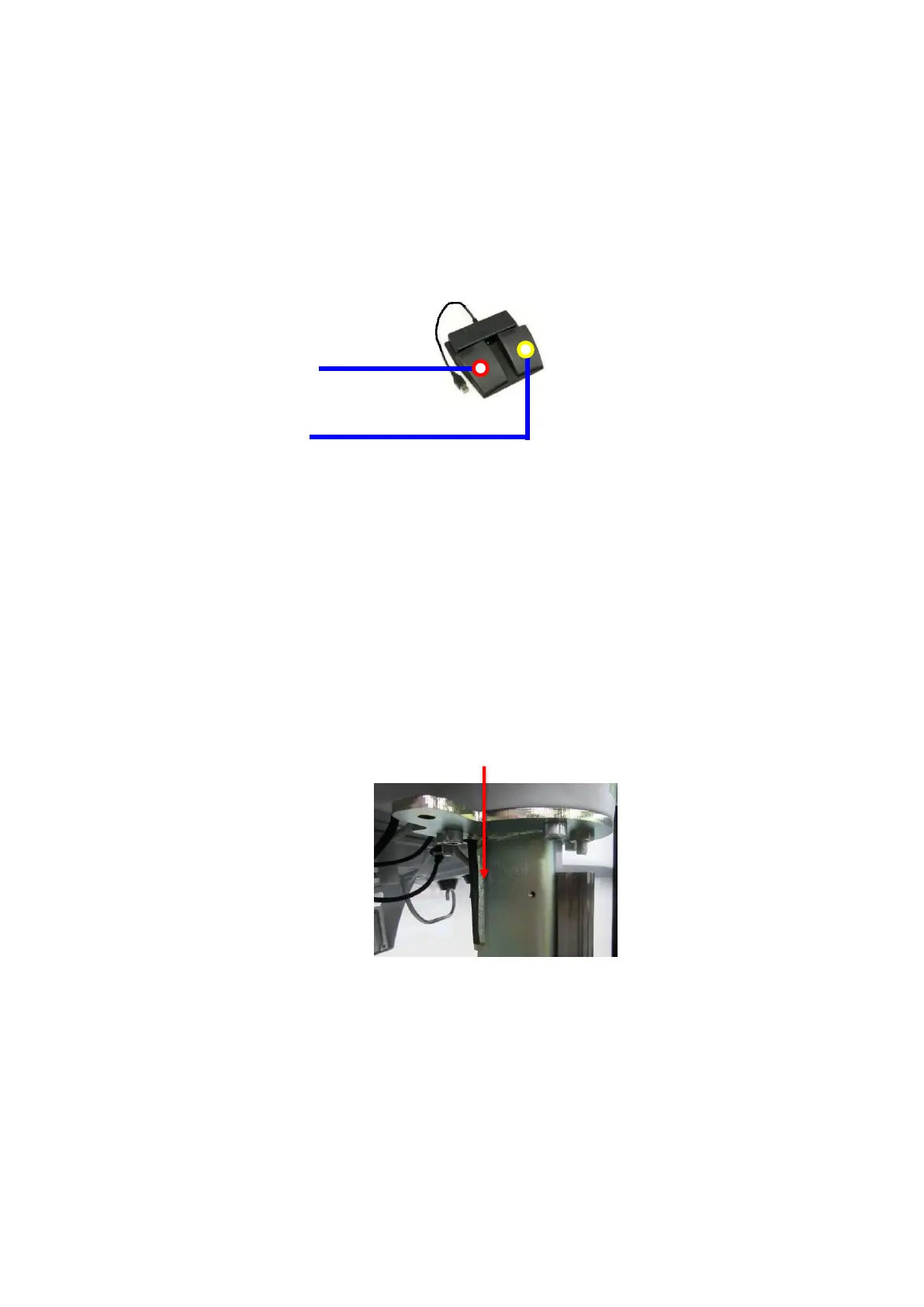

Figure 14.9-ZS3
2. Use a screwdriver to install the 1 Pan head screw M4X12 that attach the Gel
warmer cable to the Stem weldment
PVC electric insulation tape
