You can use the same tools to replace the old casters with new ones in reverse
order.

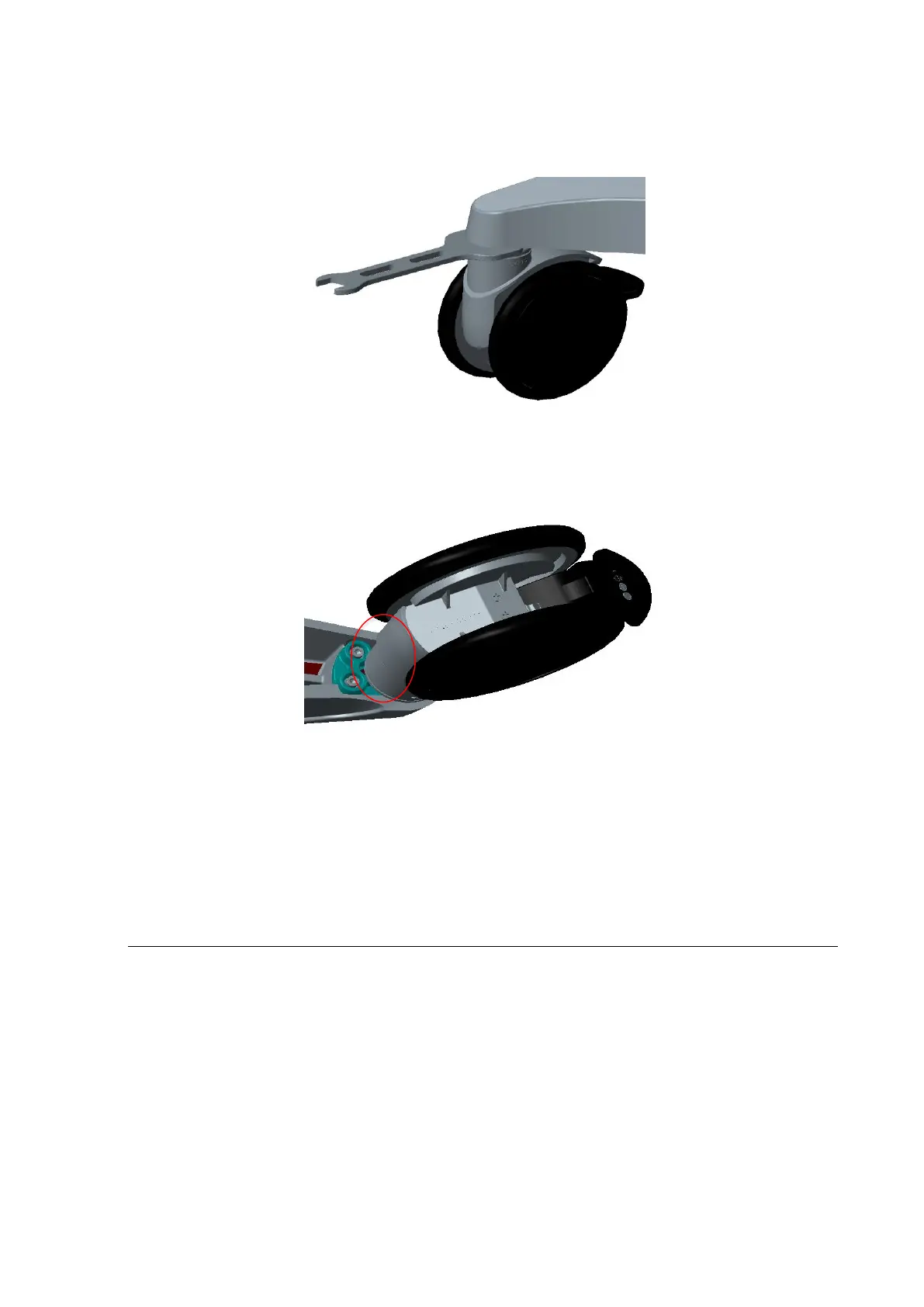

Figure 19.7-ZS3
Total locking caster removal and replacement
Figure 19.8-ZS3
Direction locking caster removal and replacement
8. Once installation is complete, Tilt the Cart back up onto its wheels, and release the
brake mechanism.
9. Verify smooth operation and pivoting of the Cart through all movements.
10. Verify that the brake functions correctly and that each caster locks and the brake
functions when it is set.
19” Display – Removal/Replacement
Required Parts
 88015-00 Display Assy, ZS3
 34518-00 Overlay, Display, ZS3
